Description

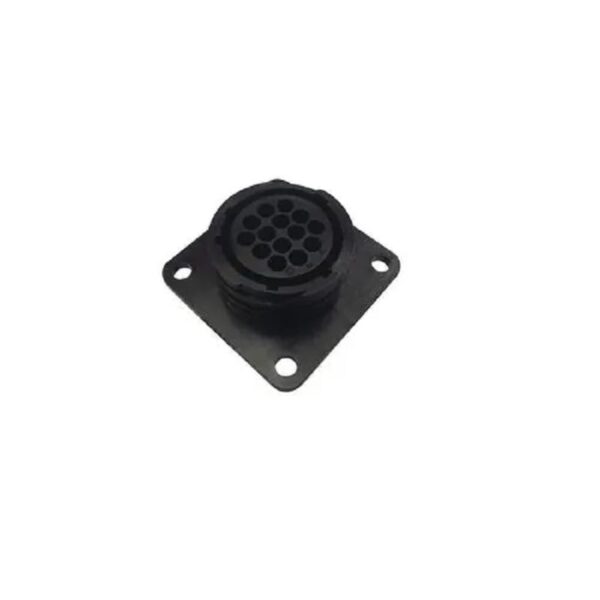

The 206043-4-CIRCULAR CONNECTOR RECEPTACLE I/O Circular Connector with black 94V-0 rated thermoplastic housing. The receptacle has a keyed mating alignment and threaded coupling mating retention. The CPC connector is UL94V-0 rated and made of stabilized, heat-resistant, self-extinguishing thermoplastic material. It has quick connect/disconnect capability with thread assist, and positive detent coupling. It has a built-in pin and socket protection. Polarized for proper mating of connector halves.

1. Connector Type: Receptacle Housing
2. Type: For Female Sockets
3. Number of Positions: 14
4. Shell Size – Insert: 17-14
5. Contact Type: Crimp
6. Contact Size: 16
7. Mounting Type: Panel Mount
8. Mounting Feature: Flange
9. Fastening Type: Threaded
10. Orientation: A
11. Shell Material: Polyamide (PA), Nylon
12. Housing Color: Black
13. Ingress Protection: Environment Resistant
14. Material Flammability Rating: UL94 V-0
15. Insert Material: Thermoplastic
16. Contact Shape: Circular
17. Operating Temperature: -55°C ~ 105°C

Packages Includes:

1 x 206043-4-CIRCULAR CONNECTOR RECEPTACLE
