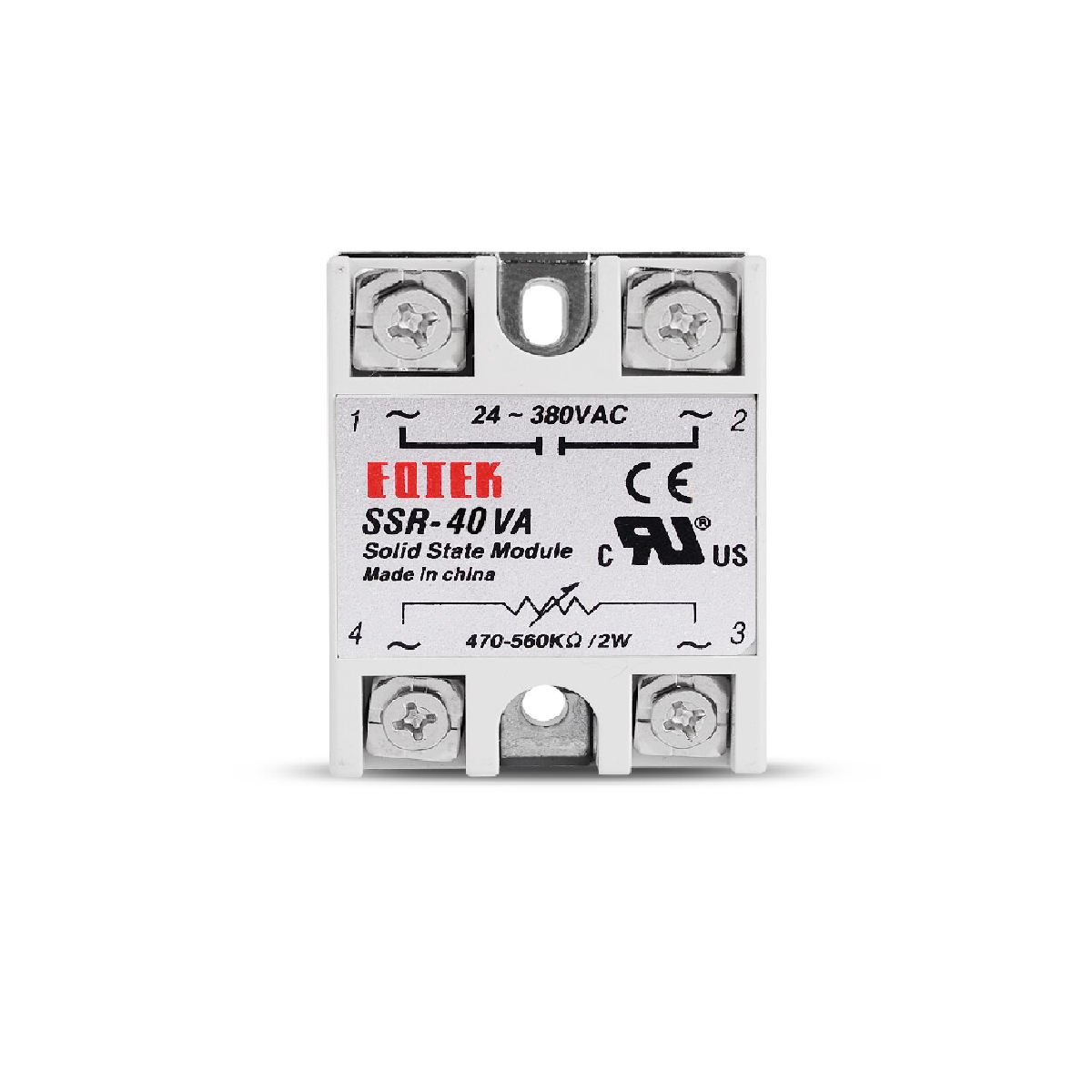

24-380V SSR-40VA Solid State Voltage Regulator

SKU: rz24317377
In Stock


  1. Product: Voltage Regulator
  2. Dielectric Strength: Over 2.5kVA / 1 min
  3. Trigger resistance: 470-560KΩ
  4. Switching Voltage (VAC):24-380
  5. Operating Temperature Range (C):-20 to 85
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free


This is an   SSR-40VA Solid State Relay Module 470-560KΩ/24-380VAC 25VA. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

In this Particular SSR, the power output is controlled by the trigger angle of the triac with the variable resistor of 470-560KΩ. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.


  1. Long service life and high reliability
  2. Reduced electromagnetic interference
  3. Highly reliable, compact size designed to offer users maximum simplicity.

Package Includes:

1 x 24-380V SSR-40VA Solid State Voltage Regulator

Additional information

Product Type

Voltage Regulator

Dielectric Strength

Over 2.5kVA / 1 min

Trigger resistance


Input Voltage (V)


Operating Temperature (°C)

-20 to 85 °C



Length (mm)


Width (mm)


Height (mm)


Weight (gm)
