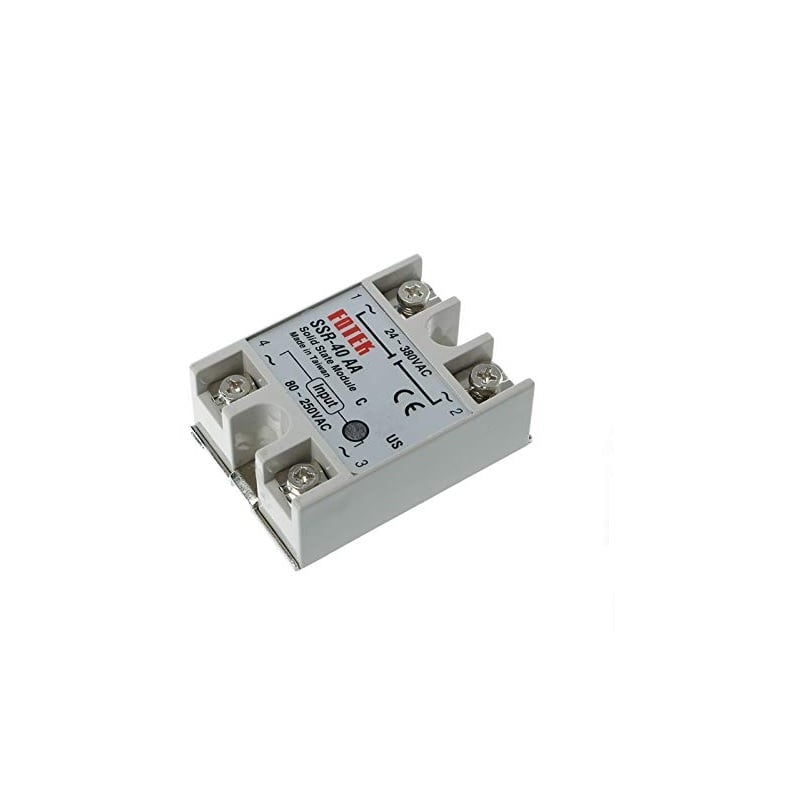

80-250V SSR-40AA Solid State Relay
₹366.00
- Rated Load Current (mA):40A
- Dielectric Strength: Over 2.5kVA / 1 min
- Trigger Voltage (VAC):80-250
- Switching Voltage (VAC):24-380@100A
- Operating Temperature Range (C):-20 to 85
Did you like this product? Add to favorites now and follow the product.
+91-7231900002 Connect on Whatsapp
Description
This is AC To AC SSR-40AA Solid State Relay Module 80-250VAC/24-380VAC 100A. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load.
The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.
This particular SSR can switch current loads of up to 100A with an 80-250VAC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
Package Includes:
1 x 80-250V SSR-40AA Solid State Relay
Additional information
Product Type | Solid State Relay |
---|---|
Rated Load Current (mA) | 40A |
Dielectric Strength | Over 2.5kVA / 1 min |
Trigger Voltage (VAC) | 80-250 |
Switching Voltage (VAC) | 24-380@100A |
Operating Temperature Range (C) | -20 to 85 |
Material | ABS |
Length (mm) | 45.5 |
Width (mm) | 62.5 |
Height (mm) | 24 |
Weight (gm) | 93 |
