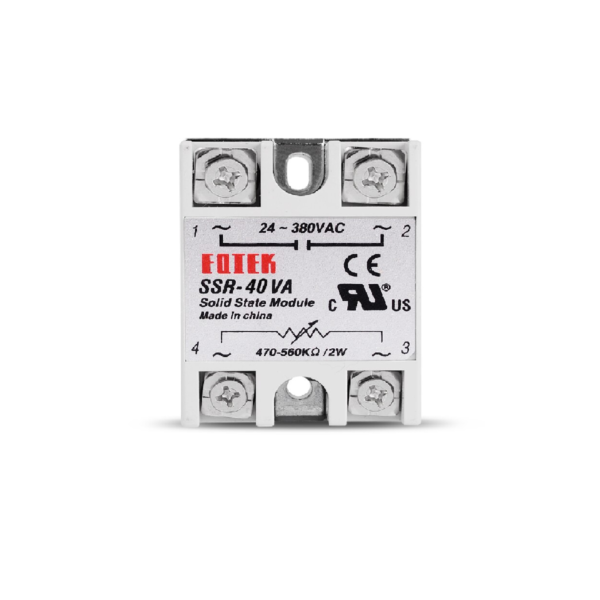

24-380V SSR-40VA Solid State Voltage Regulator 434.67493.94 (Including tax)

5-200V SSR-10DD Solid State Relay

492.59 (Including tax)

  1. Rated Load Current (mA):100A
  2. Dielectric Strength:Over 2.5kVA / 1 min
  3. Trigger Voltage (VDC):3-32VDC
  4. Switching Voltage (VDC):5-200
  5. Operating Temperature Range (C):-20 to 85

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%467.96 (Including tax)
11 - 208%453.17 (Including tax)
21 - 4010%443.33 (Including tax)
41 - 10012%433.48 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

19 People watching this product now!
SKU: rz24317362 Category:
Description

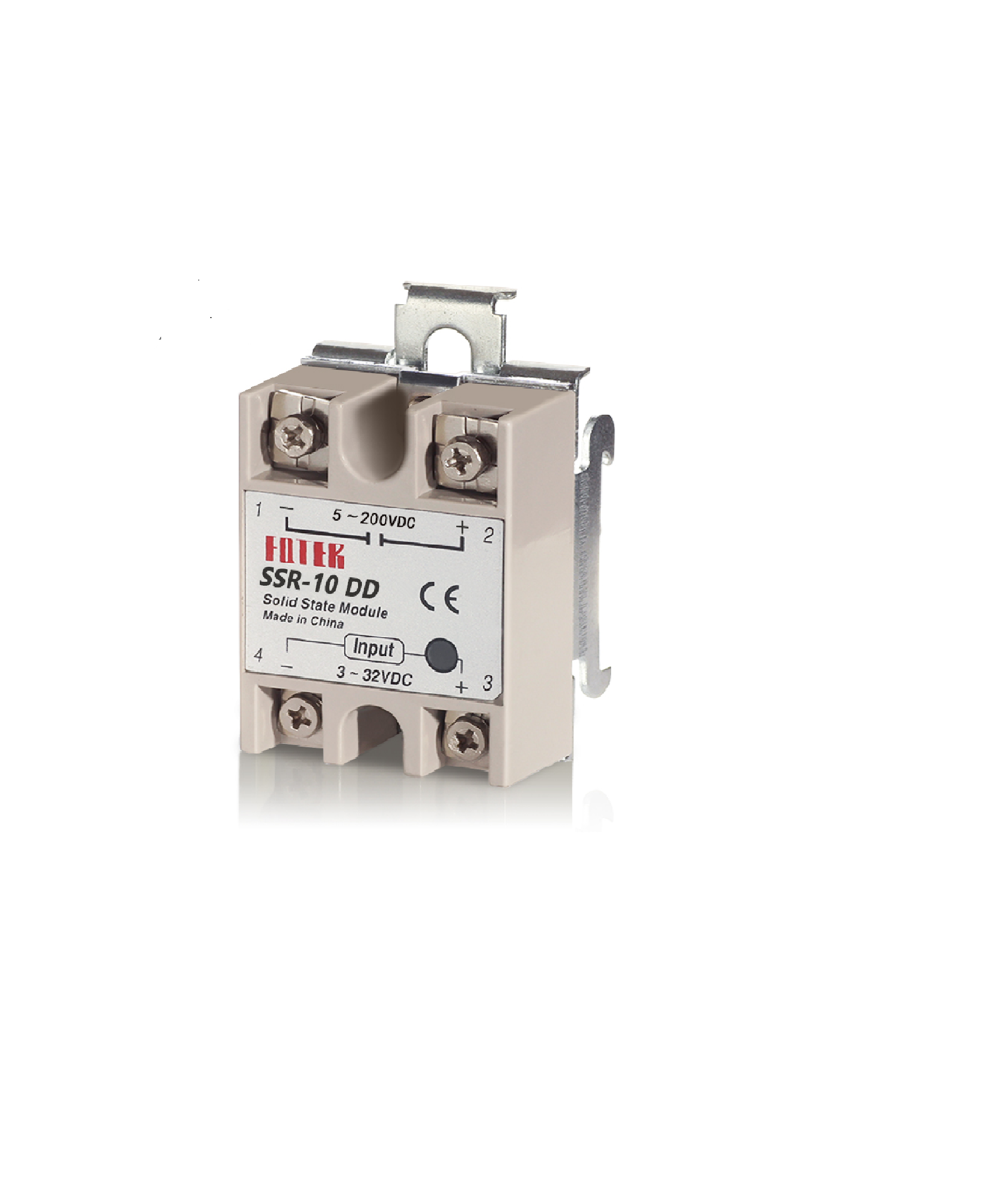

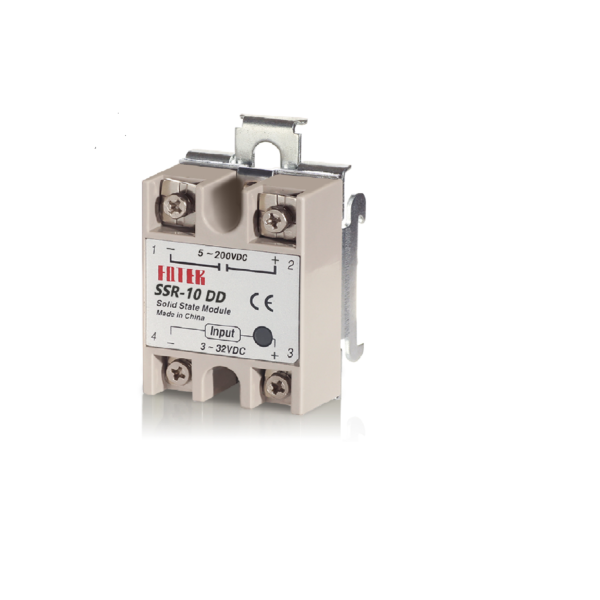

This is DC To DC SSR-10DD Solid State Relay Module 3-32VDC/5-200VDC 10A. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

This particular SSR can switch current loads of up to 10A with a 5-200VDC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.


Features:

  1. Long service life and high reliability
  2. Reduced electromagnetic interference
  3. Highly reliable, compact size designed to offer users maximum simplicity.

Specifications:

  1. Rated Load Current (mA):100A
  2. Dielectric Strength:Over 2.5kVA / 1 min
  3. Trigger Voltage (VDC):3-32VDC
  4. Switching Voltage (VDC):5-200
  5. Operating Temperature Range (C):-20 to 85
  6. Material:ABS
  7. Length (mm):45.5
  8. Width (mm):62.5
  9. Height (mm):24
  10. Weight (gm):93

Package Includes:

1 x 5-200V SSR-10DD Solid State Relay
