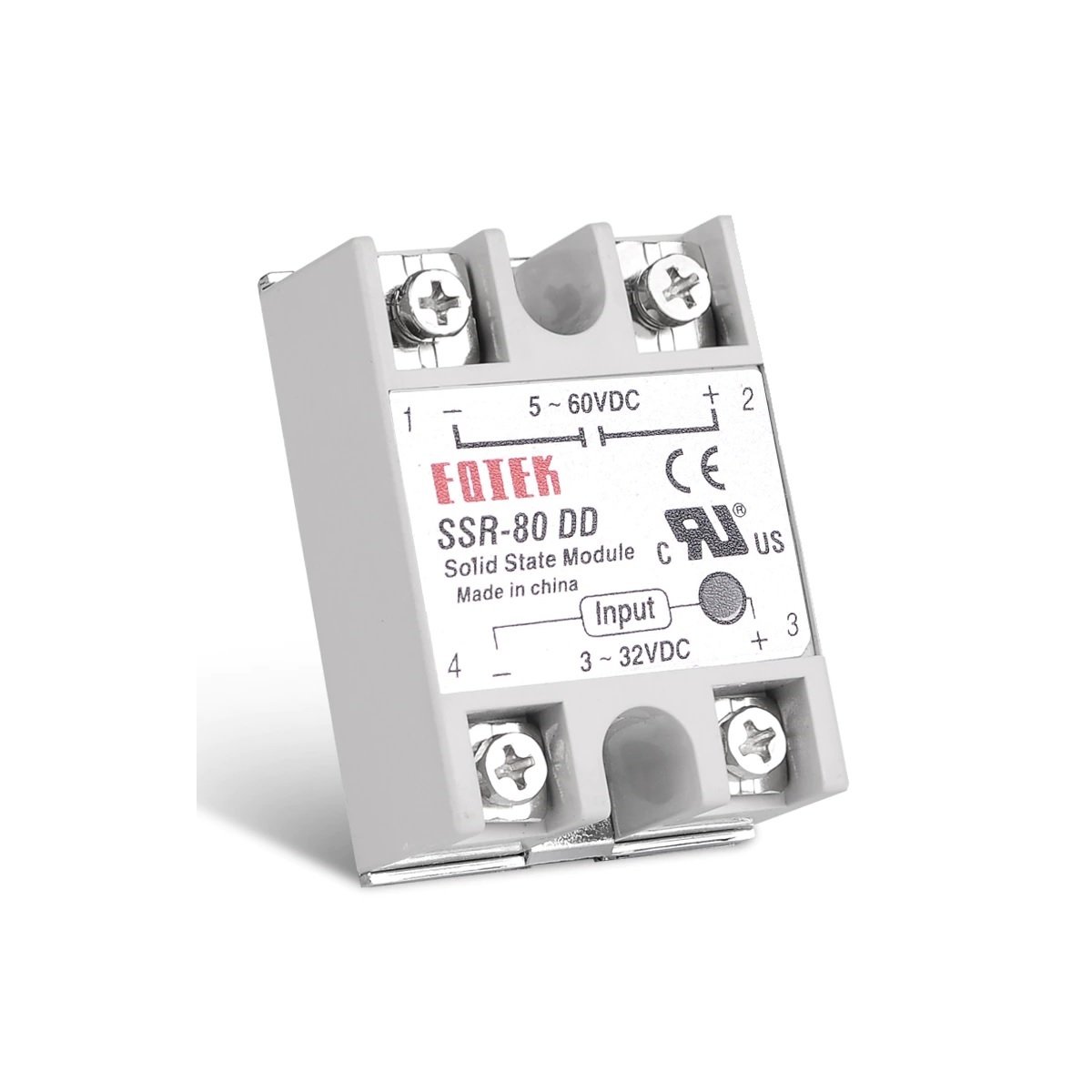

5-60V SSR-80DD Solid State Relay

SKU: rz24317342
In Stock

655.00

  1. Rated Load Current (mA):100A
  2. Dielectric Strength: Over 2.5kVA / 1 min
  3. Trigger Voltage (VDC):3-32VDC
  4. Switching Voltage (VDC):5-60
  5. Operating Temperature Range (C):-20 to 85
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

This is DC To DC SSR-80DD Solid State Relay Module 3-32VDC/5-60VDC 10A. A solid-state relay (SSR) is an electronic switch, which, unlike an electromechanical relay, contains no moving parts. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR. A photo-coupled SSR is controlled by a low voltage signal which is isolated optically from the load.

The control signal in a photo-coupled SSR typically energizes an LED which activates a photo-sensitive diode. The diode turns on a back-to-back thyristor, silicon-controlled rectifier, or MOSFET transistor to switch the load.

This particular SSR can switch current loads of up to 10A with a 5-60VDC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.


Features:

  1. Long service life and high reliability
  2. Reduced electromagnetic interference
  3. Highly reliable, compact size designed to offer users maximum simplicity.

Package Includes:

1 x 5-60V SSR-80DD Solid State Relay

Additional information

Product Type

Solid State Relay

Rated Load Current (mA)

100A

Dielectric Strength

Over 2.5kVA / 1 min

Trigger Voltage (VDC)

3-32VDC

Switching Voltage (VDC)

5-60

Operating Temperature (°C)

-20 to 85 °C

Material

ABS

Length (mm)

45.5

Width (mm)

62.5

Height (mm)

24

Weight (gm)

93
