Product details

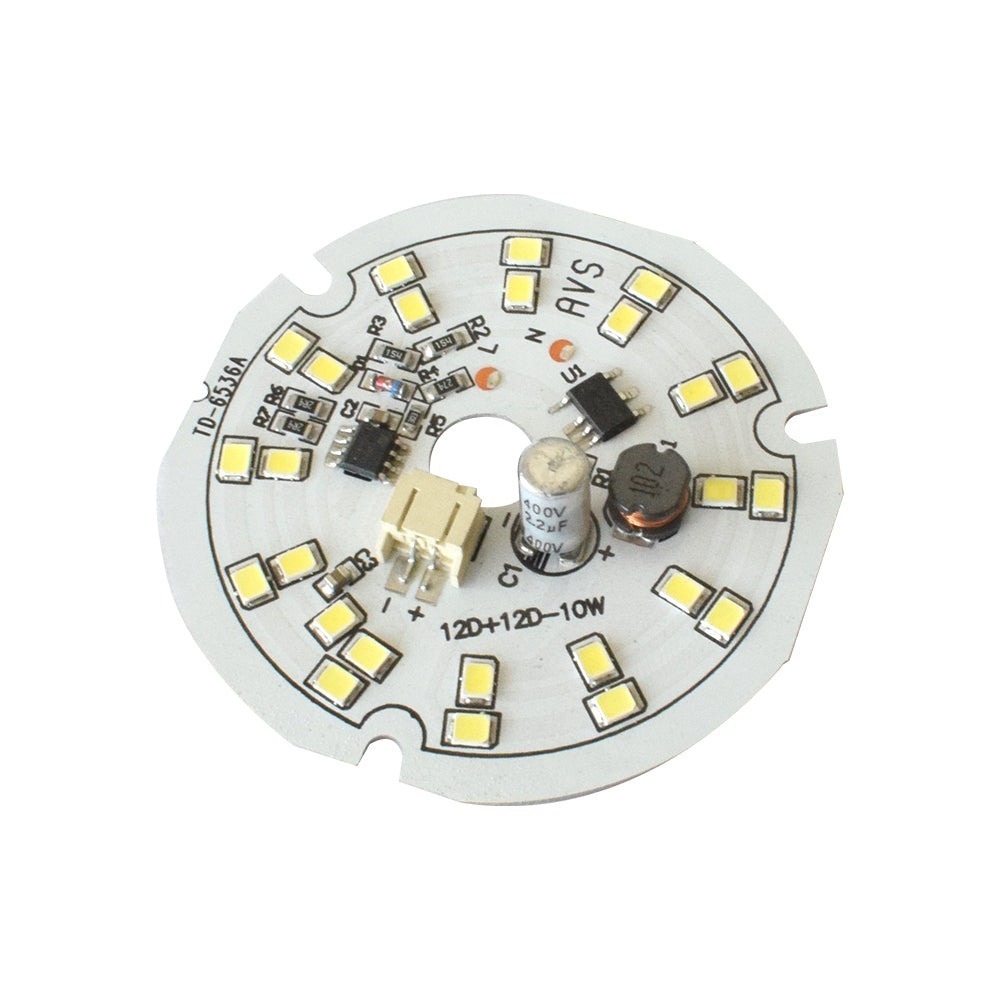

It’s a AC/DC Inverter LED Bulb White 64mm DOB LED PCB, Its operating voltage is 220VAC, and the power of this LED is 10W, the no. of LEDs is 25; its colour is white. This PCB board has a total of two IC. SP1696 is eight pins LED driver IC used to drive LED. SDH711ARH is a high-accuracy LED constant current driver IC; it is applicable to a non-isolated buck LED constant current power system with a full AC input voltage range of 85VAC~265VAC. It has a supercapacitor to store energy temporarily 2.2microfarad 400V. It has a connector and inductor too.
Applications:
- Headlight
- Street lights
Features:
- Direct AC Source
- It has a total of 25 LED
- It does not need any external driver circuit
- It has an inbuilt driver IC
Specifications:
| Type | DOB Inverter LED PCB |
| Input Voltage | 220VAC |
| No of LEDs | 25 |
| Colour | White |
| LED Diameter | 64mm |
| Power | 10W |
| Wire Mounting Diameter (Small hole) | 3.5mm |
| Mounting Diameter of (large Hole) | 10mm |
| Thickness | 13mm |
| Connection Point | Line and Neutral |
| No. of Connecting Point | 02 |
| Country of Origin | China |
