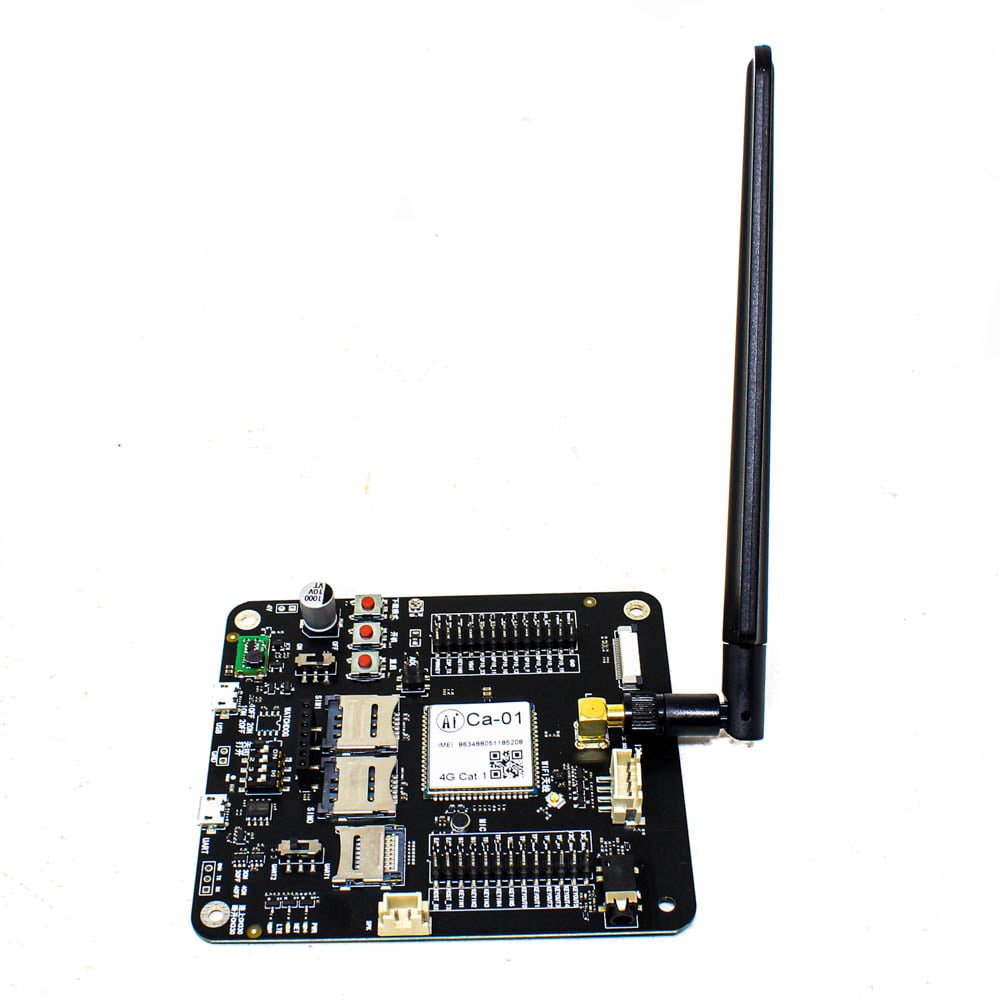

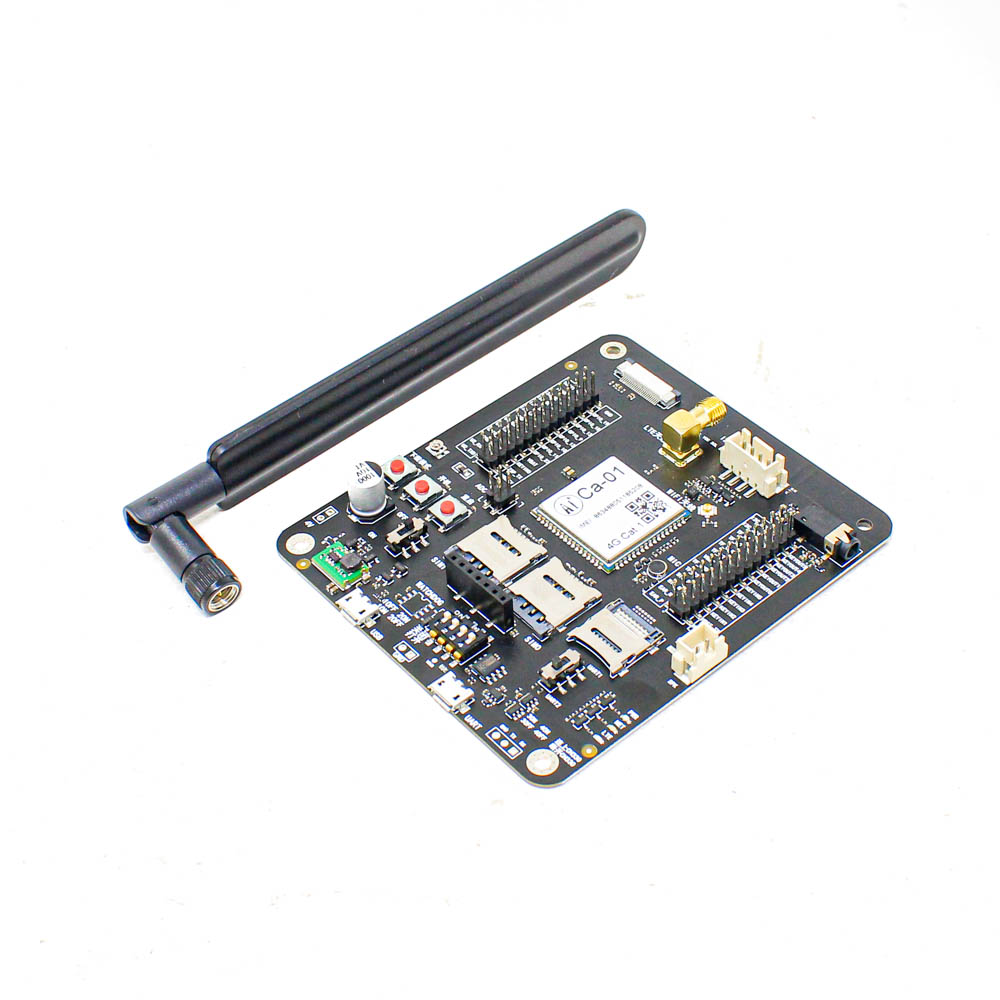

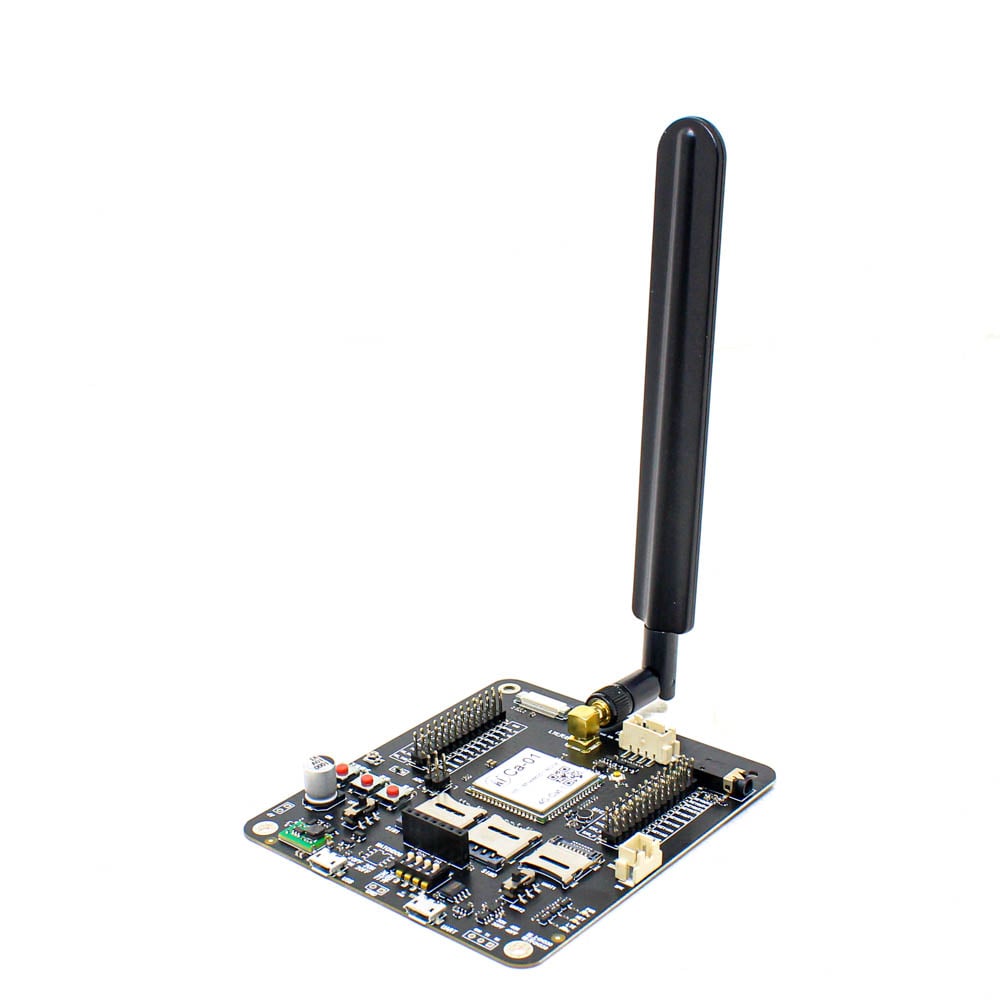

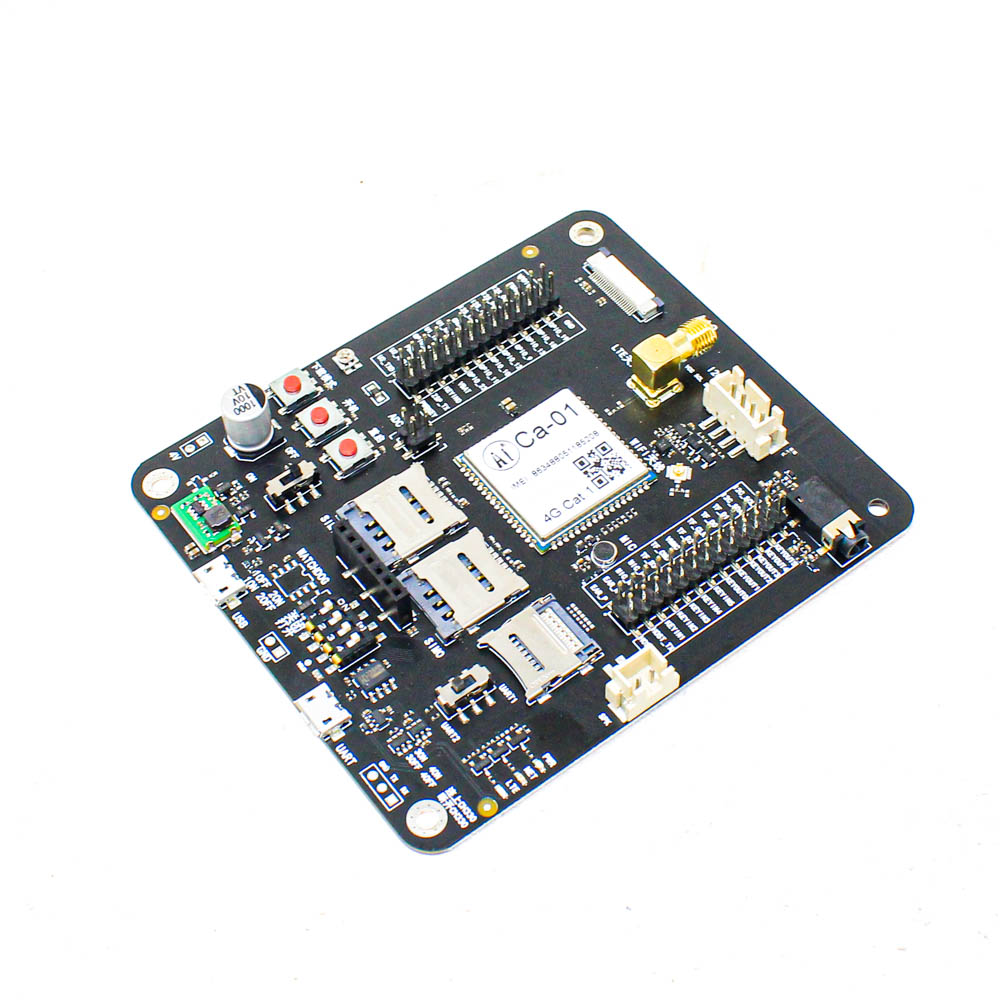

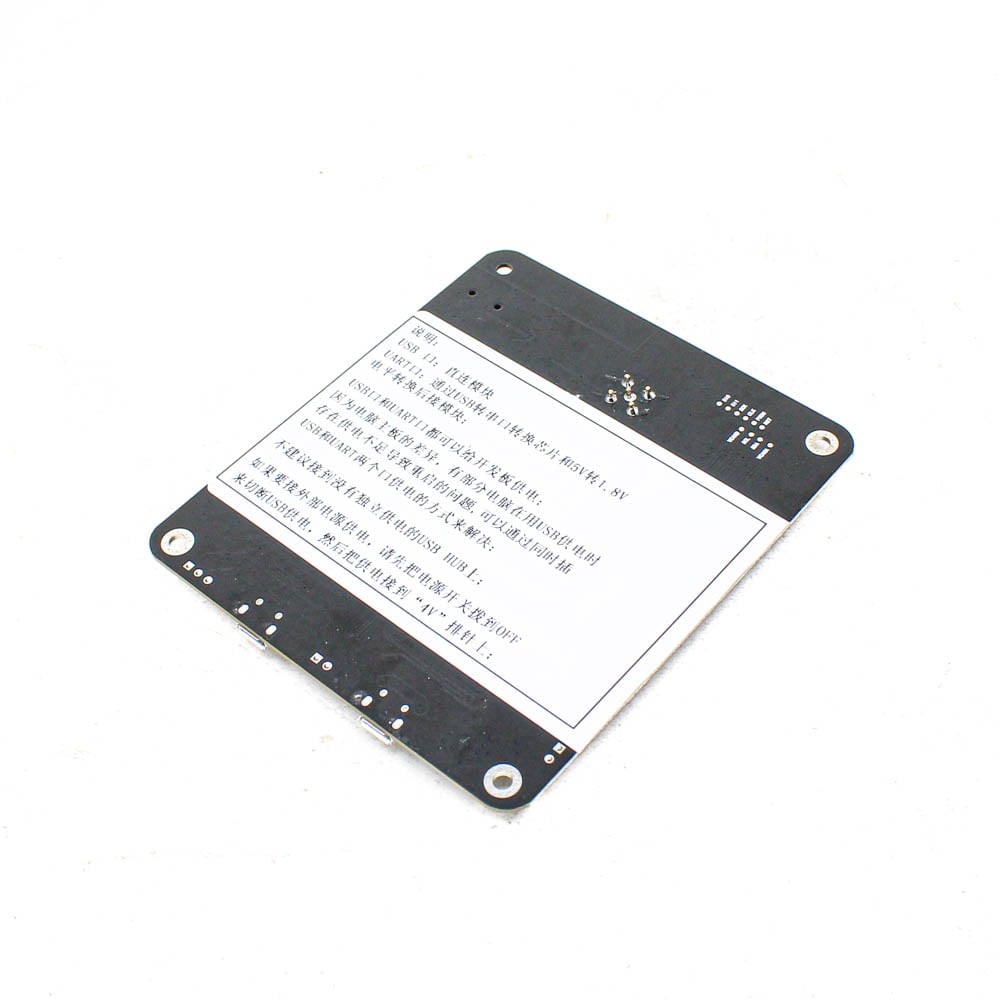

Ai-Thinker CA-01 Dev. Board

Ca-01 is an ultra-small package LTE Cat.1 bis module launched by Ai-Thinker. It adopts Unigroup’s UIS8910 platform and supports LTE 3GPP Rel.13 technology. It is a 4G full Netcom module that can adapt to different operators and products to ensure maximum flexibility in product design.

Features:

1. Support Cat.1
2. Support VoLTE
3. Support 1.4 ~ 20MHz RF bandwidth
4. LTE-TDD: uplink and downlink configuration 2
5. Maximum upstream rate 2Mbps, maximum downstream rate 8Mbps
6. LTE-TDD: uplink and downlink configuration 1
7. Maximum upstream rate 4Mbps, maximum downstream rate 6Mbps
8. Network protocol features
9. Support: TCP/UDP/PPP/FTP/HTTP/NITZCMUXINDIS/NTP/ HTTPS/
10. In development: SMTP/SMTPS/MMS/DTMF
11. USIM card interface
12. Support USIM / SIM card: 1.8V and 3V
13. USB interface
14. Compatible with USB2.0 (only supports slave mode), the data transfer rate is up to 480Mbps
15. Used for AT commands, data transmission, software debugging, software upgrade
16. USB virtual serial port driver: support USB driver under Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x and other operating systems
17. Serial port

Interface:

1. 1 USB 2.0 high speed interface (up to 480Mbps)
2. 1.8V/3.0V (U) SIM card interface
3. 1 NETLIGHT interface (NET_STATUS and NET_MODE)
4. 2 analog voice input
5. 2 analog voice output
6. 3 UART interfaces
7. 1 SPI interface
8. 1 SPI LCD interface
9. 1 SPI Camera interface
10. 1 MMC interface
11. PWRKEY (active low)
12. Support 6*6 array keyboard
13. 2 ADC interfaces
14. Electrical parameters-Output power: LTE-TDD: Class3(23dBm+1/-3dB); LTE-FDD: Class3(23dBm+-2dB);
15. General features: 3GPP E-UTRA Release 13;
16. Bandwidth: 1.4/3/5/10/15/20MHz;
17. Package: stamp hole + LGA;
18. Weight: about 2.6g;

Package Includes:

1 x Ai-Thinker CA-01 Dev. Board
