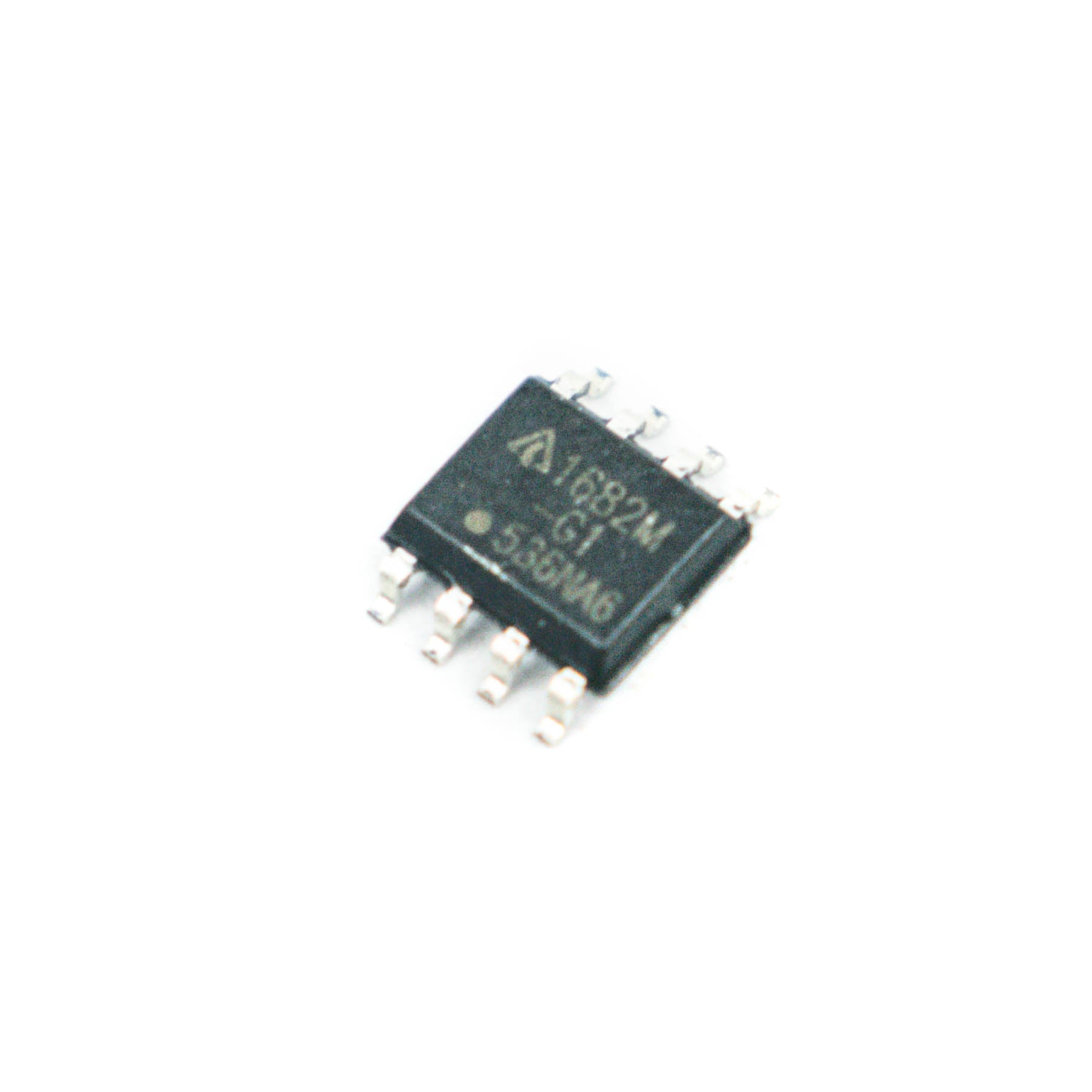

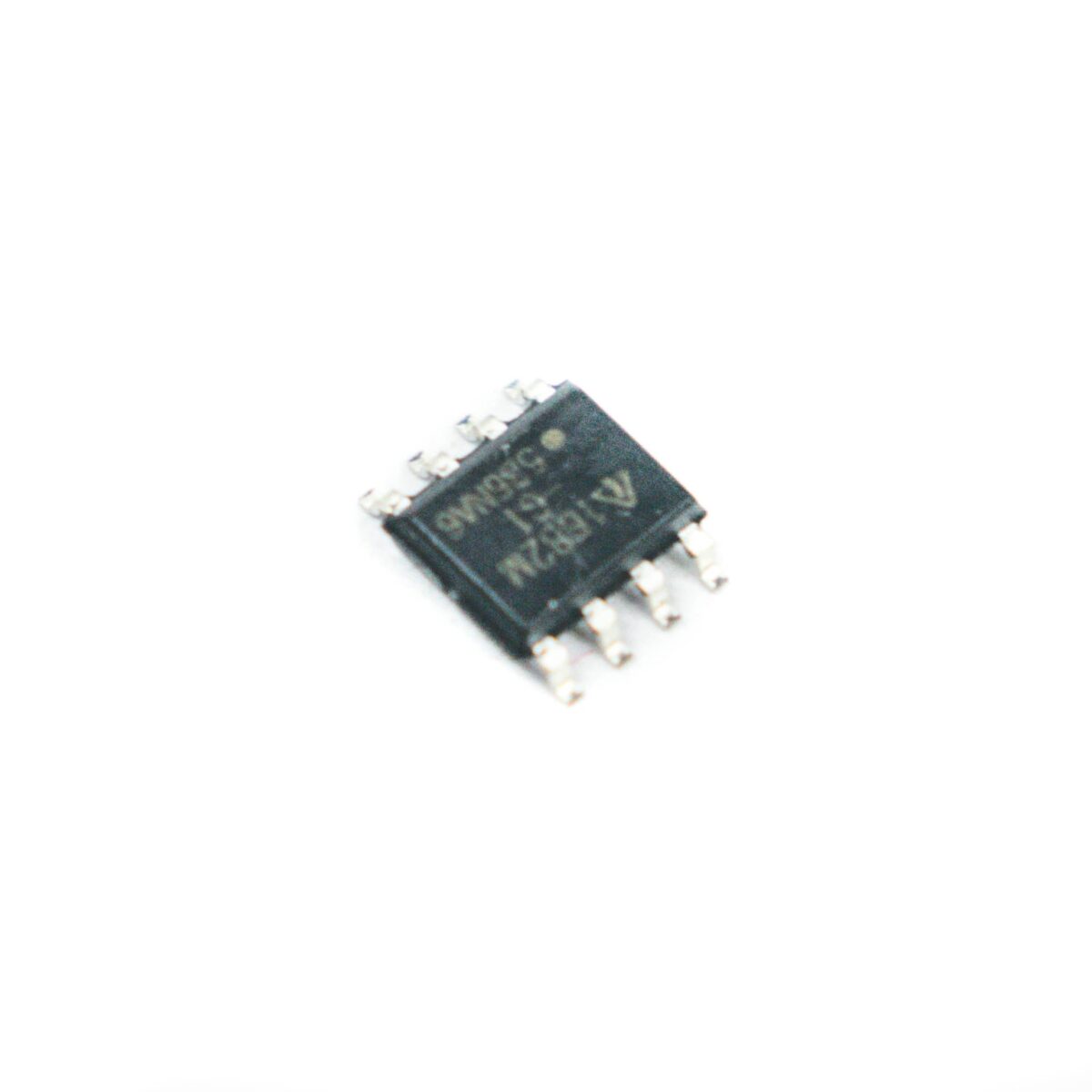

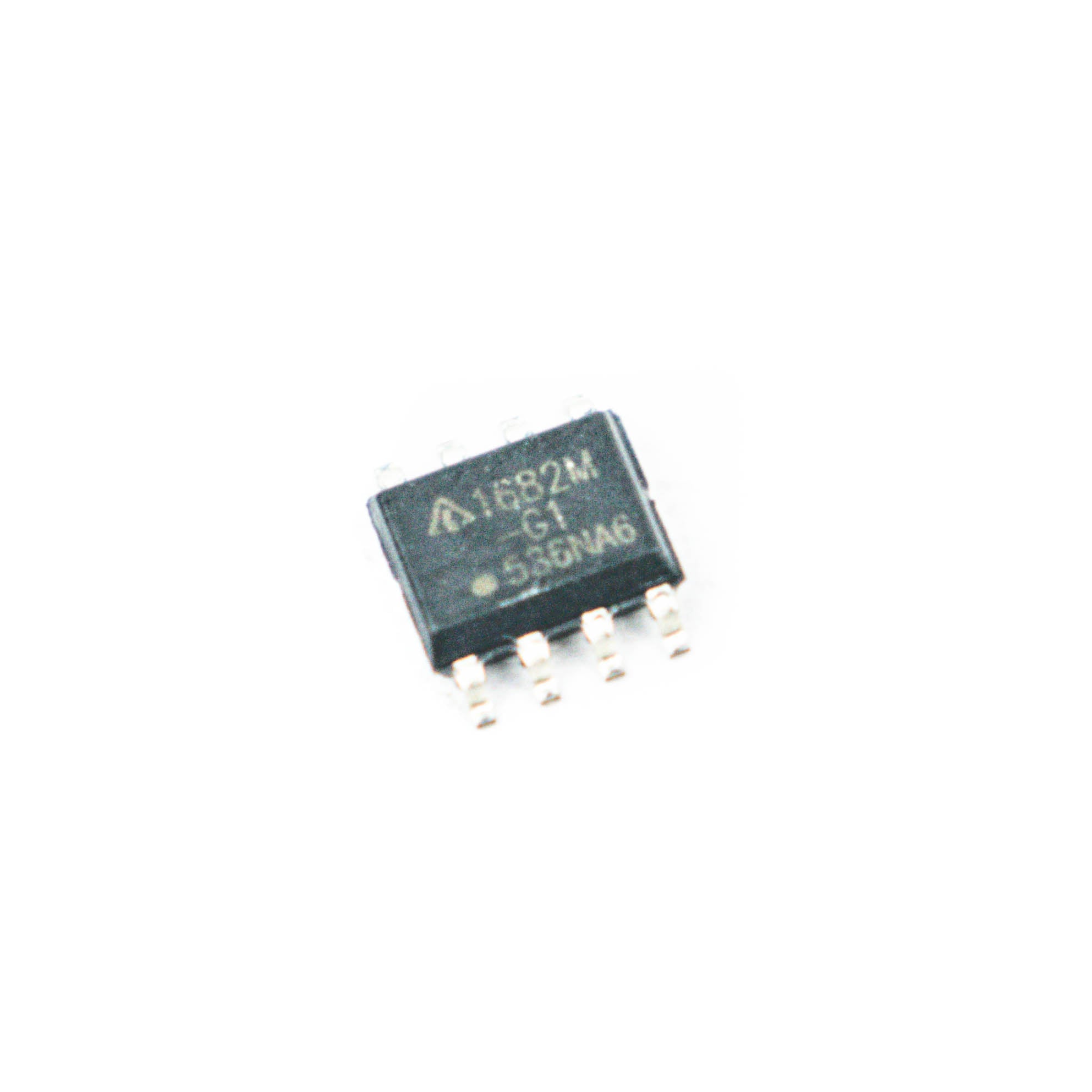

AP1682 Power Factor Controller for LED Driver

Original price was: ₹59.70.Current price is: ₹48.86. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%46.41 (Including tax)
11 - 208%44.95 (Including tax)
21 - 4010%43.96 (Including tax)
41 - 10012%42.99 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

10 People watching this product now!
Description

The AP1682 is a high performance AC/DC universal input Primary Side Regulation(primary-side regulation controls the output voltage and current precisely with the information in the primary side of the power supply only) Power Factor Controller(Power Factor Controller reduces the amount of reactive power generated by a device) for LED driver applications. The device regulates output current through Pulse Frequency Modulation (PFM) technology, resulting in a high power factor and reduced THD (Total Harmonic Distortion). Single-stage primary side regulation PFC controller for LED driver. The AP1682 eliminates the optocoupler and secondary control circuitry while also providing accurate constant current (CC) regulation. It also eliminates the requirement for loop correction circuitry while preserving stability.
Features

  • Low Start-up Current
  • Tight CC Regulation Performance for Universal Input Mains Voltage Range
  • Built-in Acceleration Start
  • Open-load and Reload Detection
  • Over Voltage and Short Circuit Protection
  • Over Temperature Protection
  • Over Current Protection
  • Cost-Effective Total PFC LED Driver Solution

Application:-

  •  Single-Stage Power Factor Correction Power Supply for LED Lighting
Specifications

Model

AP1682

Power Supply Voltage

9-21V DC

Operating Temperature

-40°C – 105  ºC

Driver Output Current

300 mA

Operating Junction Temperature

150   ºC

Power Dissipation at T(a)=50°C

0.65 W

Start-up current

20 μA

Package

SMD

Country of OriginChina
