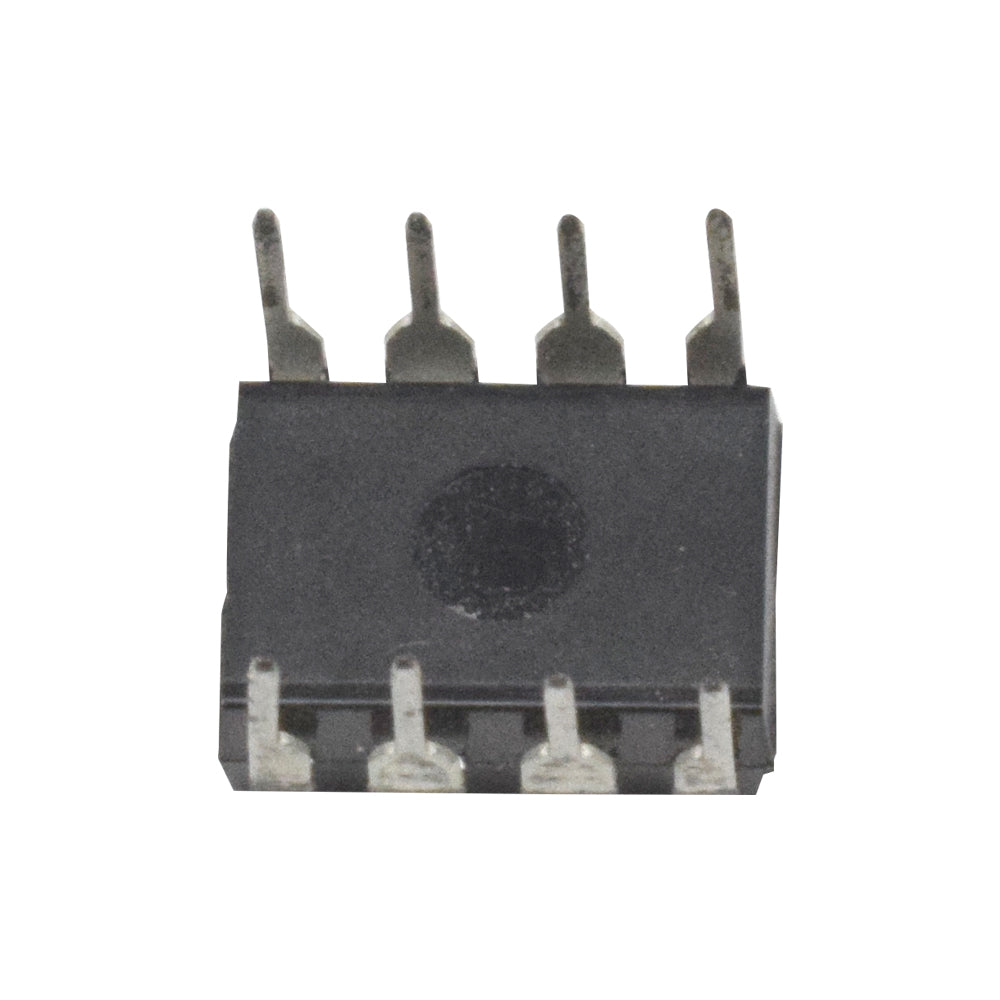

AZ4580P Low Noise Operational Amplifier

Original price was: ₹43.42.Current price is: ₹35.28. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%33.53 (Including tax)
11 - 208%32.47 (Including tax)
21 - 4010%31.75 (Including tax)
41 - 10012%31.05 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

19 People watching this product now!
Description

AZ4580P is a type of Low Noise operational amplifier. As we already know, the amplifier is used to amplify the signal; it increases the strength of the weak signal for better transmission. This low-noise operational amplifier is designed to boost the audio signal strength. It can be used in pre-amplifiers, industrial measuring tools, and applications where gain and phase-matched channels are essential. It is made explicitly for audio systems to increase tone control. Internal frequency correction, low noise, low distortion, high gain, and high bandwidth are all features of the IC. The AZ4580 may run on a single power source up to 36V or a dual power supply up to 18V.

Applications: It’s used in audio AC -3 Decoder systems, It’s used in audio amplifiers.

Pin details: 1- OUTPUT1, 2- INPUT1-, 3- INPUT1+ ,4- VEE, 5-INPUT2+, 6- INPUT2-, 7-OUTPUT2, 8- VCC

Features

  • Large signal voltage gain 110DB

  • Low input noise Voltage 0.7Micro Volt

  • It has 8 Pins

  • Small size, Highly reliable

  • Low Distortion: 0.0005% Typical·
  • Slew Rate: 7V/μs Typical
Specification
ModelAZ4580P
TypeOP-AMP IC
PackageDIP8
VCC+20V
VEE-20V
Input voltage15V
Total power dissipation800mW
Operating and Storage Temperature Range-65°C TO 150°C
Country of OriginChina
