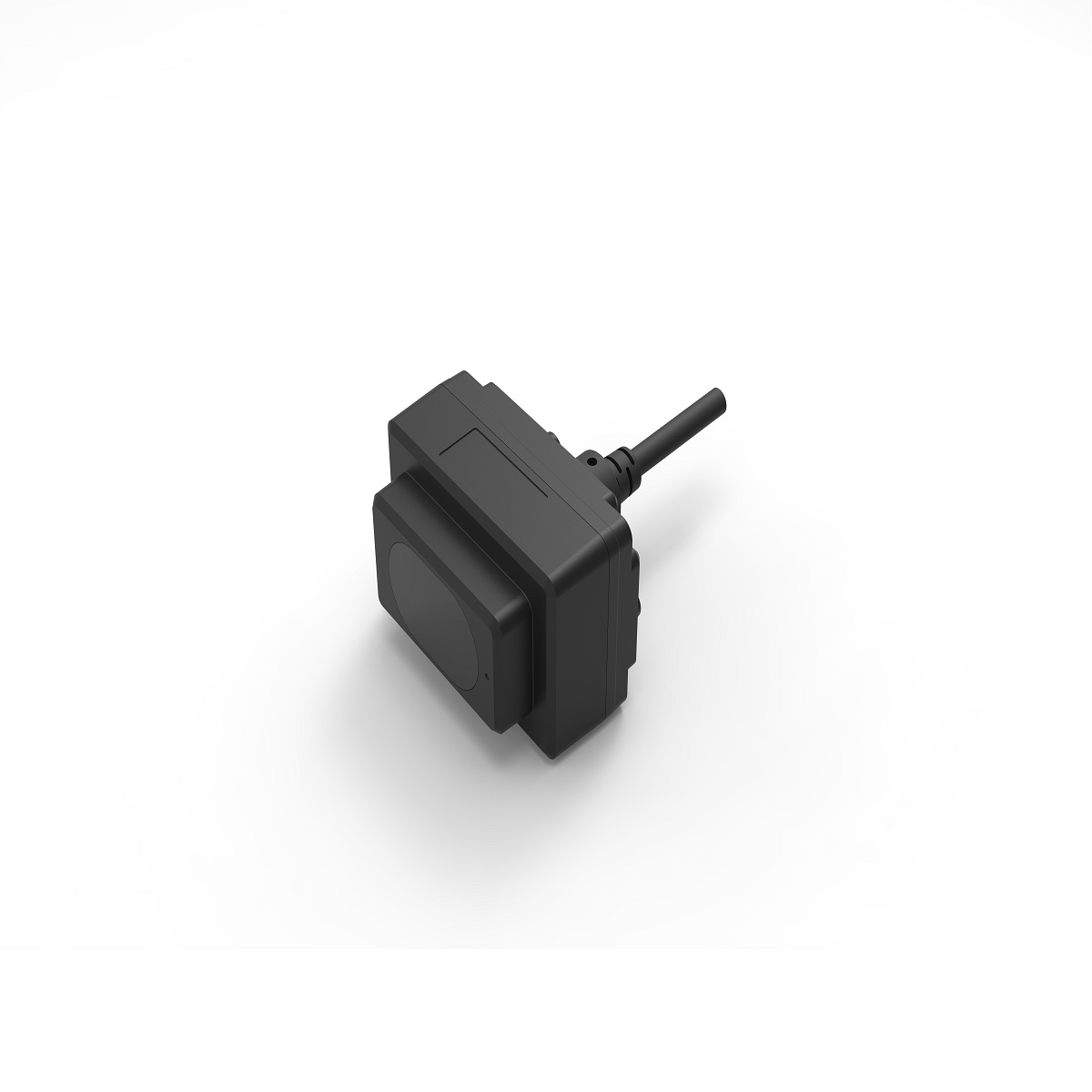

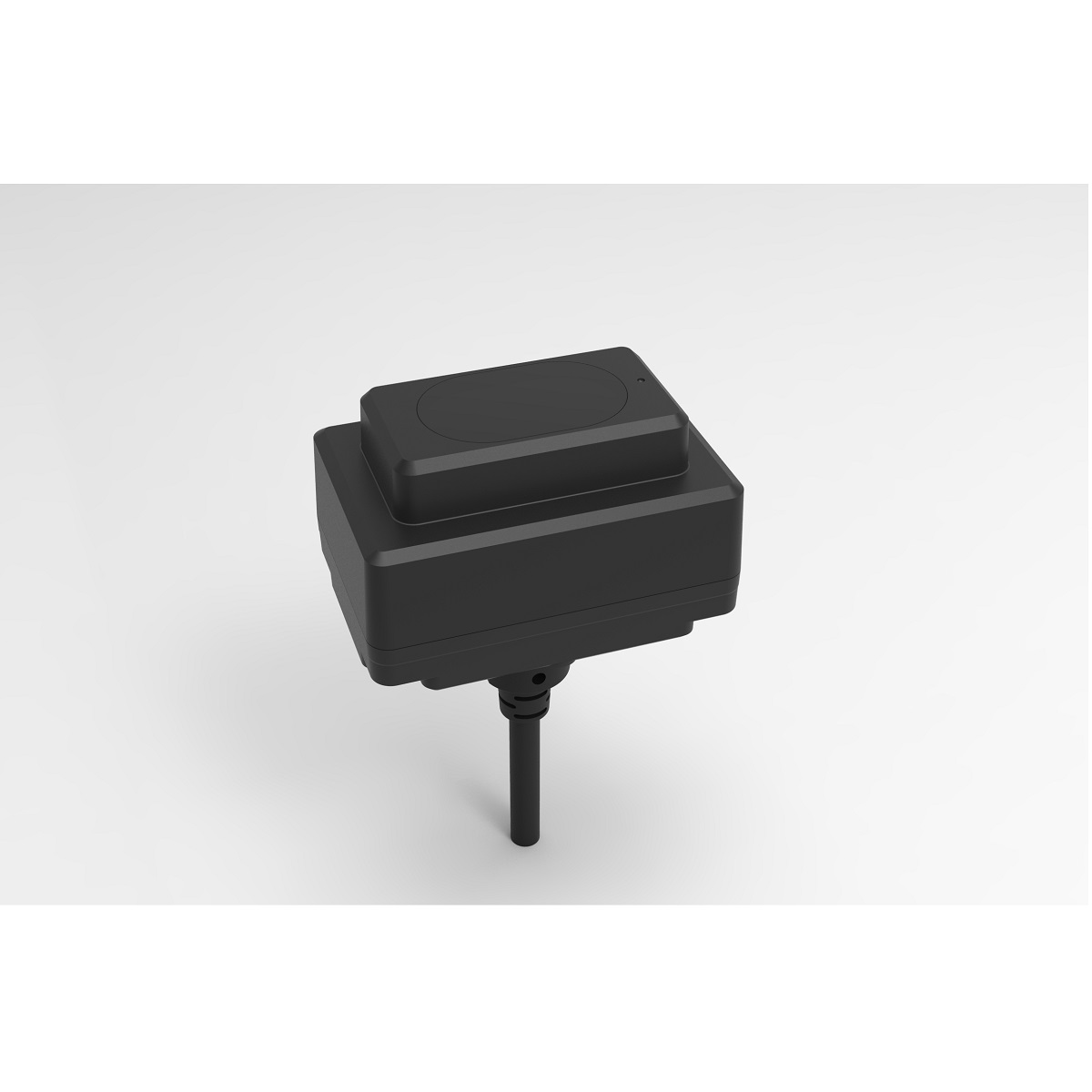

Benewake TFmini-i LiDAR Distance Sensors are updated single-point ranging LiDAR based on TFmini-S. These sensors have been optimized in communication interface, input voltage, and reverse protection. The TFmini-i sensors come with an IP65 enclosure rating, 100Hz frame rate, and 70Klux ambient light immunity. These distance sensors operate from 7V to 30V supply voltage range and -20°C to 70°C temperature range. The TFmini-i sensors suits for various industrial environments like pedestrian detection, vehicle testing, and altitude.
1 x Benewake TFmini-i-RS485 Long Distance sensor
Supply voltage |
7V~30V |
---|---|
Operating range |
0.1-12m |
Peak current |
100mA |
Average current |
≤65mA@12V |
Overvoltage protection |
30V |
Polarity protection |
40V |
FOV |
2 |
Frame Rate |
1-1000Hz |
Interface |
RS485 |
Operation Temperature |
-20°-60 |
Average power consumption |
≤0.8W@12V |
Weight |
52±0.3g |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Supply voltage |
7V~30V |
---|---|
Peak current |
100mA |
Average current |
≤70mA@12V |
Average power consumption |
≤0.85W@12V |
Overvoltage protection |
30V |
Polarity protection |
40V |
Operating Range |
0.1-40m |
FOV |
3° |
Communication Interface |
CAN |
Detection Range |
0.1-40m. |
Accuracy |
Centimeter-level (1% Relative error). |
Detection Frequency |
1~1000Hz. |
Protection level |
IP65. |
Out of stock
Supply voltage |
7~30V |
---|---|
Power consumption |
≤0.85W@12V |
Average current |
≤70mA@12V |
Peak current |
100mA |
Communication Interface |
RS485 |
Frame Rate |
1-100Hz |
FOV |
3° |
Distance resolution |
1cm |
Repeatability |
1σ:<2cm(0.1~35m@90% reflectivity) |
Ambient light immunity |
100Klux |
Operating Range |
0.1-40m |
Operation Temperature |
20°-60° |
Enclosure rating |
IP65 |
Weight |
60g |
Out of stock
Out of stock
Out of stock
Out of stock
Out of stock
Out of stock
Operating Voltage (VDC) |
3.3V/5V |
---|---|
Mounting Holes Diameter (mm) |
2.0mm |
Ranging Distance |
40 ~ 4000mm |
Ranging accuracy |
±5% |
Ranging time (min) |
20ms (short distance mode) ,33ms (medium/long-distance mode) |
View angle |
27° |
Leaser Wavelength |
940nm |
Operating Temperature (°C) |
-20 ~ 80°C |
Dimensional Accuracy (mm) |
20mm × 24mm |
