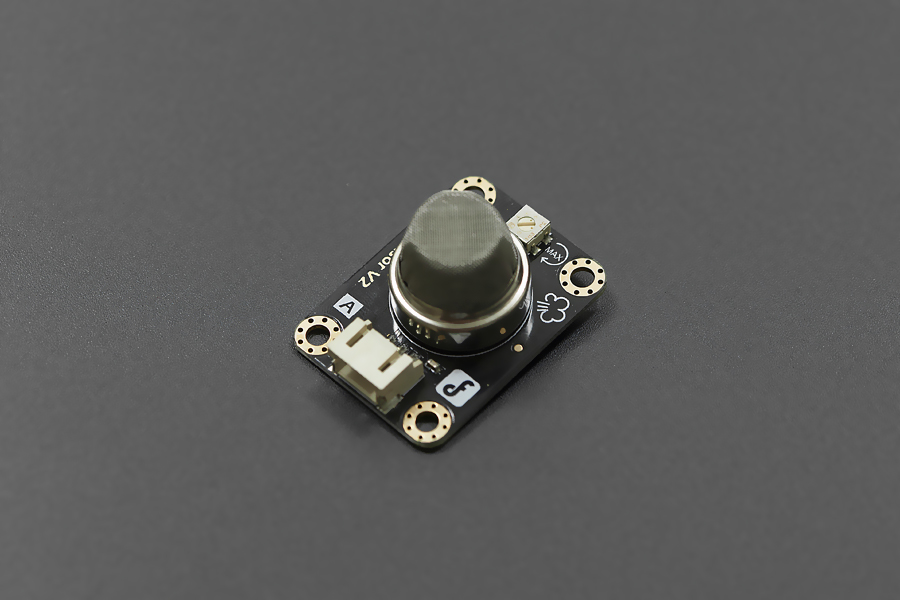

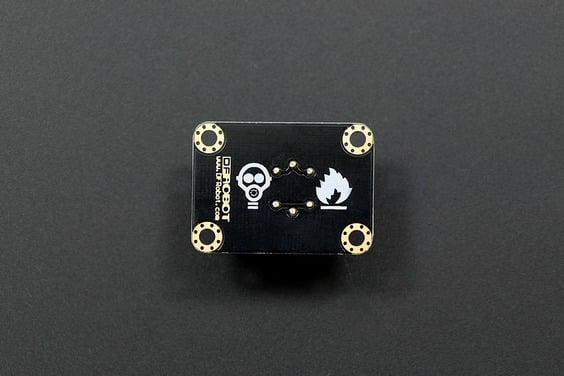

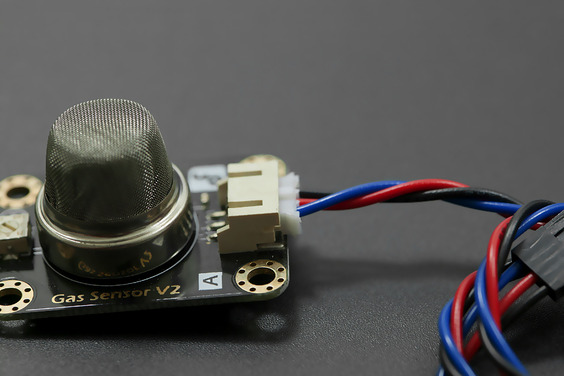

DFRobot Gravity Analog Propane Gas Sensor (MQ6) For Arduino

10 People watching this product now!

SKU: rz24310502 Category: Gas and Dust Sensor

Description

This is an Arduino Propane Gas Sensor. It uses an MQ6 probe to detect iso-butane, propane, and liquefied petroleum gas (LPG). It is less sensitive to alcohol, cooking fumes, and cigarette smoke. It can be used in gas leakage detecting equipment in consumer and industry applications, The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of the gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a gravity Interface is adapted to allow plug & play. The Arduino expansion shield is the best match for this sensor connecting to your Arduino.

Features:

High sensitivity to LPG, iso-butane, propane
Small sensitivity to alcohol, smoke
Fast response
Stable and long life
Simple drive circuit

Specifications:

Circuit voltage: 5V±0.1 AC OR DC
Heating voltage: 5V±0.1 ACOR DC
Load resistance: 20KΩ
Heater resistance: 33Ω±5% Room Tem
Heating consumption of less than 750mw
Related humidity: less than 95%Rh
O2 Oxygen concentration: 21%(standard condition)Oxygen

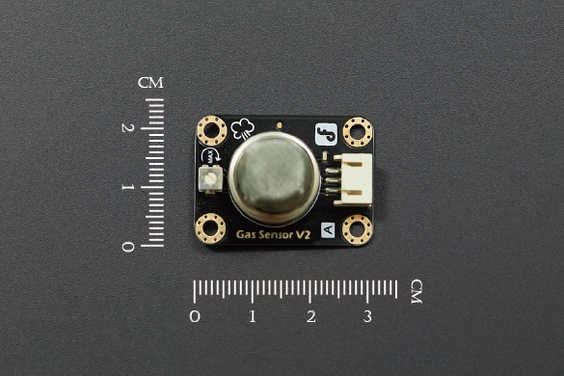

Size: 40x20mm(1.57″x0.79″)

Package Includes:

1 x DFRobot Gravity Analog Propane Gas Sensor (MQ6) For Arduino
