DFRobot Gravity Lab Grade Analog Electrical Conductivity Sensor / Meter(K=10)

SKU: rz24310111
In Stock

8,429.00

  1. Brand: DFRobot
  2. Product: Gravity Lab Grade Analog Electrical Conductivity Sensor
  3. Supply Voltage: 3.0~5.0V
  4. Output Voltage: 0~3.2V
  5. Signal Connector: PH2.0-3Pin
  6. Measurement Accuracy: ±5% F.S.
In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

DFRobot Gravity: analog electrical conductivity sensor/meter(K=10) is particularly used to measure the high electrical conductivity liquid, such as seawater, concentrated brine, etc. The measurement range is up to 100ms/cm. This product is suitable for the water quality application of mariculture, for example, marine fisheries, marine aquariums. you may also check liquid sensor selection guide to get better familiar with our liquid sensor
It supports 3~5v wide voltage input and is compatible with 5V and 3.3V main control boards, such as arduino and raspberry pi. The excitation source adopts an AC signal, which effectively reduces the polarization effect, improves the precision, and prolongs the life of the probe; The software library uses a single-point calibration method, and can automatically identify a standard buffer solution, so simple and convenient.


Features:

  1. 3.0~5.0V wide voltage input,0~3.2V output voltage, which is compatible with 5V and 3.3V mainboard
  2. AC excitation source effectively reduces polarization
  3. Gravity connector and BNC connector, plug and play, no welding
  4. The software library supports single-point calibration and automatically identifies standard buffer solutions, integrates temperature compensation algorithm
  5. Uniform size and connector, convenient for the design of mechanical structures

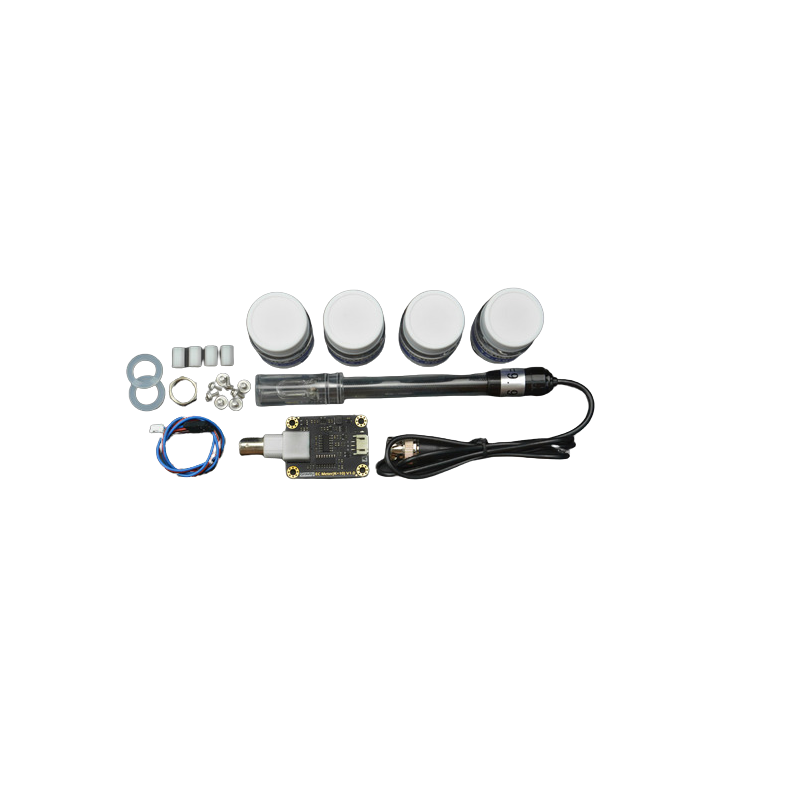

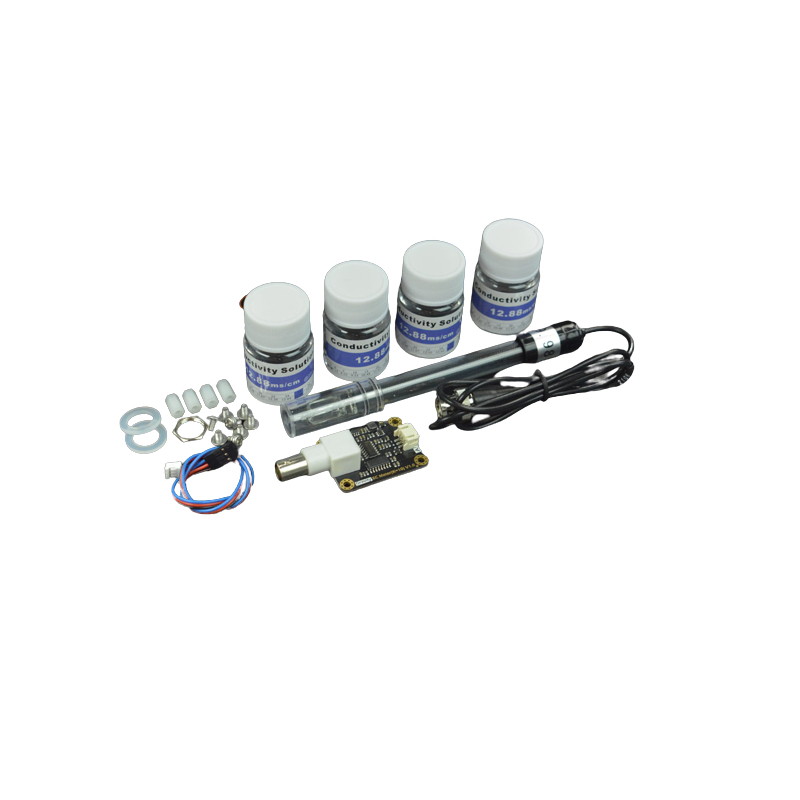

Package Includes:

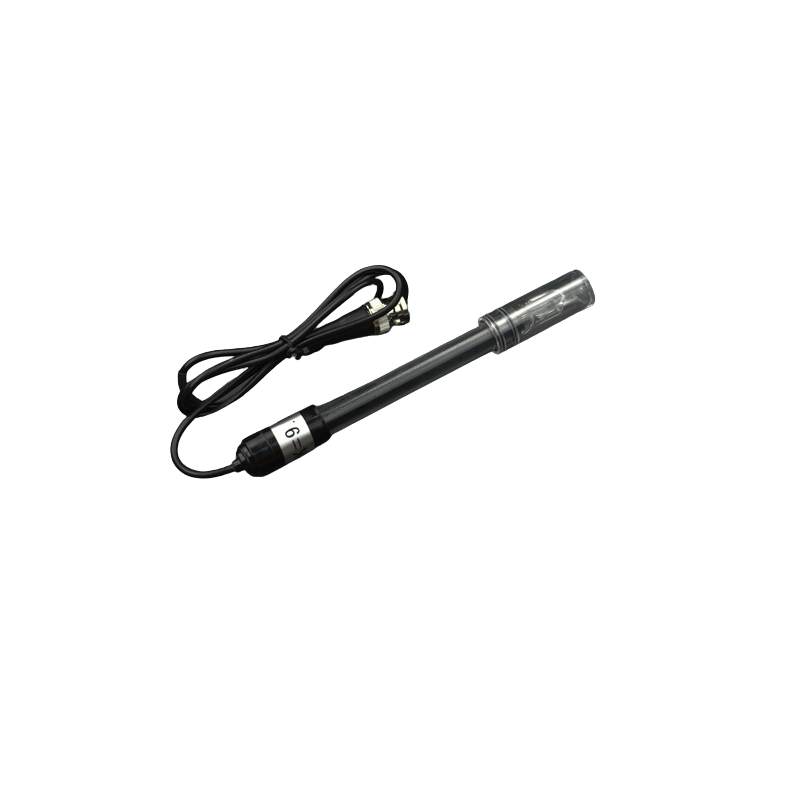

1 x Electrical Conductivity Probe(K=10, Laboratory Grade)

1 x Signal Conversion Board

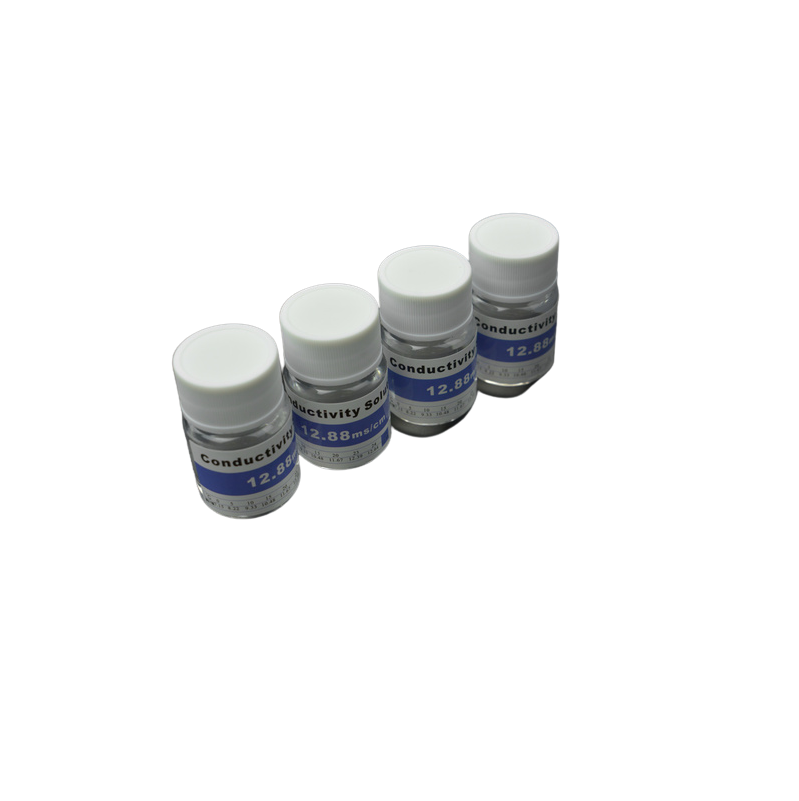

4 x Standard Buffer Solution 12.88ms/cm

1 x Gravity Analog Sensor Cable

2 x Waterproof Gasket

1 x Screw Cap for BNC Connector

4 x M3 x 10 nylon pillar

Additional information

Supply Voltage

3.0~5.0V

Output Voltage

0~3.2V

Probe Connector

BNC

Signal Connector

PH2.0-3Pin

Measurement Accuracy

±5% F.S.

Probe Type

Laboratory Grade

Cell Constant

10±2

Support Detection Range

10~100ms/cm

Temperature Range

0~40°C

Board size

42mm x 32mm/1.65in x 1.26in
