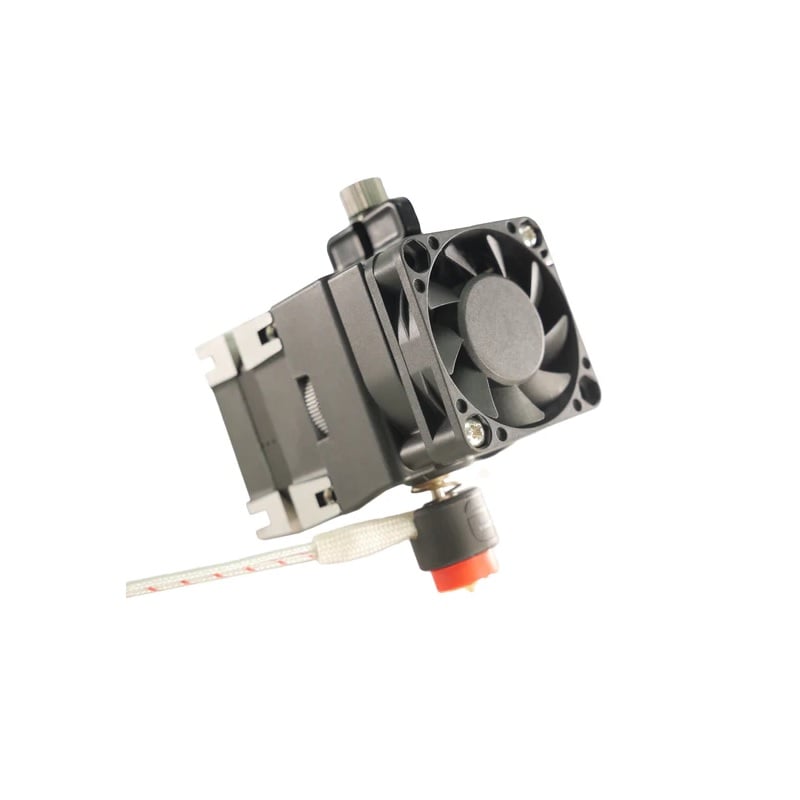

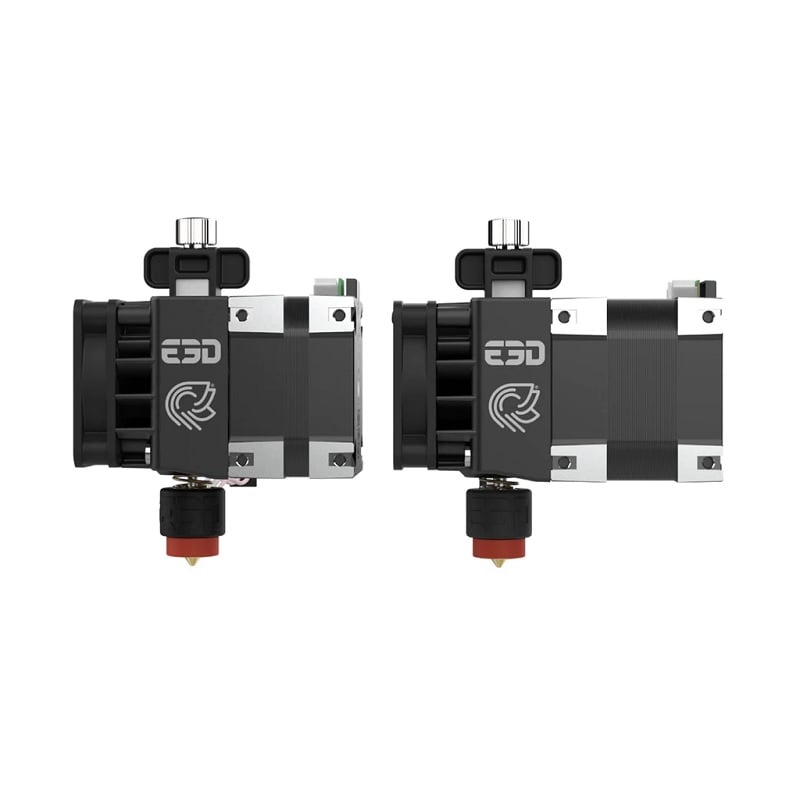

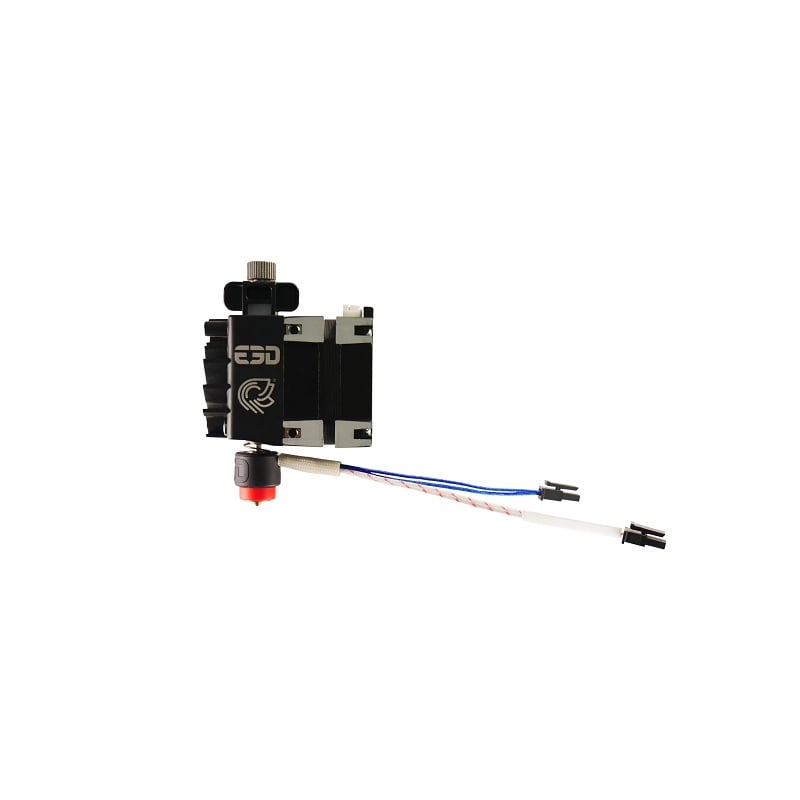

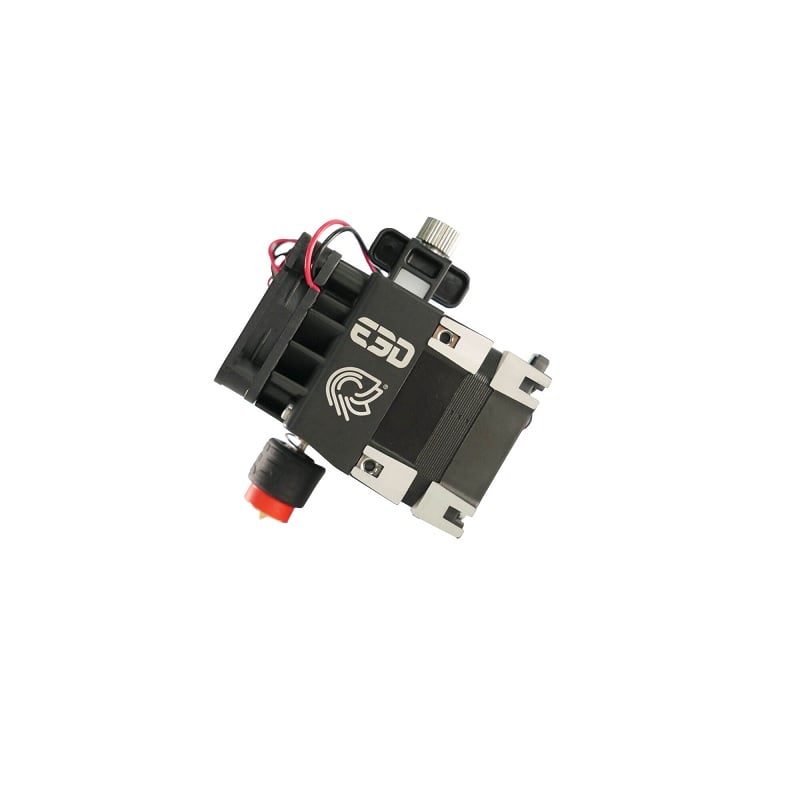

E3D Hemera XS Motor

The Revo Hemera XS extrusion system by E3D possesses all the features of the classic Hemera’s original features but it also includes a few updates that ensure a successful and enjoyable 3D printing experience. The Revo Hemera XS is available in a 12 V or 24 V option, in a fully loaded or a single nozzle kit. Both kits include a Hemera XS assembly, a Hemera fixings kit, a 40 x 40 x 10 mm fan, a Revo HeaterCore, a Revo HeaterCore spring and an extension cable kit. The difference between the fully loaded kit and the single nozzle kit is that the former contains 4 brass Revo nozzles (0.25 mm, 0.40 mm, 0.60 mm, and 0.80 mm), and the single nozzle kit comes with one 0.40 mm brass Revo nozzle.

Note: For more info refer to datasheet in attachment section.

Features:

1. Enjoy excellent performance with all 3D printing materials, particularly challenging materials like flexibles and abrasives
2. Enhanced extrusion and retraction control means you can 3D print soft flexibles with a shore hardness as low as 75A
3. Revo Hemera XS is 92g lighter and 11mm shorter than classic Hemera
4. The Revo Hemera XS extruder gets its name from its compact nature and reduced size
5. The Revo Hemera XS extruder is compatible with the Revo and Classic (V6) ecosystems
6. Many creative features of the Revo Hemera XS extruder ensure a safe and convenient 3D printing process.

Specificafications:

1. Manufacturer: E3D
2. Type of mounting: T-slot
3. Type of extrusion: “Dual-Drive” direct* / Bowden (adapter not included)
4. Compatible filament: 1.75 mm
5. Compatible hotend: V6**, Revo
6. Maximum temperature: 300 ºC
7. Weight: 256.25 g (direct)
8. Feeding: 12 V o 24 V
9. HS Code: 8477.2

Packages Includes:

1 x Hemera XS Assembly

1 x Hemera fixings kit

1 x 40 x 40 x 10 mm 12V or 24V Fan

1 x Revo HeaterCore 12V or 24V

1 x Revo HeaterCore spring

1 x Extension cable kit

Single nozzle kit:

1 x 0.40mm Brass Revo Nozzle

Fully loaded nozzle kit:

1 x 0.25mm, 0.40mm, 0.60mm & 0.80mm Brass Revo Nozzles
