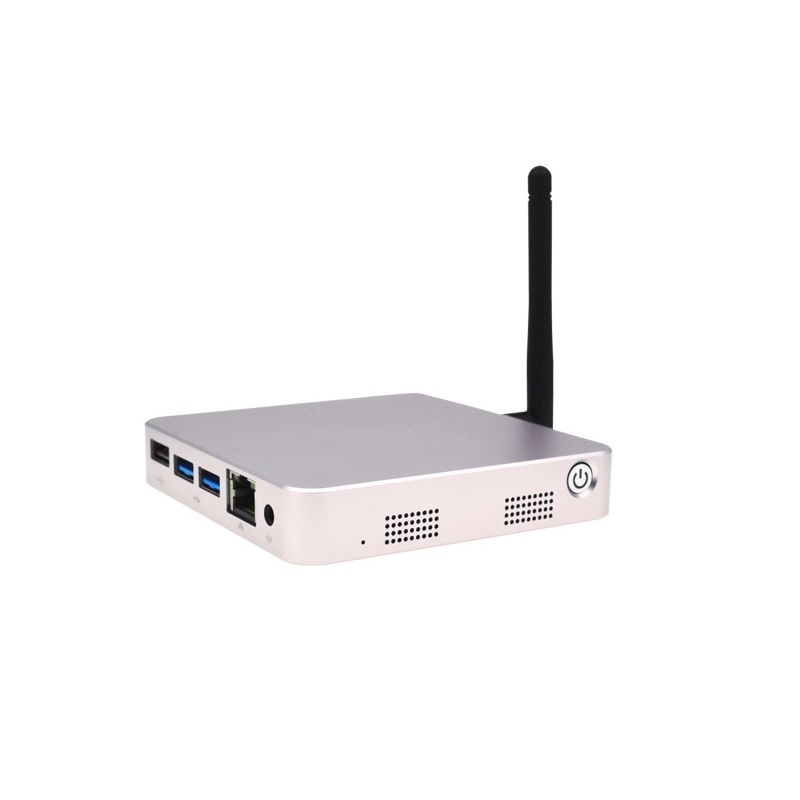

EDATEC CM4 Media Baseboard CM4104000 4GB DDR,120G SSD WiFi/Bluetooth Antenna Silver Color CNC Aluminum Case 8MP Camera

19 People watching this product now!

SKU: rz2436822 Category: Development Board/Kit

Description

CM4 Media is a multimedia computer designed based on Raspberry Pi Compute Module 4. It provides 2 channels of USB 3.0, 1 channel of USB2.0, 1 channel of Gigabit Ethernet interface, 2 channels of HDMI interface supporting 4K video output, an 8-megapixel camera, and 2 channels of stereo speakers. You can play Audio and video without additional accessories.
You only need to press the power button to start or shut down the computer like operating a Windows computer. The operating system can be installed on the SSD hard disk and it boots faster than from an SD card. The large-capacity SSD hard disk can store various video data. The access speed of the SSD hard disk is up to 300MB/S.
CM4 Media installed Raspberry Pi-certified external WiFi and Bluetooth dual-band antennas to provide better wireless signals.
You can load different application software to turn the CM4 Media multimedia computer into a network set-top box, network storage server, wireless access point, and other different devices.
CM4 Media’s case is made of CNC-cut aluminum alloy, very beautiful. The case provides excellent heat dissipation performance for the CPU, PMU, and wireless module, which improves the system’s reliability. You can choose black, silver and pink colors.

Package Includes:

1 x EDATec CM4 Media Baseboard CM4104000 4GB DDR,120G SSD WiFi/Bluetooth Antenna Silver Color CNC Aluminum Case 8MP Camera

Additional information

Processor	Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz H.265 (HEVC) (up to 4Kp60 decode) , H.264 (up to 1080p60 decode , 1080p30 encode) OpenGL ES 3.0 graphics
Memory	4GB LPDDR4-3200 SDRAM
Storage	Support boot from SD Card( Capacity can be chosen from 32GB~256GB) Support boot from SSD hard disk driver(Capacity can be chosen from 120GB~1TB
Multimedia	8-megapixel camera (Optional ) 2 channel 1W stereo speakers 1-channel MEMS microphone Support headphone jack and external microphone 1 standard HDMI 4K high-definition output interface 1 channel Micro HDMI 4K high-definition output interface
Network and wireless	1 channel 10/100/1000M Ethernet 2.4G/5.8G dual-band WiFi , compatible with IEEE 802.11 b/g/n/ac Bluetooth BLE5.0 1 official Raspberry Pi external antenna 4G/LTE version optional (non-SSD hard disk version)
Interface	2 channels USB3.0 1 channel way USB2.0
Other	One-click switch turns on/off the system with power & status LED indication RTC built-in with a backup battery
Power Supply	USB Type C interface , 5V/3A DC input
Dimensions (L x W x H) mm	100 x 100 x 19
Weight	260g
Software Environment	Raspbian Desktop version pre-installed
