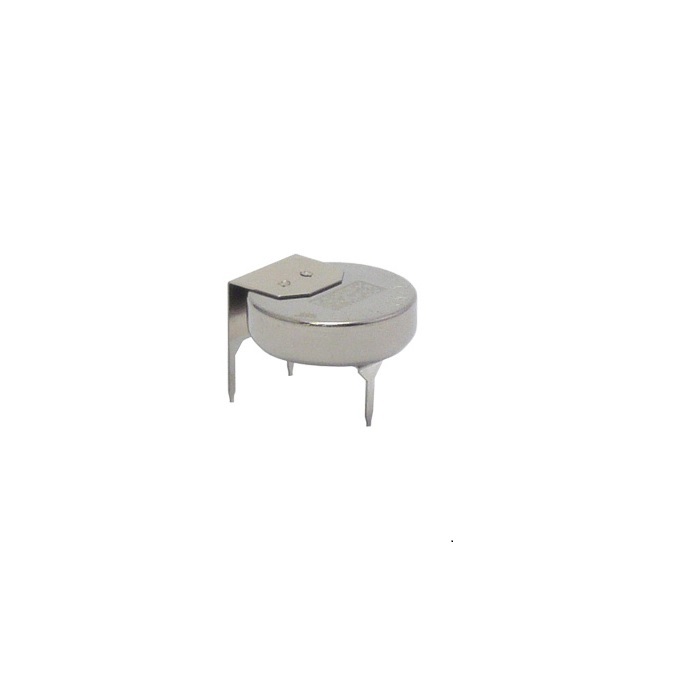

Figaro’s TGS5141 is a battery-operable electrochemical sensor that uses a unique electrolyte that eliminates the need for a water reservoir. By eliminating the water reservoir used in TGS5042, the comparative size of TGS5141 is reduced to just 10% of TGS5042. With its ultra-compact size, this sensor is the ideal choice for size-oriented applications such as portable CO detectors, small residential CO detectors, and multi-sensor fire detectors. OEM customers will find individual sensor data printed on each sensor in barcode form, enabling users to skip the costly gas calibration process and allowing for individual sensor tracking.
Note: For more technical details go through Datasheet in the attachment sectionÂ
Applications:
Residential and commercial CO detectors
Fire detection
1 x Figaro TGS5141-P00 Carbon Monoxide Sensor home air quality monitor
Model number |
TGS5141-P00 |
---|---|
Output current in CO |
1.2~3.2nA/ppm |
Target Gases |
Carbon monoxide |
Typical detection range |
0 ~ 5 ,000ppm |
Baseline offset(*1) |
<±10ppm equivalent |
Operating temperature |
10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent) |
Operating humidity |
10 ~ 95%RH (no condensation) |
Response time (T90) |
within 60 seconds |
Storage conditions |
-10ËšC ~ +50ËšC (continuous) -20ËšC ~ +60ËšC (intermittent |
Standard test conditions |
20±2˚C ,40±10%RH |
Weight |
approx. 2.5g |
