I2S Microphone Module

₹677.15 (Including tax)

Input Voltage: 3.3V±0.2V(DC)
Input Current: >1mA
Sound Level Pressure: 140 dB SPL
Sensitivity: -26(dB, dBFS@1kHz 1Pa)
S/N Ratio: 57dB(20kHz bandwidth, A-weighted)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹643.28 (Including tax)
11 - 20	8%	₹622.96 (Including tax)
21 - 40	10%	₹609.43 (Including tax)
41 - 100	12%	₹595.89 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

14 People watching this product now!

SKU: rz24324146 Category: Sound Sensor

Description

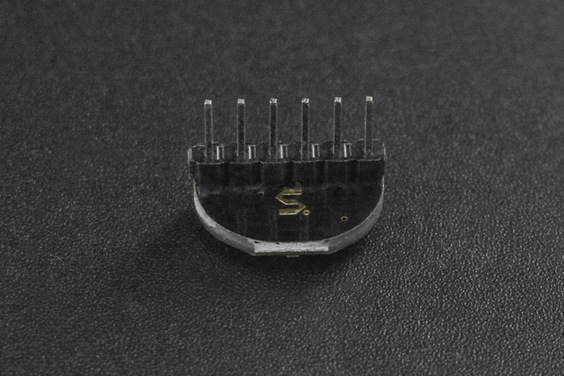

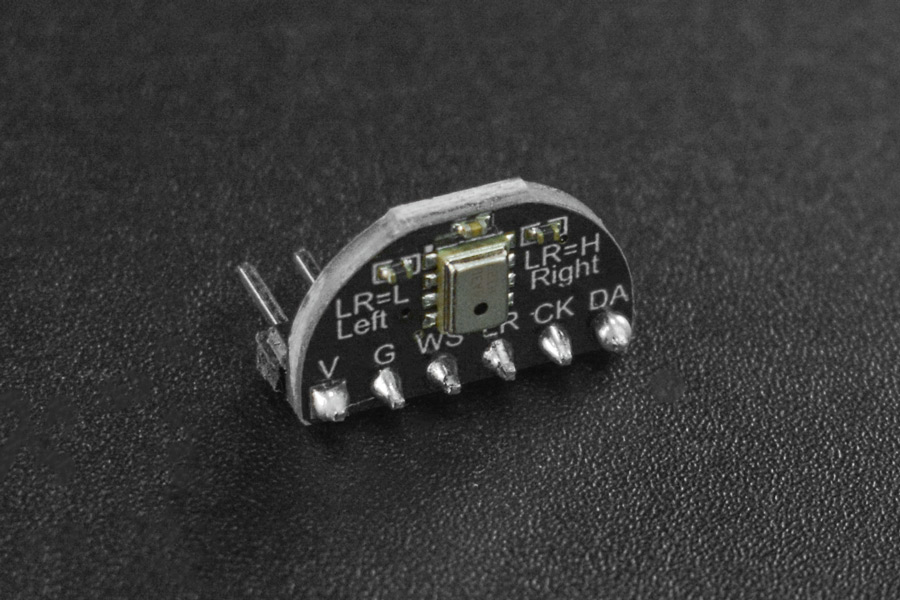

This high sensitivity single microphone module features MSM261S4030H0 digital silicon chip, I2S output, onboard SK9822 series RGB LED, two-wire control color.

MSM26S4030H0 is an omnidirectional, bottom ported, I2S digital output MEMS microphone chip. I2S is a general-purpose digital audio interface and is widely used in DSP and digital audio processing fields. In a conventional audio system, the audio signal collected by the microphone will be converted into analog voltage and output, and then processed by the main controller chip after being changed into a digital signal and encoded through the ADC of codec. However, the product of the MSM261S4030H0 series has a built-in 24bit I2S audio port, so without adding an extra Codec, it is able to realize full digital signal connections with DSP or MCU. The raw digital audio signal is directly output to the main controller chip. As a result, the complexity of designing signal chains will be greatly reduced, which allows the product to hold advantages in size, cost, power consumption, and anti-interference.

Nowadays, personal portable electronic products have been gradually becoming dominant in the consumer market. This kind of silicon-made microphone learns the advantages of semiconductor technology and combines high repeatability of production, excellent sound performance, and great expansibility. Therefore, it can be said with confidence that in the near future, the traditional ECM(electret condenser microphone) will be replaced by low-cost and high-performance MEMS.

Package includes:

1 x I2S Microphone Module

Additional information

Input Voltage (V)	3.3±0.2V
Current Consumption (mA)	>1
Sound Level Pressure	140 dB SPL
Sensitivity	-26(dB , dBFS@1kHz 1Pa)
Output	Digital I2S output
Connector	16P 2.54mm Dupont Wire
Operating Temperature Range (°C)	-30 to 85
Length (mm)	15.2
Width (mm)	9.17
