PCT-SPL-42 0.08-2.5mm 4:2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.

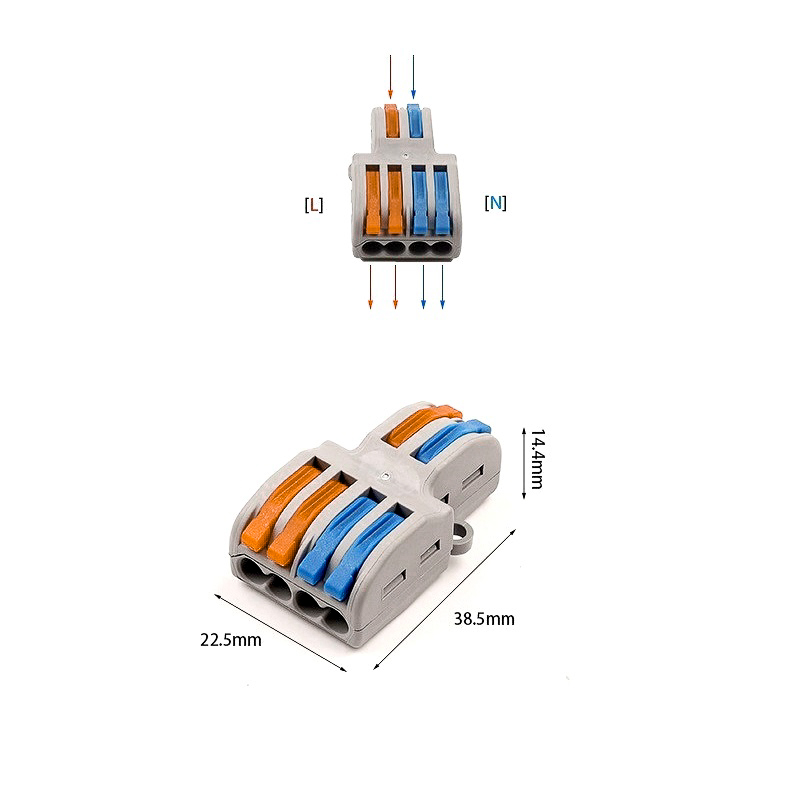

It can be used to create the two-wire connection from two pair connections as shown in below Picture

.

PCT Spring Lever Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

• PCT-212 is a Two-wire connector
• PCT-213 is a Three-wire connector
• PCT-214 is a Four-wire connector
• PCT-215 is a Five wire connector
• PCT-218 is an Eight-wire connector
• CH-812 is a Two to Two-wire connector
• CH-813 is Three to Three wire connector
• CH-2-4 is a Four to Two-wire connector
• CH-2-6 is a Six to Two-wire connector

Features:

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 4:2 -Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x PCT-SPL-42 0.08-2.5mm 4:2 Pole Wire Connector

The HR10A series from Hirose(HRS) are low-cost push-pull coupling type micro connectors. These are developed in response to customer needs for miniaturization, high density and easy handling. The HR10 series connectors offer lightweight and assure high reliability, durability, and easy push pull cycles. These connectors can be used in small-sized electronic equipment requiring high reliability. Simple and well-designed connectors with a matte finish enhance appearance of the equipment. The most compact HR10 series is as slender as a cigarette but fits every application with a well-balanced and simplified layout in limited space. Five key system permits only one way of coupling so that you can find right position to connect even when blind mating.

Features:

1. The connector pin is located to avoid any damage which may be caused when blind mating
2. Space saving push-pull mechanism facilitates multi-installation of connectors
3. Easy wiring and mounting
4. Satin finished nickel plated zinc alloy and brass shell
5. Silver or gold plated brass/bronze male terminal and beryllium/phosphor bronze female terminal

Specifications:

1. Plug, jack, and receptacle: shell type
2. The number of contacts varies: 4 to 20
3. Current rating: 2A
4. Operating temperature range: -25°C to 85°C
5. Insulation type Material: Blue or black polyamide/PBT insulation

Package Includes:

1 x HR10A-10P-12S(73)-PLUG, SOCKET CNTS, PUSH-PULL,

The 4785.0000 is a rewireable right angle GST Cable IEC C13 Receptacle with the screw termination. It is suitable for appliances with protection class I according to IEC 61140. The housing is made of black UL94V-0 thermoplastic.

Note: For more technical details go through Datasheet in the attachment section

Features:

1. 8.5mm Maximum cable diameter
2. 3 x 1mm²/3 x 18AWG Maximum wire size
3. Good quality Product

Specifications:

1. IEC Connector Type: IEC C13 Socket
2. Current Rating: 15A
3. Voltage Rating: 250VAC
4. Contact Termination Type: Screw
5. Connector Mounting: Cable Mount

Package Includes:

1 x 4785.0000-SOCKET, IEC, REWIREABLE, RIGHT

The 206434-1 from TE Connectivity is a CPC series 8 position circular I/O plug connector housing with shell size 11.

Features:

1. Keyed mating alignment type
2. Free hanging mounting style
3. Black color thermoplastic housing
4. 5/8-24 UNEF-2A thread size
5. Straight mounting angle
6. Wire insulation diameter of 1.73mm (0.068inch)
7. UL94 V-0 flammability rating
8. Contact type is pin

Package Includes:

1 x 206434-1-Circular Connector, CPC Series 2, Cable Mount Plug, 8 Contacts, Crimp Pin – Contacts Not Supplied

The T 3505 001 is a 8-position Female Cable Connector, C091A series, solder termination and silver-plated contacts. Nickel-plated die-cast housing, thermoplastic dielectric and metal screw locking system. This cable connector is designed for Ø4 to 6mm cable.

Features:

1. Internal strain relief
2. Good shielding effectiveness when mated and locked
3. >10¹°R Insulation resistance
4. <5mR Contact resistance
5. IP40 Protection rating
6. UL94V-0 Flammability rating

Specifications:

1. Product Range: C091A Series
2. Circular Connector Shell Style: Cable Mount Receptacle
3. No. of Contacts: 8 Contacts
4. Circular Contact Type: Solder Socket

Package Includes:

1 x T 3505 001-SOCKET, FREE, C091A, 8WAY
