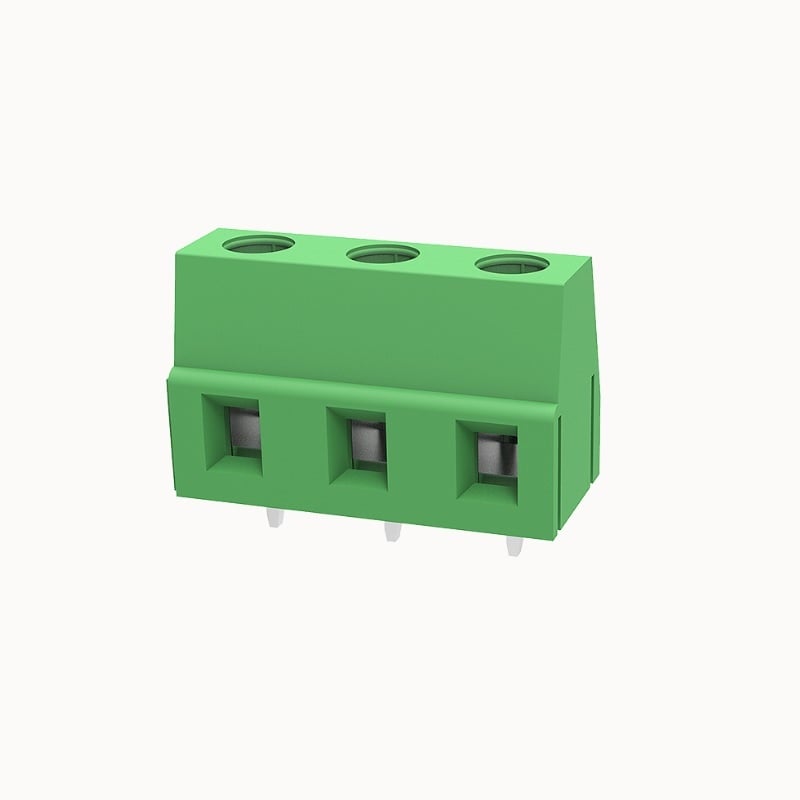

Degson 3 Pin 7.5 mm PCB Terminal Block

0 Reviews
Available on backorder

25.79 (Including tax)

  1. Number of Pins: 3
  2. Pitch: 7.5mm
  3. Rated voltage: 450V
  4. Rated current: 18A
  5. Wire gauge: 16-12 AWG

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%24.50 (Including tax)
11 - 208%23.72 (Including tax)
21 - 4010%23.21 (Including tax)
41 - 10012%22.69 (Including tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)
SKU: rz2434880

Product details

The Degson DG128-7.5-03P is a PCB terminal block used for connecting wires to a printed circuit board or another device. It is designed for a rated current of 18A and a rated voltage of 450V.

The terminal block features a pitch of 7.5mm, which refers to the distance between the centers of adjacent pins. It has a screw connector with a tension sleeve, which means that wires are secured by tightening the screws on the connector to make a secure electrical connection. The tension sleeve feature ensures that the wire strands are held tightly together and inserted into the connector as a single unit, improving reliability and reducing the likelihood of wire breakage or disconnection.

The terminal block can accept wires with a cross-section of 1.0-2.5mm², which refers to the area of the wire’s cross-section. The connector has a green color, which can be used to identify the specific circuit or function that it is connected to.

The contact surface of the terminal block is tin-plated, which provides a protective layer against corrosion and helps to ensure good electrical conductivity. The operating temperature range is -40°C to +105°C (-40°F to +221°F), making it suitable for use in a wide range of environments.


Specifications and Features:

  1. Number of Pins: 3
  2. Pitch: 7.5mm
  3. Rated voltage: 450V
  4. Rated current: 18A
  5. Wire gauge: 16-12 AWG
  6. Wire strip length: 8mm
  7. Insulation material: PA66, UL94V-0
  8. Contact plating: Tin
  9. Operating temperature: -40°C to +105°C
  10. Wire connection method: Screw connection with tension sleeve
  11. Color: Green

Package Includes:

1 x Degson 3 Pin 7.5 mm PCB Terminal Block
