LITTELFUSE Hall Effect Proximity Sensor, Flange Mount, 55100 Series,19 mm, 59 G

1,708.47 (Including tax)

  1. Product: Hall Effect Proximity Sensor
  2. Size: 19 mm
  3. Operating Voltage: +3 to +24
  4. Operating Temperature: 40 to + 100°C
  5. Switching Speed: 12 kHZ

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%1,623.04 (Including tax)
11 - 208%1,571.78 (Including tax)
21 - 4010%1,537.63 (Including tax)
41 - 10012%1,503.45 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

13 People watching this product now!
SKU: rz2439859 Category:
Description

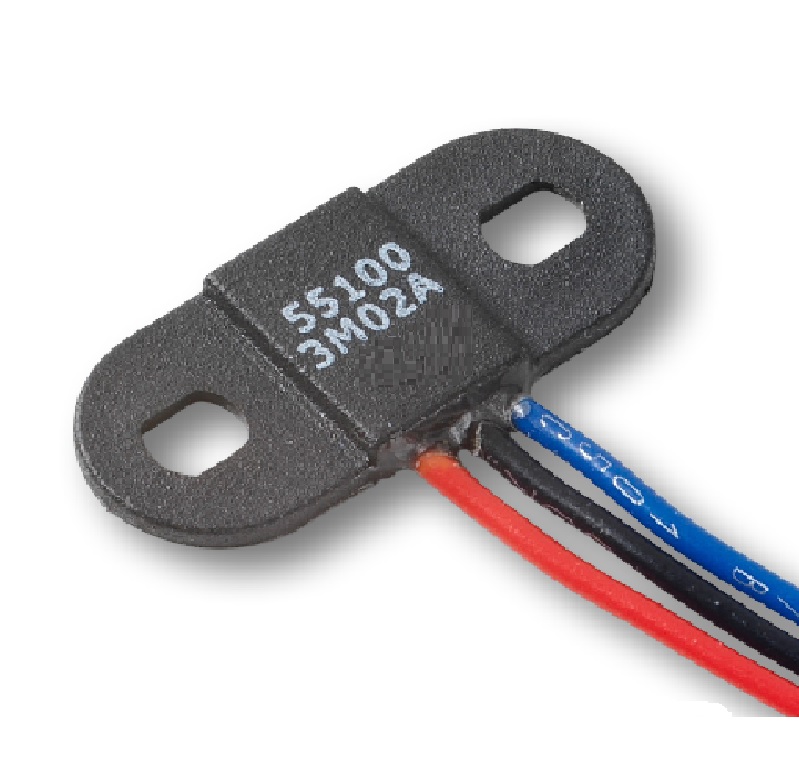

The 55100 is a miniature flange mounting hall effect sensor 25.5mm (1.004”) x 11.00m (0.433”) and only 3.00mm (0.118”) high with a choice of digital or programmable analog outputs. It is available as three-wire (voltage output) or two-wire (current output) versions. It’s case design enables screw or adhesive mounting and capable of switching up to 24Vdc and 20mA. It comes with a range of sensitivity and cable length option

Applications:

  1. Position and limit sensing
  2. RPM measurement
  3. Flow metering
  4. Commutation of brushless DC motors
  5. Angle sensing
  6. Magnetic encoders

Features:

  1. Magnetically operated position sensor
  2. Digital or programmable analog types available
  3. Medium, high or programmable sensitivities
  4. Three-wire (voltage output) or two-wire (current output) versions
  5. Reverse/Over voltage protection
  6. Built in temperature compensation

Specifications:

  1. Product: Hall Effect Proximity Sensor
  2. Size: 19 mm
  3. Operating Voltage: +3 to +24
  4. Operating Temperature: 40 to + 100°C
  5. Switching Speed: 12 kHZ
  6. Wire connection: 3 Wires
  7. Operating Current: 12.0 to 17.0mA

Note: For more info refer to datasheet

Product image can differ from actual product


Package Includes:

1 x LITTELFUSE Hall Effect Proximity Sensor, Flange Mount, 55100 Series, 19 mm
