MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module

777.57 (Including tax)

  1. Working voltage: 3V-5V (MAN SV)
  2. Static output voltage: VCCi2
  3. Working current: 135m2A (MAX)
  4. Small in size, with easy mounting capability.
  5. Monolithic Hall IC for high reliability

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%738.68 (Including tax)
11 - 208%715.35 (Including tax)
21 - 4010%699.80 (Including tax)
41 - 10012%684.26 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

11 People watching this product now!
SKU: rz24317132 Category:
Description

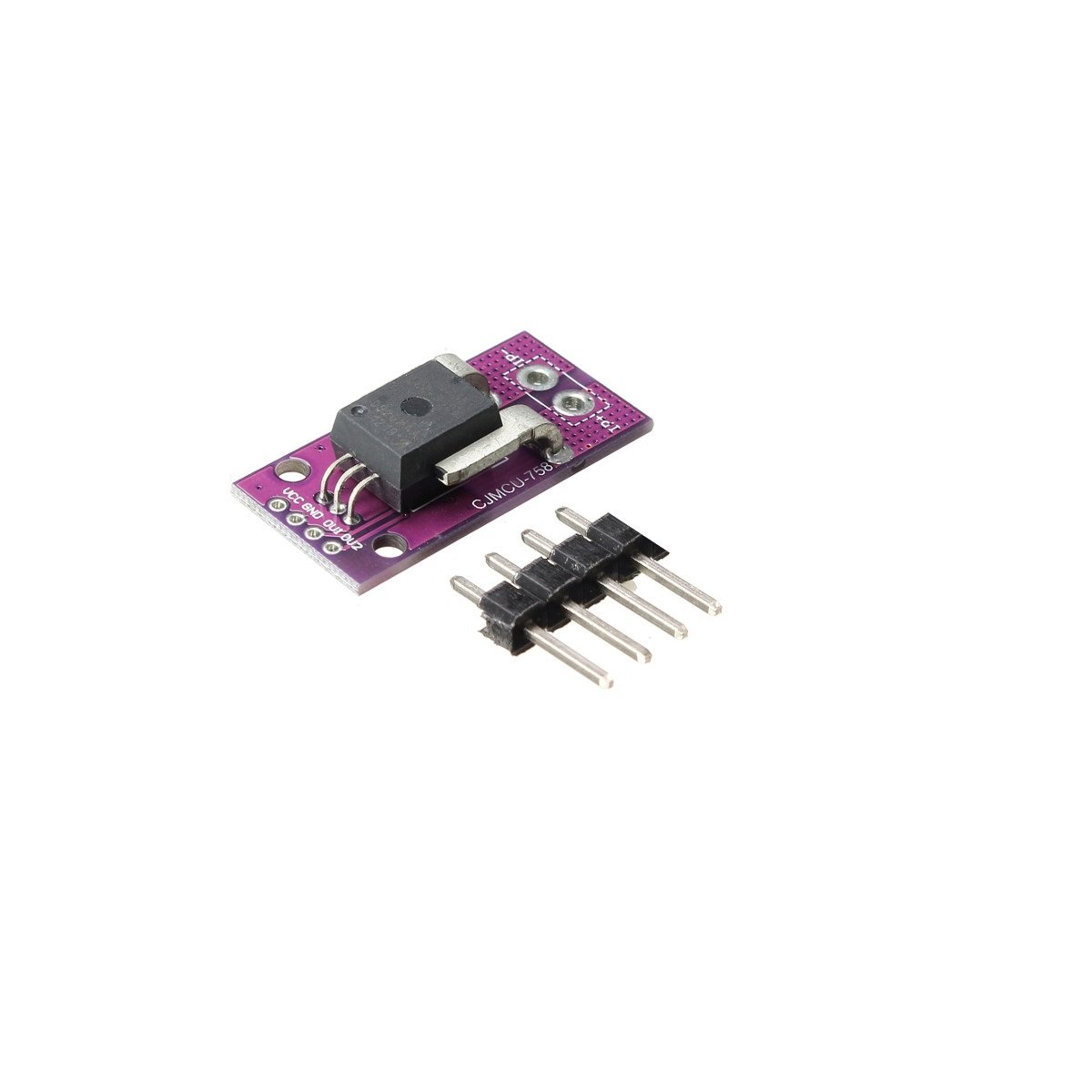

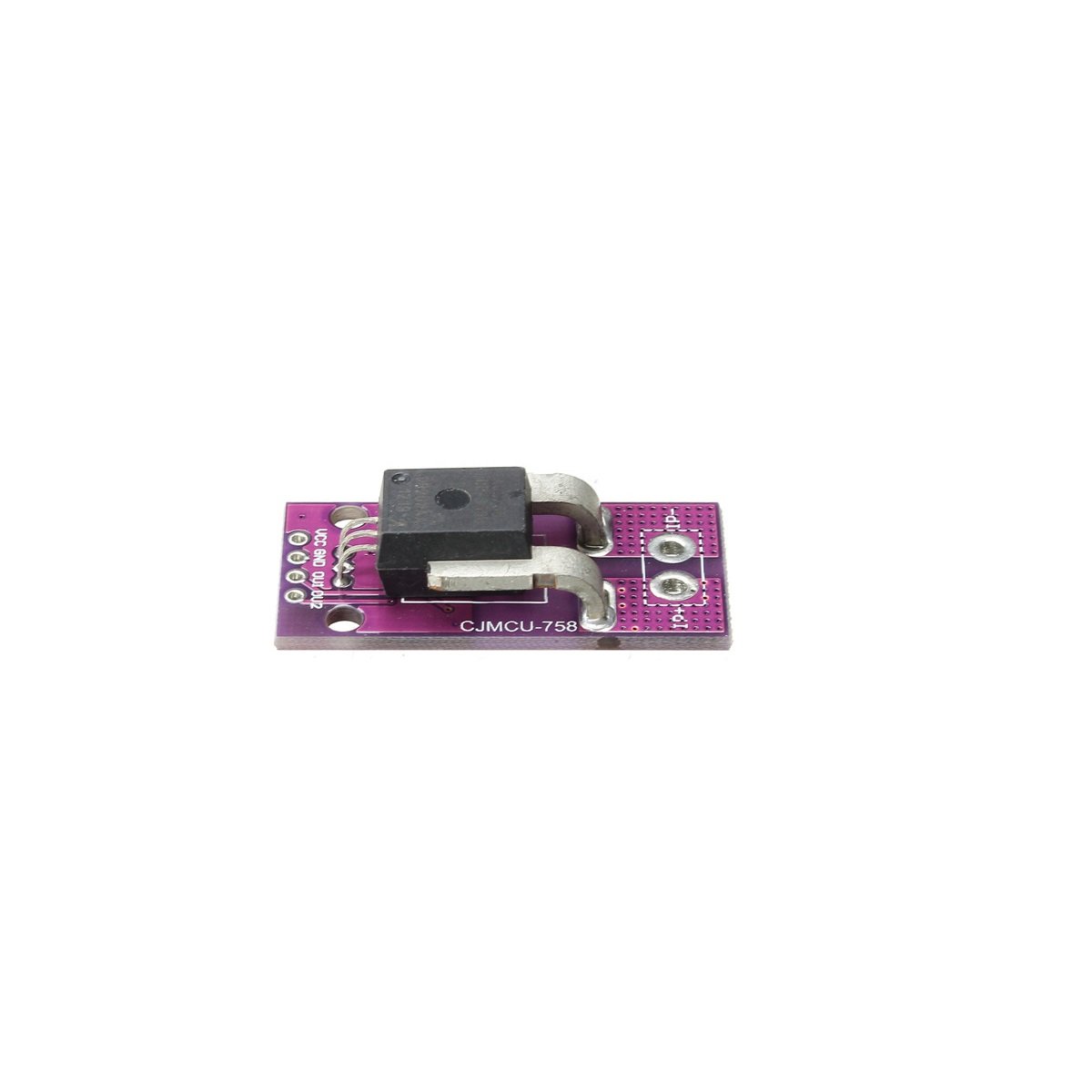

This Module is based on the Allegro Hall-effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module.

The relationship between voltage output and current input:
 VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.
For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.

Features:

  1. Small in size, with easy mounting capability.
  2. Monolithic Hall IC for high reliability
  3. Extremely stable output offset voltage
  4. Factory-trimmed for accuracy.
  5. Nearly zero magnetic hystereses.

Package Includes:

1 x MCU-758 Hall Current Sensor

Additional information
Operating voltage

3 to 5 Volts (MAX 8 V)

Static output voltage

VCC/2

Operating current

13.5 mA (MAX)

Storage temperature range

-65 °C – 165 °C

Maximum output current (VIOUT-GND)

3 mA

Internal bandwidth

120 KHz

Detection current range (A)

±50

Linearity (mV/A)

40

Working temperature (°C)

-40 to 150

Module weight

8.8 g

Module size

37 X 18
