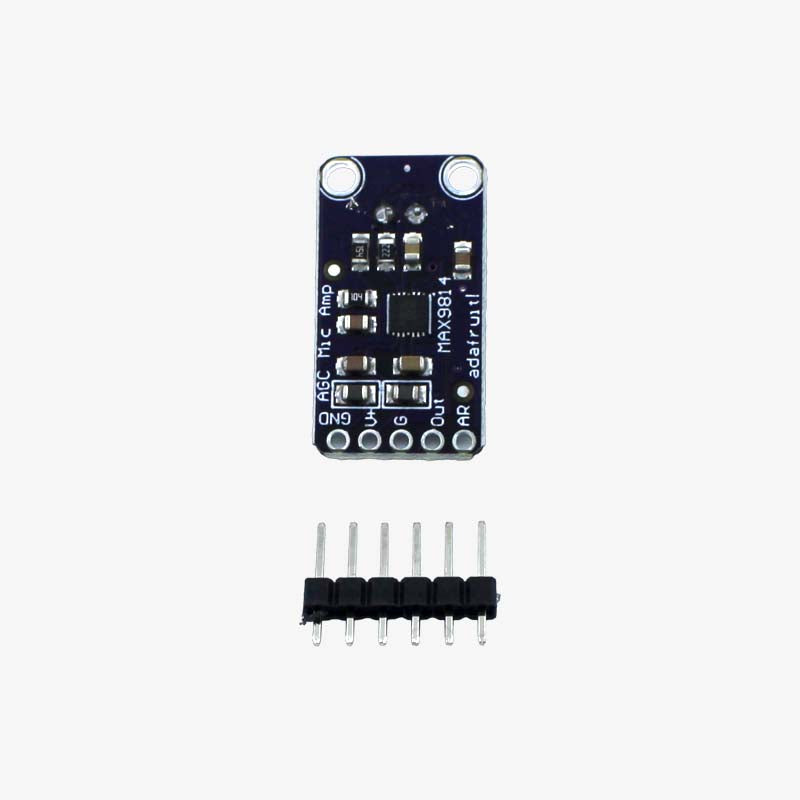

MAX9814 High Performance AGC Microphone Amplifier Module CMA-4544PF-W

MAX9814 High Performance AGC Microphone Amplifier Module CMA-4544PF-W

Name: MAX9814 High Performance AGC Microphone Amplifier Module CMA-4544PF-W - Robozar
Brand: Robozar
SKU: rz24331645
Price: 247.25 INR
Availability: OutOfStock
Rating: 5.00 (2 reviews)

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

Original price was: ₹401.68.Current price is: ₹291.75. (Including tax)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹277.17 (Including tax)
11 - 20	8%	₹268.41 (Including tax)
21 - 40	10%	₹262.59 (Including tax)
41 - 100	12%	₹256.74 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

10 People watching this product now!

SKU: rz24331645 Categories: All Products, Audio, Audio Amplifiers, Featured Products, Latest Products Tags: [C] Audio Amplifier, Amplifier Module, Audio amplifier, M50, Microphone, Microphone Amplifier Module

Description

The MAX9814 High-Performance AGC Microphone Amplifier Module CMA-4544PF-W takes audio amplification to the next level. Unlock the full potential of audio amplification with the MAX9814 High-Performance AGC Microphone Amplifier Module CMA-4544PF-W. This module brings together exceptional performance, Automatic Gain Control (AGC), and low-noise microphone bias to redefine audio amplification. Designed around the MAX9814 IC, renowned for its high-caliber amplification, this module is a perfect fit for applications that demand clear and precise sound capture. Whether you’re delving into voice recognition, audio recording, or sound analysis projects, the MAX9814 module offers reliability and excellence you can trust.

Features:

Automatic Gain Control (AGC)
Programmable action time
Programmable action and release time ratio
Low-power shutdown mode
Built-in 2 Volt low noise microphone bias

Applications:

Speech Recognition
Bluetooth Headsets
Two-Way Communicators
High-Quality Portable Recorders
IP Phones/Telephone Conferencing

Specifications:

Supply Voltage: 2.7v-5.5v @ 3mA current
Output: 2Vpp on 1.25V bias
Frequency Response: 20Hz – 20 KHz
Programmable Attack and Release Ratio
Automatic gain, selectable max from 40dB, 50dB or 60dB
Low Input-Referred Noise Density of 30nV/
Low THD: 0.04% (typical)

Package Includes:

1 x MAX9814 High Performance AGC Microphone Amplifier Module
