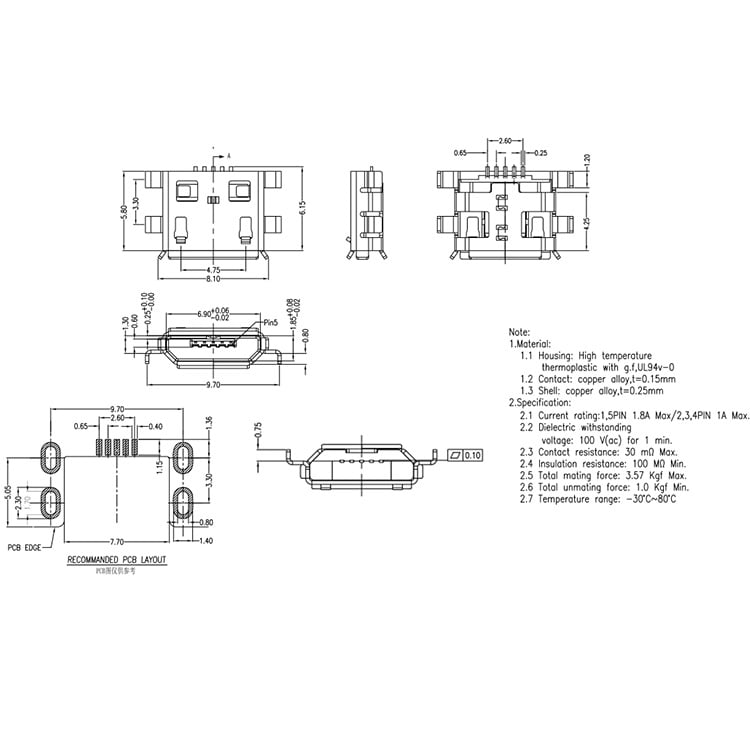

Micro USB is a miniaturized version of the Universal Serial Bus (USB) interface developed for connecting compact and mobile devices such as smartphones, Mp3 players, GPS devices, photo printers and digital cameras. Micro USB connectors exist or have existed in three forms: micro A, micro B and micro USB 3 USB Type-C has an oblong-shaped plug and is slightly bigger than Micro-USB. It can be inserted either side up. Micro-USB can only be plugged in one way and has two hooks at the bottom to hold the cable in place  This is MICRO USB 5 pin is Type B Mike Patch Straight Plug Adapter. This Adapter Plate consists of an international Micro USB 2.0 B type 5 Pin Connector standard.

It is female micro-USB Plug mostly used to connect the smartphone data cable as well as charger or power supply adapters to interface with your application. It has a wide range of uses. This module is easily transformed into a conventional DIP 2.54mm pin, a great convenience to your application for multipurpose use.

Features:

1. Brand new and high quality.
2. Base Material: FR4.
3. Contact resistance: 30mΩ Max.
4. Insulation resistance: 100 MΩ min.
5. Dielectric strength: 500VAC one min.
6. Insulator material: LCP.

Package Include:

1× Micro USB 2.0 B type 5 Pin Connector-5Pcs.

The C016 20H003 100 12 is a 3 + PE-position male straight Cable Connector, C016 series, silver-plated contacts and black backshell, 0.75 to 2.5mm² wire gauge. In design and conception the Ecomate program meets the high requirements for applications in industrial technology. The series comprises a large selection of housings and shapes and offers models with screw termination.

Features:

1. Quick and easy to assemble
2. Ergonomically designed product range for safe handling
3. Housing components made from the premium molding material
4. >=10⁸R Insulation resistance
5. <=5mR Contact resistance
6. Protection class IP65/67 in the mated condition in accordance with DIN EN 60526

Specifications:

1. Product Range: Ecomate C016 Series
2. Circular Connector Shell Style: Cable Mount Plug
3. No. of Contacts: 4Contacts
4. Circular Contact Type: Screw Pin
5. Coupling Style: Threaded
6. Connector Body Material: Nylon (Polyamide) Body

Package Includes:

1 x C016 20H003 100 12-CIRCULAR CONNECTOR, PLUG, 3+PE

The 11949 is a 3-pole Power Entry Connector with maintenance-free screwless terminals. The splash-proof quick-connect surface-mount socket outlet features cable entry, one at the top (open), two at the bottom, and one rear entry (closed), the base of the enclosure can rotate 180⁰.

Features:

1. 50 to 60Hz Frequency
2. 6 hr Earthing position
3. 4 drill holes prestamped in the base of the enclosure

Specifications:

1. Current Rating: 32A
2. Voltage Rating VAC: 240V
3. Connector Mounting: Cable Mount
4. Electrical Connector Gender: Socket
5. Pin Configuration: 2P+E
6. Connector Colour: Blue
7. IP Rating: IP44

Package Includes:

1 x 11949-SOCKET SURF MT, 32A, 240V, 2P+

The 710W-00/01 is a type of power connector that is designed for power entry applications. It is a female connector that is used to connect power cords and cables to devices such as computers, appliances, and electronic equipment.

The 710W-00/01 connector has a maximum current rating of 10 amps and a maximum voltage rating of 250 volts AC. It is designed for use with a variety of cable sizes ranging from 0.75 mm² to 2.5 mm². The connector is equipped with a quick-connect terminal, which makes it easy to connect and disconnect the power cord.

The connector is made of high-quality materials that are designed to withstand a wide range of temperatures and environmental conditions. It is also designed to provide a secure and reliable connection, which helps to prevent accidental disconnections and ensure the safe operation of equipment.

Specifications:

1. IEC Connector Type: IEC C13 Outlet
2. Current Rating: 15A
3. Voltage Rating: 250VAC
4. Contact Termination Type: Quick Connect
5. Connector Mounting: Snap-In, Flange Mount

Packages Includes:

1 x 710W-00/01-CONNECTOR, POWER ENTRY, FEMALE

The T 3505 001 is a 8-position Female Cable Connector, C091A series, solder termination and silver-plated contacts. Nickel-plated die-cast housing, thermoplastic dielectric and metal screw locking system. This cable connector is designed for Ø4 to 6mm cable.

Features:

1. Internal strain relief
2. Good shielding effectiveness when mated and locked
3. >10¹°R Insulation resistance
4. <5mR Contact resistance
5. IP40 Protection rating
6. UL94V-0 Flammability rating

Specifications:

1. Product Range: C091A Series
2. Circular Connector Shell Style: Cable Mount Receptacle
3. No. of Contacts: 8 Contacts
4. Circular Contact Type: Solder Socket

Package Includes:

1 x T 3505 001-SOCKET, FREE, C091A, 8WAY

The FC684212 is a 2-way locking Shielded Plug is intended for low voltage and signal applications. These Cliffcon miniature ZC series plug with tin-plated contacts, brass body. Its contacts are touch-proof and meet the safety requirements of IEC 65/348. It features an easy, foolproof locking mechanism and high-reliability wiping contacts.

Features:

1. Safety leading ground pin which makes first and breaks last to prevent damage
2. Built-in cable clamp from 6 to 15mm
3. 1A Current rating
4. 48V Maximum voltage rating
5. Temperature range from -20°C to +70°C

Specifications:

1. Product Range: Cliffcon Miniature ZC Series
2. Circular Connector Shell Style: Cable Mount Plug
3. No. of Contacts: 2Contacts
4. Circular Contact Type: Solder Socket
5. Coupling Style: Threaded
6. Connector Body Material: Brass Body
7. Contact Plating: Tin

Package Includes:

1 x FC684212-PLUG, CLIFFCON, SHIELDED, 2WAY
