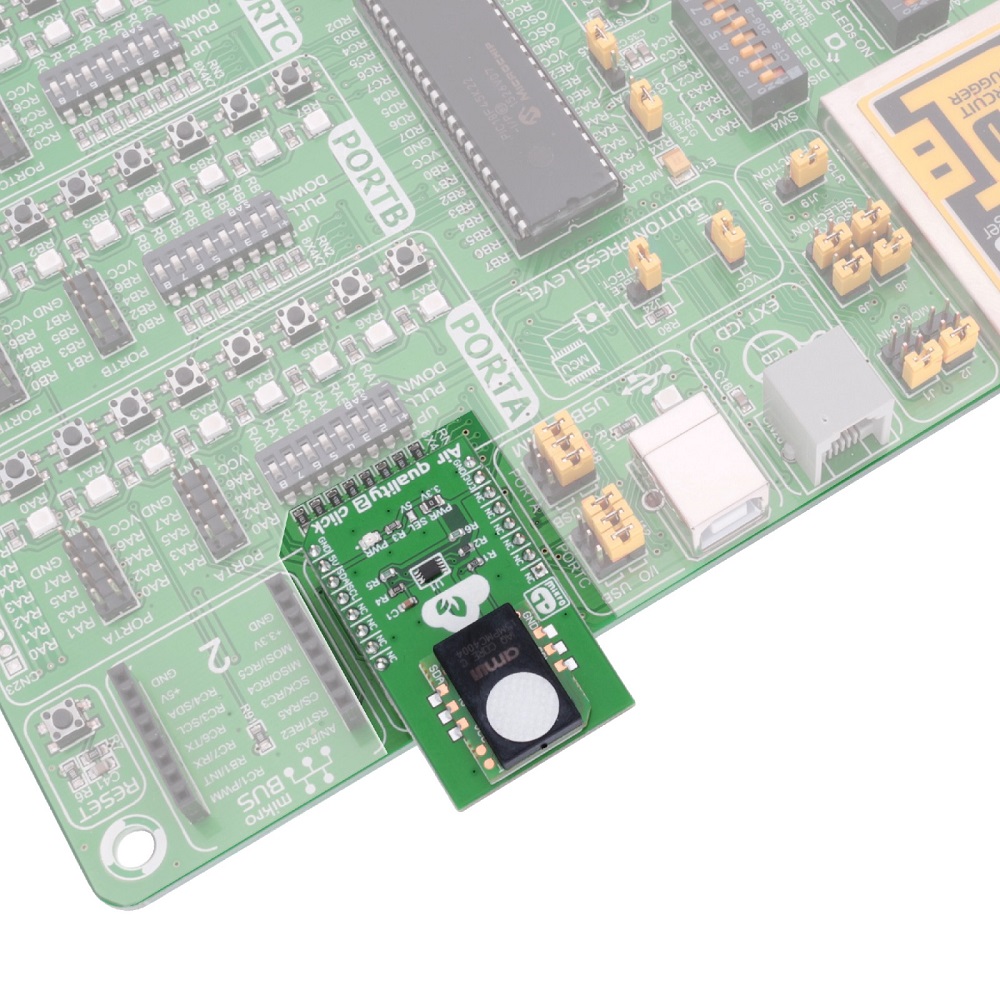

Mikroe AIR QUALITY 2 CLICK

12 People watching this product now!

SKU: rz24311630 Category: Gas and Dust Sensor

Description

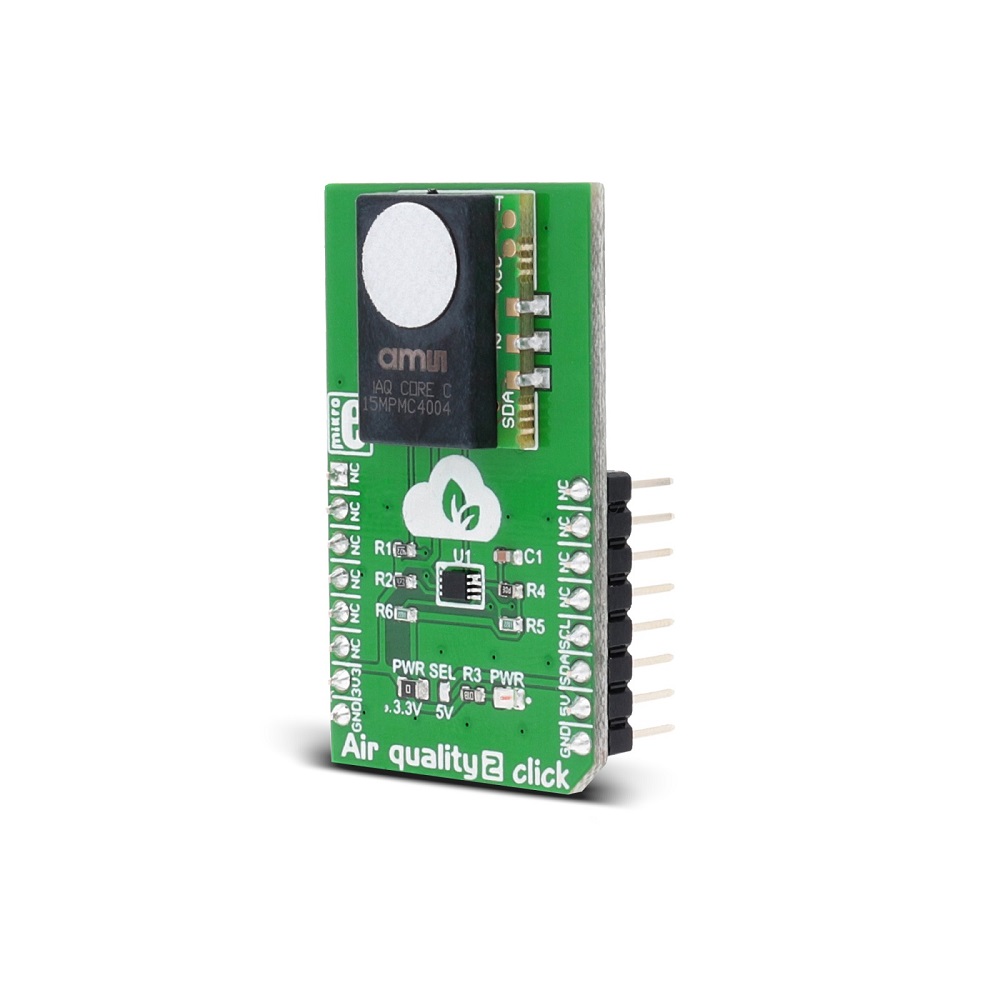

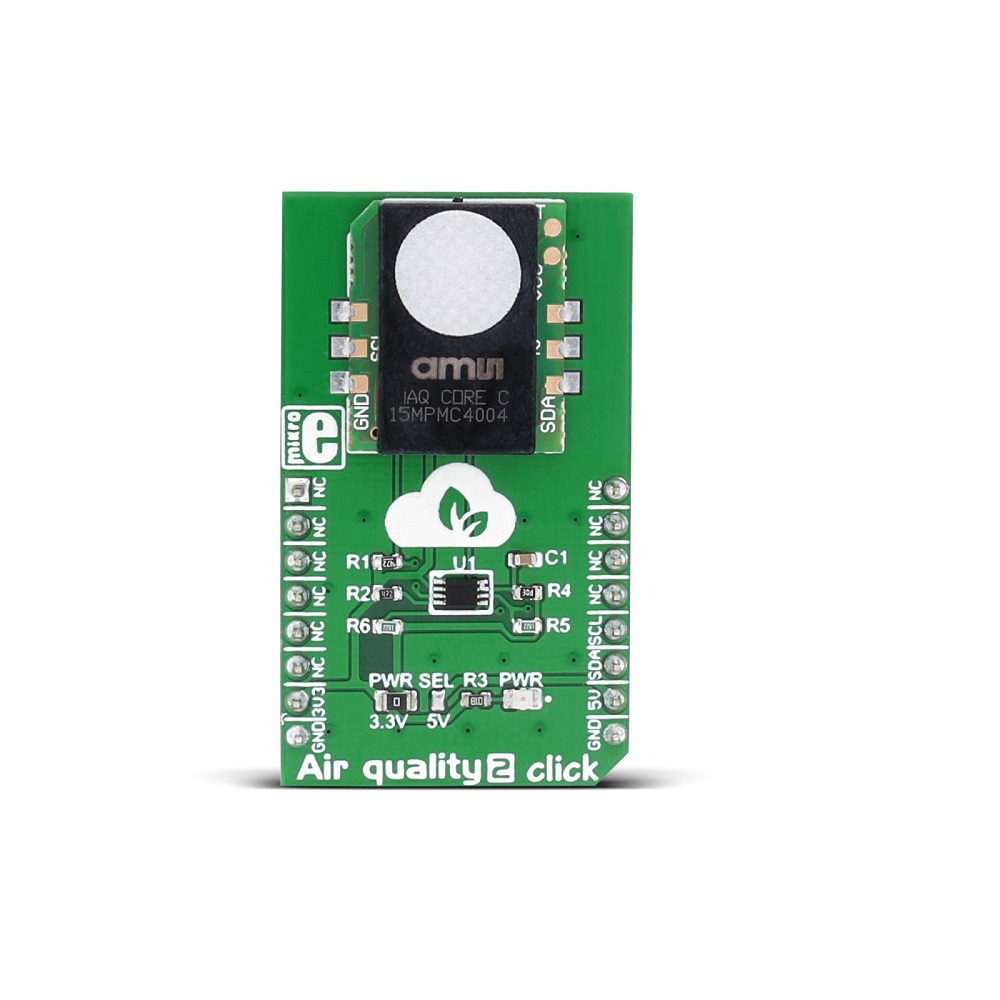

Air quality 2 click carries the iAQ-Core Indoor Air Quality sensor that measures VOC (volatile organic compounds) levels and provides CO2 equivalent and TVOC (total volatile organic compounds) equivalent predictions. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target MCU over I2C.

IAQ-CORE SENSOR

The sensor is protected by a plastic cap and a filter membrane. This membrane should not be removed or touched. The sensing range for CO2 equivalents is from 450 to 2000 ppm (parts per million), and from 125 to 600 ppb (parts per billion) for TVOC equivalents.

Applications: Smart Home applications, Internet of Things devices, HVAC, thermostats, etc.

Specifications and Faatues:

Type Air Quality ,Gas

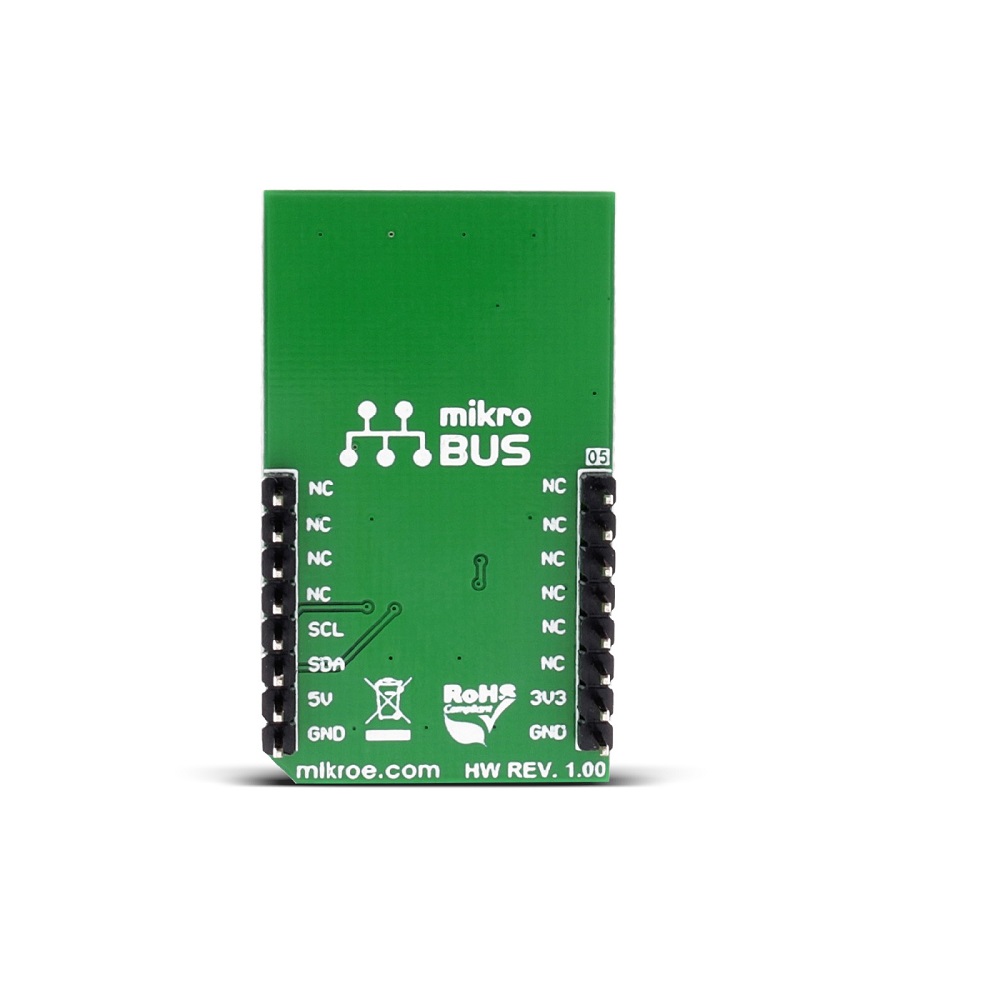

Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
Input Voltage 3.3V or 5V
On-board modules iAQ-Core sensor
Low power consumption,
Measures VOC levels and provides CO2 equivalent and TVOC equivalent predictions.
Interface I2C

Useful Links:

Click Boards

MikroBUS

Air quality 2 click example on Libstock

Air quality 2 click schematic

iAQ-Core sensor datasheet

Package Includes:

1 x Mikroe AIR QUALITY 2 CLICK
