Description

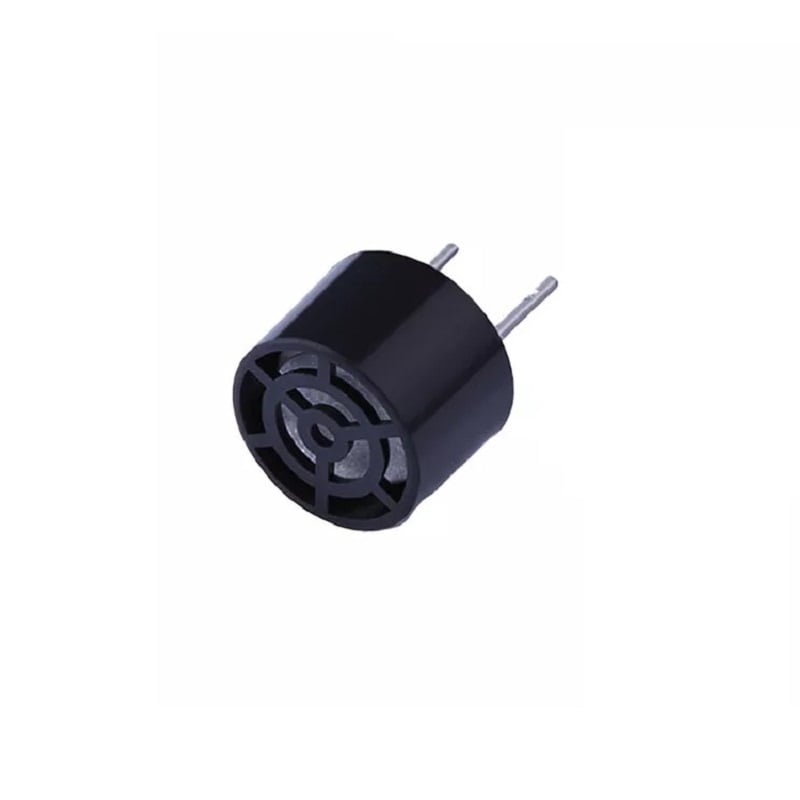

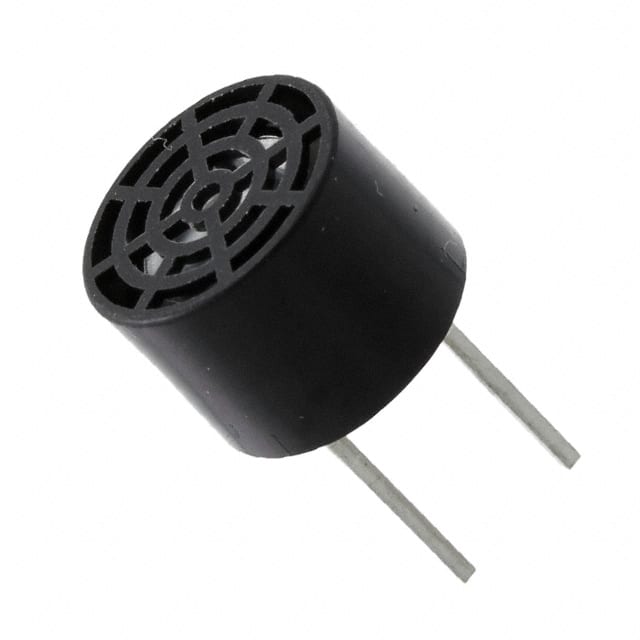

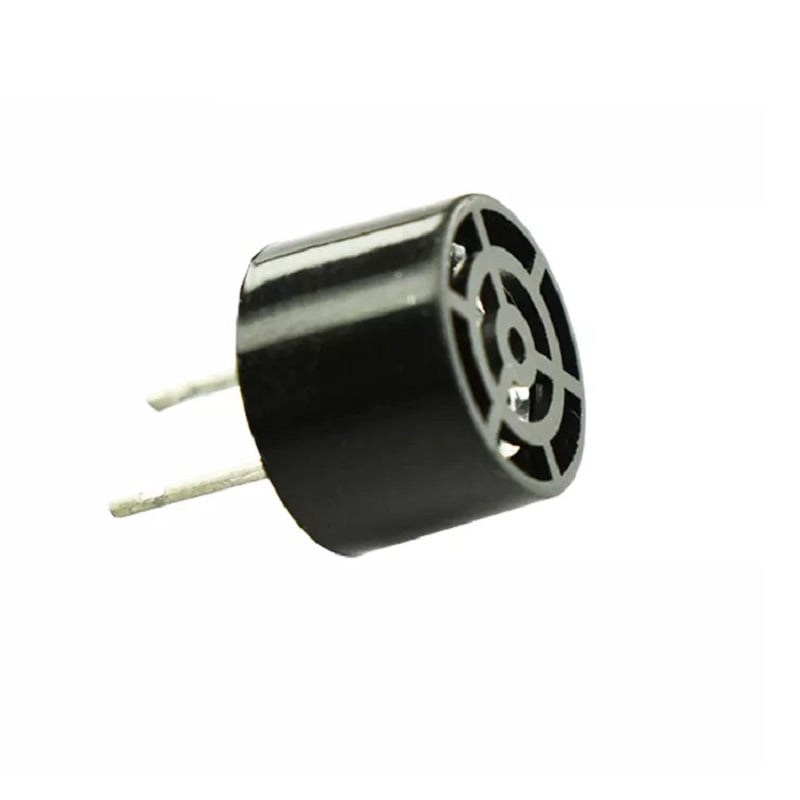

This is an Ultrasonic Sensor, Transceiver, 16 mm Diameter, 40 kHz, -74 dB, Plastic, Black, -30 degree C to 85 degrees C product from MULTICOMP pro with the model number MCUSD16P40B12RO

Features:

1. Open structure and dual-use
2.  Compact and lightweight
3.  High sensitivity and sound pressure
4.  Less power consumption
5. High reliability

Specifications:

1. Construction: Open struct
2. Using Method: Dual Use
3. Frequency: 40 ± 1kKz
4. Transmitting Sound Pressure Level: min. 112dB (30cm/10V rms Sine Wave)
5. Receive Sensitive: min-74dB/V/ μbar
6. -6dB Directivity: 50°
7. Aftershock Time: max. 1.5ms
8. Sensitivity Distance: 0.6m to 16m
9. Capacitance: 3,000pF 20% at1kHz
10. Soldering conditions: 350°C to 400°C
11. Operating Temperature. Range: -30°C to 85°C
12. Allowable Input Voltage: 120Vp-p (40kHz)
13. Housing Material: Plastic

Package Includes:

1 x MULTICOMP PRO Ultrasonic Sensor, Transceiver
