Description

An ultrasonic sensor is an electronic device that measures the distance of a target object by emitting ultrasonic sound waves, and converts the reflected sound into an electrical signal. Ultrasonic waves travel faster than the speed of audible sound (i.e. the sound that humans can hear).

Applications:

Applications include Burglar Alarms, Distance Measurement, Range Finders, Remote Controllers &
Robotics, etc.

Features:

1. High reliability

2. Compact and light weight

3. Open structure and dual use (Transmitter & Receiver)

4. High sensitivity and sound pressure
5. Less power consumption

Specification:

1. Center Frequency: 40 kHz
2. Housing Material: Aluminum, Silver
3. Operating Temperature: -35 °C to 85 °C
4. Detection Range:  0.7 to 18m

5. Diameter: 14 mm

Note: For info refer to Datasheet in Attachment section

Packages Includes:

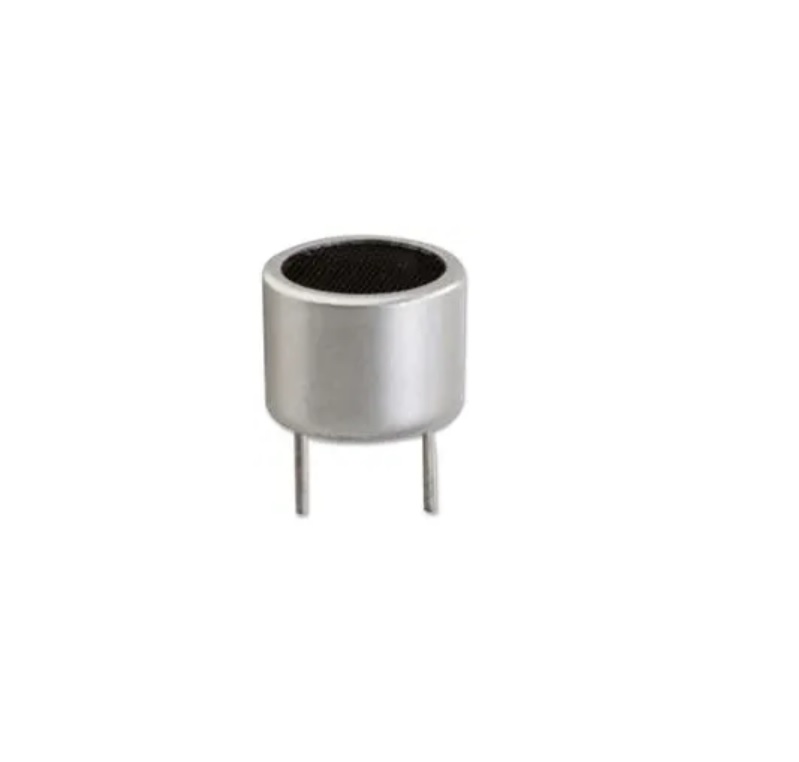

1 x MULTICOMP PRO Ultrasonic Sensor, Transmitter, 16 mm Diameter, 40 kHz
