NXP Daughter Board, Sensor Toolbox Shield Board, 3-axis Gyroscope, 6-axis Accelerometer/Magnetometer

3,364.01 (Including tax)

  1. Product: NXP Daughter Board, Sensor Toolbox Shield Board, 3-axis Gyroscope, 6-axis Accelerometer/Magnetometer
  2. Silicon Core Number: FXAS21002, FXOS8700
  3. Silicon Manufacturer:  NXP
  4. Accelerometer/Magnetometer: 6-axis



Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%3,195.81 (Including tax)
11 - 208%3,094.88 (Including tax)
21 - 4010%3,027.61 (Including tax)
41 - 10012%2,960.33 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

11 People watching this product now!
SKU: rz2436049 Categories: , ,
Description

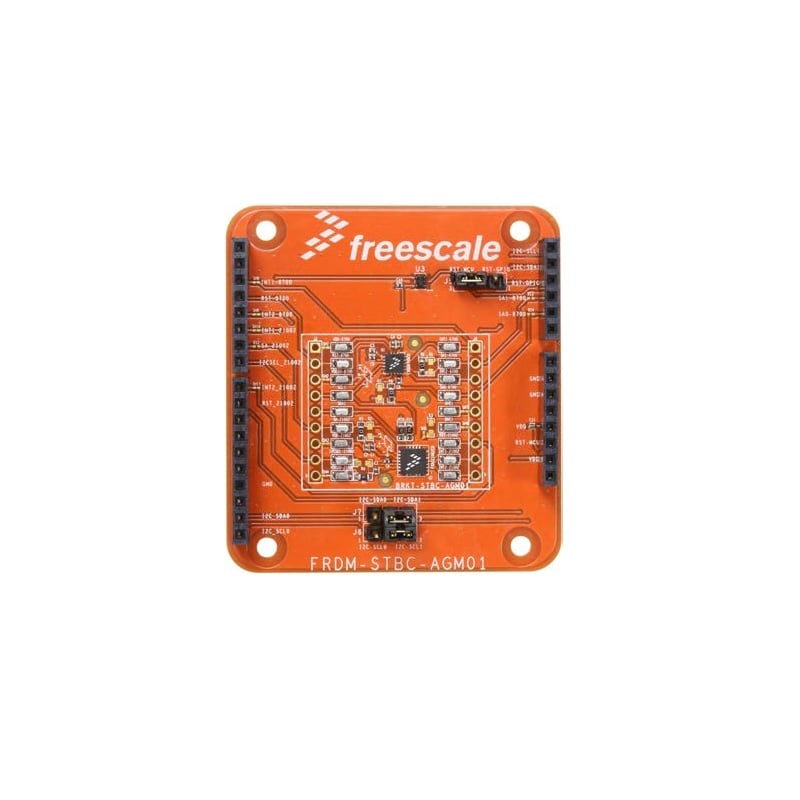

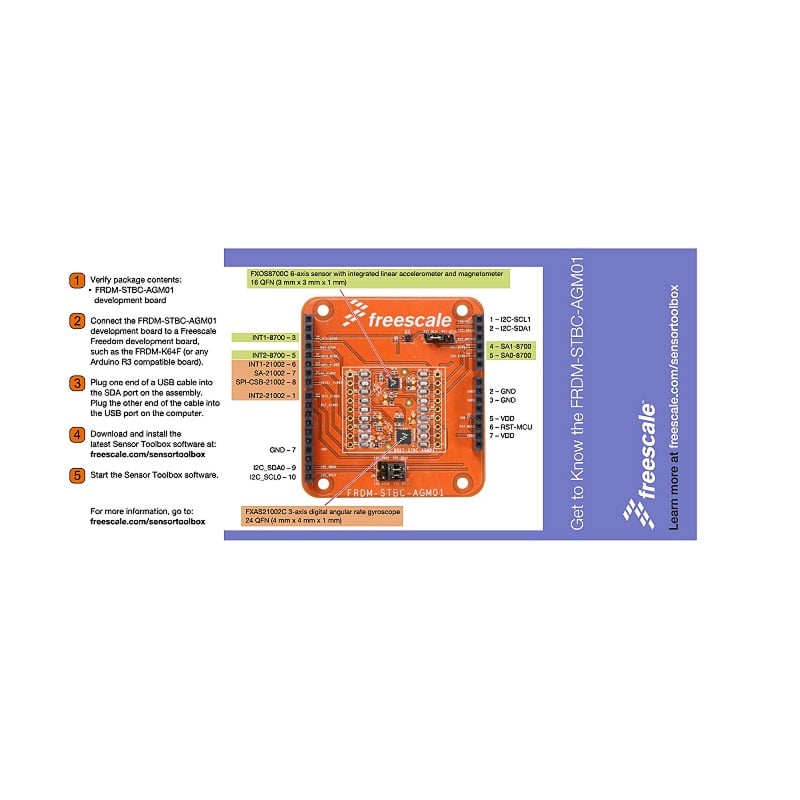

The FRDM-STBC-AGM01 is a development board for the FXAS21002C three axis gyroscope and the FXOS8700C integrated ecompass. The board enables 9 axis sensing and is supported by NXP’s Sensor Toolbox software, Intelligent Sensing Framework lSF 2.0 and the Sensor Fusion Library. The FXOS8700CQ is a small, low power, 3 axis, linear accelerometer and 3axis, magnetometer combined into a single package.

Applications:
  1. Sensing & Instrumentation,
  2. Embedded Design & Development

Features:

  1. Onboard FXOS8700CQ six axis sensor with integrated linear accelerometer and magnetometer
  2. Onboard FXAS21002C 3 axis digital angular rate gyroscope
  3. Compatible NXP FRDM-K22F, FRDM-K64F, FRDM-KL25Z, FRDM-KL26Z Freedom development boards
  4. 18 test points

Package Includes:

1 x NXP Daughter Board, Sensor Toolbox Shield Board, 3-axis Gyroscope, 6-axis Accelerometer/Magnetometer

Additional information
Model

FRDM-STBC-AGM01

Silicon Core Number

FXAS21002

,

FXOS8700

Silicon Manufacturer

NXP

Gyro

3-axis

Accelerometer/Magnetometer

6-axis

For Use With

NXP Freedom Development Platform Boards
