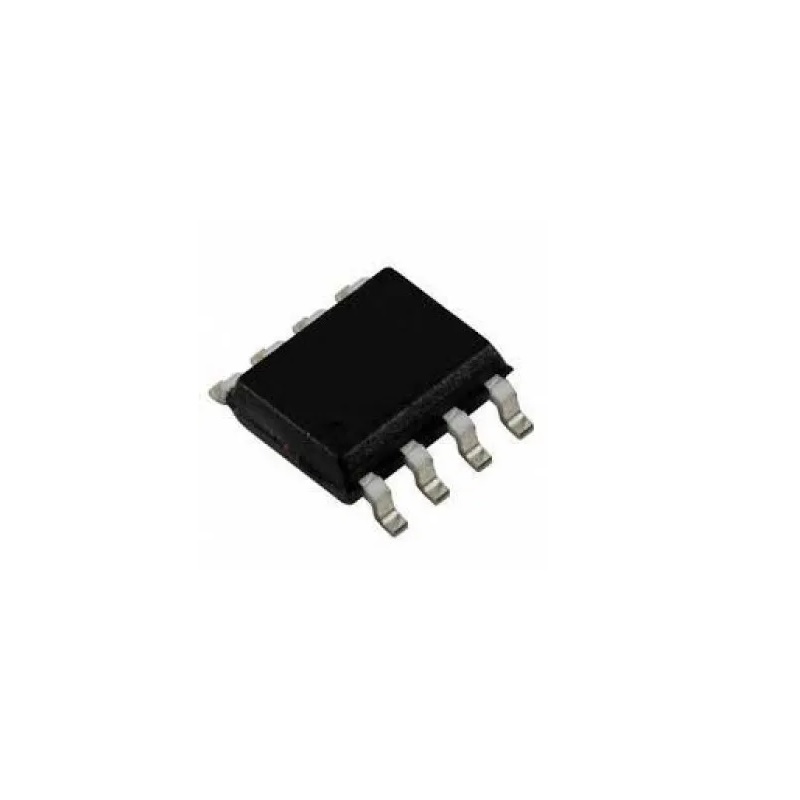

PCF8563M/TR IC – (SMD SOP-8 Package) – Real Time Clock (RTC) and Calendar IC

₹88.21 (Including tax)

Clock operating voltage: 1.0 V to 5.5 V at room temperature
Low backup current; typical 0.25 A at VDD = 3.0 V and Tamb = 25 Degree C
400 kHz two-wire I2C-bus interface (at VDD = 1.8 V to 5.5 V)
Programmable clock output for peripheral devices

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹83.79 (Including tax)
11 - 20	8%	₹81.15 (Including tax)
21 - 40	10%	₹79.38 (Including tax)
41 - 100	12%	₹77.62 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

15 People watching this product now!

SKU: rz24321481 Categories: Clock, Timer and Counter ICs

Description

The PCF8563 is a CMOS real-time clock/calendar optimized for low power consumption. A programmable clock output, interrupt output and voltage-low detector are also provided. All addresses and data are transferred serially via a two-line bidirectional I2C-bus. The maximum bus speed is 400 kbit/s. The built-in word address register is incremented automatically after each written or read data byte.

Application:

Mobile telephones
Portable instruments
Electronic metering
Battery-powered products

Features:

Alarm and timer functions
Integrated oscillator capacitor
Internal power-on reset
I2C-bus slave address: read A3h and write A2h
Open-drain interrupt pin

Package Includes:

1 x PCF8563M/TR IC – (SMD SOP-8 Package) – Real Time Clock (RTC) and Calendar IC

Additional information

Operating Voltage(V)	1.8-5.5
Interface Type	I2C
Length (mm)	12
Width (mm)	8.3
Height (mm)	2.2
Weight (gm)	3
