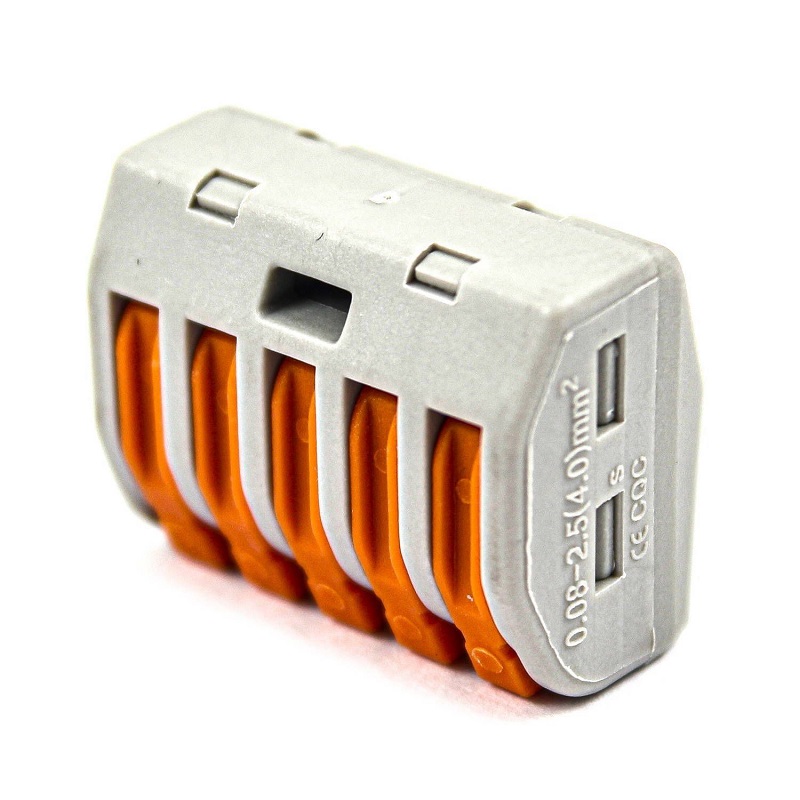

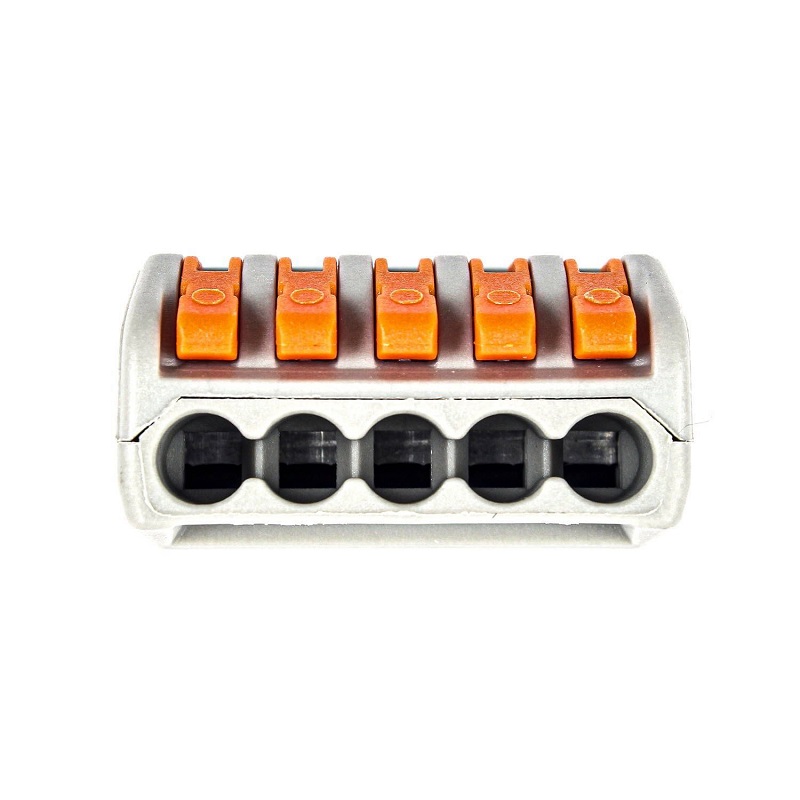

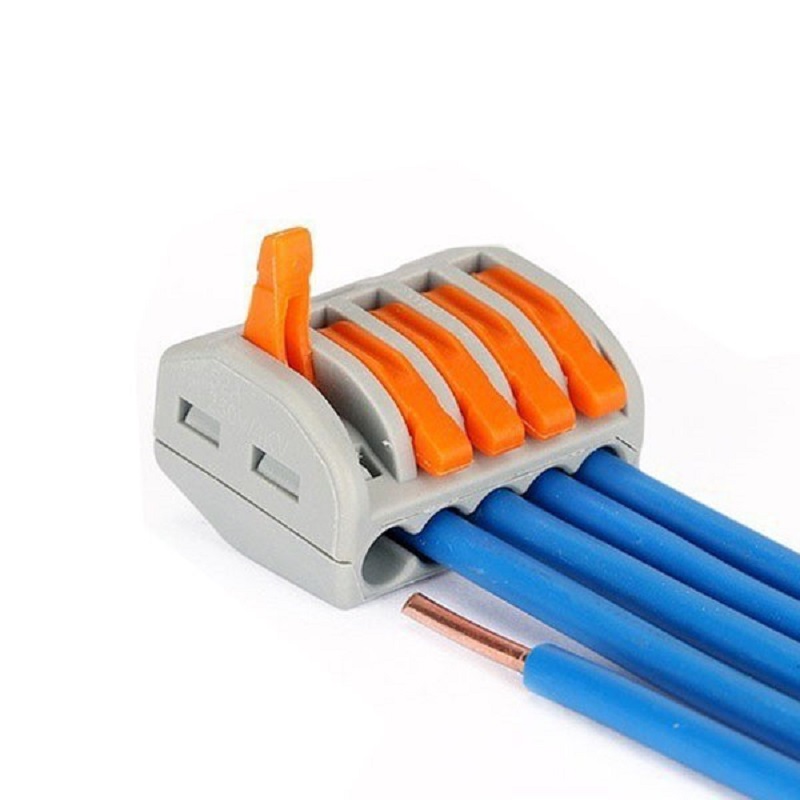

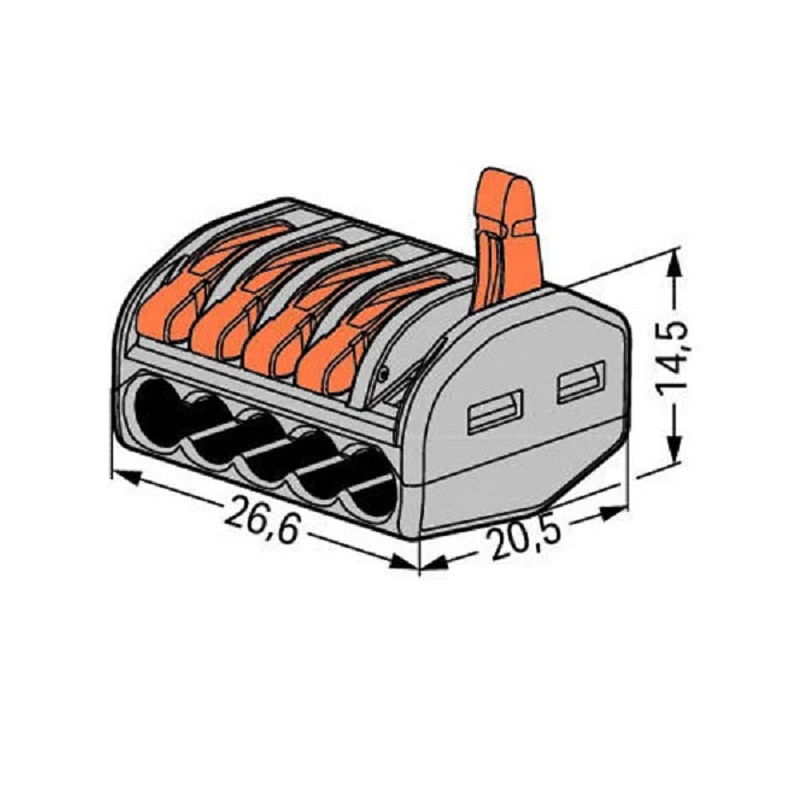

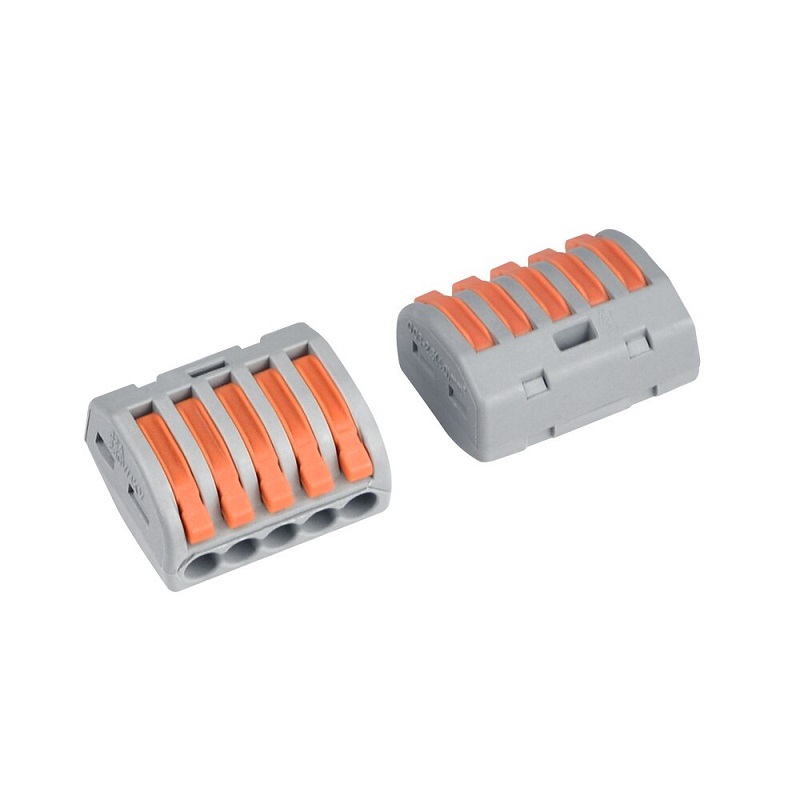

This is a PCT-215 0.08-2.5mm 5 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector [212, 213, 215, 215, 218] package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, resulting in a maximum of 7KW Power.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

• PCT-212 is a Two-wire connector
• PCT-213 is a Three-wire connector
• PCT-214 is a Four-wire connector
• PCT-215 is a Five wire connector
• PCT-218 is an Eight-wire connector
• CH-812 is a Two to Two-wire connector
• CH-813 is Three to Three wire connector
• CH-2-4 is a Four to Two-wire connector
• CH-2-6 is a Six to Two-wire connector
• PCT-223-8 Stationary Type Quick Connector
• LT-633(SPL-63) Stationary Type Quick Connector
• LT-933(SPL-93) Stationary, Type Quick Connector
• PCT-223-10 Stationary Type, Quick Connector
• PCT-223-12 Stationary Type, Quick Connector
• PCT-223-3 Stationary Type Quick Connector
• PCT-223-4 Stationary Type Quick Connector
• PCT-224D Guide Rail Type, Quick Connector
• PCT-225D Guide Rail Type Quick Connector
• PCT-225(SPL-5) Quick Connector

Features:

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 4-Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x PCT-215 0.08-2.5mm 5 Pole Wire Connector Terminal Block

The PX0730/P is a 3-way front panel-mount Circular Connector with screw termination and pin contacts. This Buccaneer standard series plug mates with flexible cable connector and single hole fixing.

Features & Specifications:

1. Water and dustproof to IP68 when mated
2. Compact design
3. Positive locating keyways
4. Colour coded identification variants
5. Easy assembly

Package Includes:

1 x PX0730/P-Circular Connector, Buccaneer Standard Series, Panel Mount Plug, 3 Contacts, Screw Pin

Features:

The DG130-5.08-02P is a type of PCB (Printed Circuit Board) terminal block that is commonly used for electrical connections in electronic devices or machinery. This particular terminal block is designed with a pitch of 5.08mm, which refers to the distance between the center of each pin. It also has a green color for easy identification.

The terminal block is rated for a maximum current of 20A and a voltage rating of 250V. It is built to withstand high voltages and currents, making it a reliable and safe choice for electrical connections.

The connector method for this terminal block is a screw connector with a tension sleeve. This allows for easy and secure connection of wires, ensuring that they stay in place even in high-vibration environments.

The terminal block is designed to work with wires that have a cross-sectional area of 0.5-2.5mm². This means that it can accommodate a range of wire sizes and can be used for various applications.

In terms of the contact surface, the DG130-5.08-02P terminal block is coated with tin, which enhances its conductivity and resistance to corrosion. This ensures a stable and reliable electrical connection over time.

Features:

1. Rated current of 20A: The terminal block can handle a maximum current of 20 amperes, making it suitable for many applications.
2. Rated voltage of 250V: The terminal block is designed to work with a maximum voltage of 250 volts, which makes it suitable for many electronic devices and machinery.
3. The cross-sectional area of 0.5-2.5mm²: The terminal block can accommodate wires with a range of sizes, making it versatile for various applications.
4. Pitch of 5.08mm: The distance between the center of each pin is 5.08mm, making it compatible with other devices that have the same pitch.
5. Connector method of screw connector with tension sleeve: The terminal block uses a screw connector with a tension sleeve, which makes it easy to connect and secure wires.
6. Color-coded green: The terminal block has a green color, which helps with easy identification and differentiation from other components.
7. Contact surface coated with tin: The contact surface of the terminal block is coated with tin, which enhances conductivity and protects against corrosion.

Specifications:

1. Rated current: 20A
2. Rated voltage: 250V
3. Cross-sectional area: 0.5-2.5mm²
4. Pitch: 5.08mm
5. Connector method: Screw connector with tension sleeve
6. Color: Green
7. Contact surface: Tin-coated
8. Number of positions: 2
9. Mounting type: Through-hole
10. Termination: Solderable
11. Wire entry direction: 90°
12. Housing material: Polyamide (PA)
13. Flammability rating: UL94V-0
14. Operating temperature range: -40°C to +105°C
15. Wire stripping length: 7mm

Package Includes:

1 x Degson 2 Pin 5.08mm PCB Terminal Block

The DG301-5.0-02P is a PCB terminal block manufactured by Degson and designed for use in electrical circuits. It features a screw connector with wire protection, allowing for secure and reliable connections. The terminal block has a pitch of 5.0mm, which is the distance between adjacent terminals. This pitch size is suitable for a variety of applications.

The terminal block is rated for a maximum current of 17.5A and a maximum voltage of 250V. The voltage rating is classified as III/2, indicating that it is suitable for use in circuits with overvoltage category III and pollution degree 2. This makes it ideal for use in industrial environments where the electrical equipment may be subjected to high levels of electrical noise or contamination.

The cross-sectional area of the wire that can be accommodated by this terminal block is 1.5mm². The contact surface is made of tin, which provides good conductivity and resistance to corrosion. The terminal block is colored blue for easy identification.

Features:

1. Screw connector with wire protection: The terminal block features a screw connector that provides a secure and reliable connection for wires. The wire protection helps prevent damage to the wire during installation and use.
2. Pitch size: The pitch size of the terminal block is 5.0mm, which is suitable for a wide range of applications.
3. Current and voltage ratings: The terminal block is rated for a maximum current of 17.5A and a maximum voltage of 250V. This makes it suitable for use in a variety of electrical circuits.
4. Overvoltage category and pollution degree: The terminal block is classified as III/2, indicating that it is suitable for use in circuits with overvoltage category III and pollution degree 2. This makes it ideal for use in industrial environments where the electrical equipment may be subjected to high levels of electrical noise or contamination.
5. Wire size compatibility: The terminal block is designed to accommodate wires with a cross-sectional area of 1.5mm².
6. Contact surface: The contact surface of the terminal block is made of tin, which provides good conductivity and resistance to corrosion.
7. Color: The terminal block is colored blue for easy identification.

Specifications:

1. Model number: DG301-5.0-02P
2. Connector method: Screw connector with wire protection
3. Pitch size: 5.0mm
4. Rated voltage: 250V (III/2)
5. Rated current: 17.5A
6. Wire size compatibility: 1.5mm²
7. Contact surface material: Tin
8. Color: Blue
9. Number of positions: 2
10. Mounting type: Through-hole
11. Operating temperature range: -40°C to +105°C

Package Includes:

1 x Degson 2 Pin 5 mm PCB Terminal Block

The Degson DG332W-5.0-02P is a pluggable terminal block used for connecting wires to a printed circuit board or another device. It is designed for a rated current of 12A and a rated voltage of 250V.

The terminal block features a pitch of 5.0mm, which refers to the distance between the centers of adjacent pins. It has a screw connector with wire protection, which means that wires are secured by tightening the screws on the connector to make a secure electrical connection. The wire protection feature ensures that the wires do not come loose or pull out of the connector.

The cross-section of the wire that can be connected to the terminal block is 1.5mm², which refers to the area of the wire’s cross-section. The connector has a green color, which can be used to identify the specific circuit or function that it is connected to.

Specifications and Features:

1. Number of Pins: 2
2. Pitch: 5.0mm
3. Rated voltage: 250V
4. Rated current: 12A
5. Wire gauge: 26-16 AWG
6. Insulation material: PA66, UL94V-0
7. Contact plating: Tin
8. Operating temperature: -40°C to +105°C (-40°F to +221°F)
9. Wire connection method: Screw connection with wire protection
10. Color: Green

Package Includes:

1 x Degson 2 Pin 5.0mm Pitch Pluggable Terminal Block
