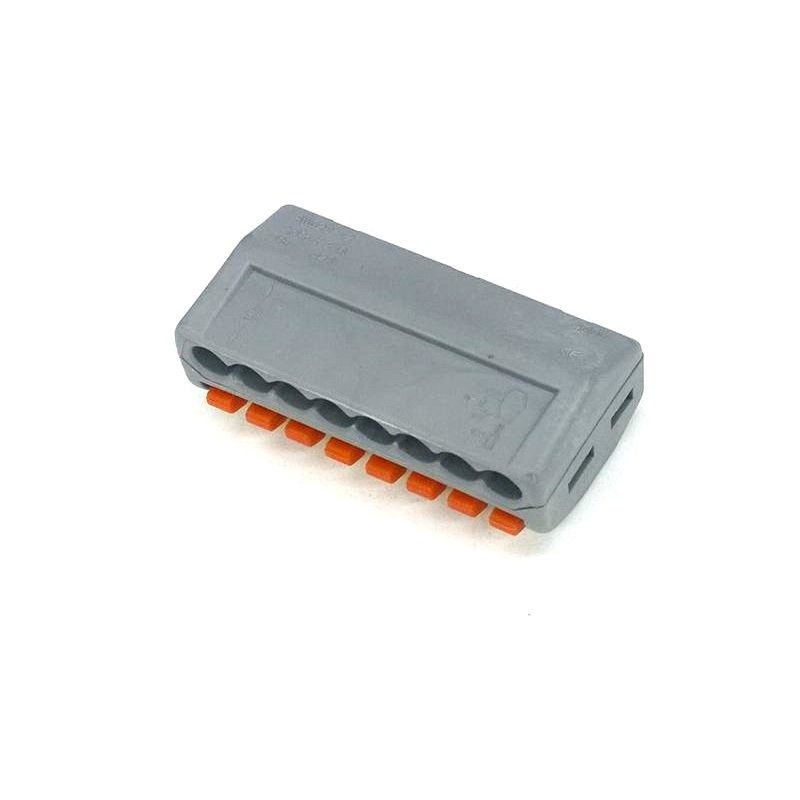

This is a PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector [212, 213, 215, 215, 218] package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

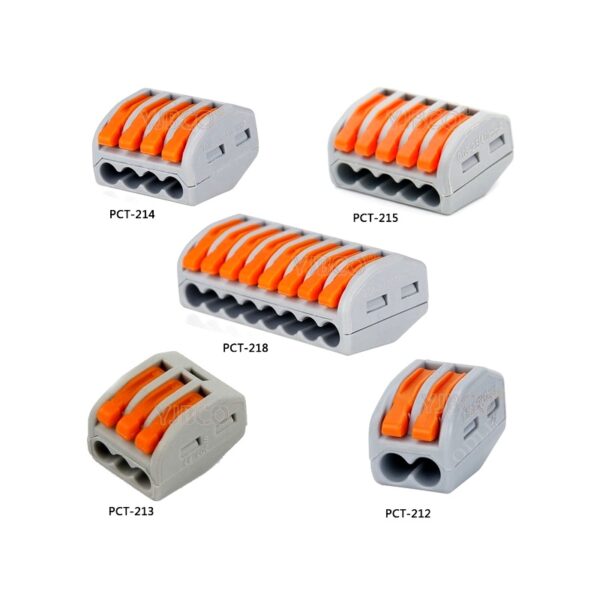

• PCT-212 is a Two-wire connector
• PCT-213 is a Three-wire connector
• PCT-214 is a Four-wire connector
• PCT-215 is a Five wire connector
• PCT-218 is an Eight-wire connector
• CH-812 is a Two to Two-wire connector
• CH-813 is Three to Three wire connector
• CH-2-4 is a Four to Two-wire connector
• CH-2-6 is a Six to Two-wire connector

Features:

1. High-grade Insulative Nylon Material
2. Strong Spring Locking Lever
3. Nickel Plated Metal Point Inside
4. Good Temperature Resistance
5. Compact Splicing Connector
6. 4-Conductor Terminal Block
7. With Operating Levers
8. Max. Continuous Service Temperature 85°C

Package Includes:

1 x PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block

The FC684212 is a 2-way locking Shielded Plug is intended for low voltage and signal applications. These Cliffcon miniature ZC series plug with tin-plated contacts, brass body. Its contacts are touch-proof and meet the safety requirements of IEC 65/348. It features an easy, foolproof locking mechanism and high-reliability wiping contacts.

Features:

1. Safety leading ground pin which makes first and breaks last to prevent damage
2. Built-in cable clamp from 6 to 15mm
3. 1A Current rating
4. 48V Maximum voltage rating
5. Temperature range from -20°C to +70°C

Specifications:

1. Product Range: Cliffcon Miniature ZC Series
2. Circular Connector Shell Style: Cable Mount Plug
3. No. of Contacts: 2Contacts
4. Circular Contact Type: Solder Socket
5. Coupling Style: Threaded
6. Connector Body Material: Brass Body
7. Contact Plating: Tin

Package Includes:

1 x FC684212-PLUG, CLIFFCON, SHIELDED, 2WAY

The T 3505 001 is a 8-position Female Cable Connector, C091A series, solder termination and silver-plated contacts. Nickel-plated die-cast housing, thermoplastic dielectric and metal screw locking system. This cable connector is designed for Ø4 to 6mm cable.

Features:

1. Internal strain relief
2. Good shielding effectiveness when mated and locked
3. >10¹°R Insulation resistance
4. <5mR Contact resistance
5. IP40 Protection rating
6. UL94V-0 Flammability rating

Specifications:

1. Product Range: C091A Series
2. Circular Connector Shell Style: Cable Mount Receptacle
3. No. of Contacts: 8 Contacts
4. Circular Contact Type: Solder Socket

Package Includes:

1 x T 3505 001-SOCKET, FREE, C091A, 8WAY

The CPC series 1 (Size 1) from TE Connectivity is a circular plug and receptacle connector housing with cable or panel mount features. These connectors accept Type III+, high current power, Type II, and subminiature coaxial contacts.

Features & Specifications:

1. Receptacles are available with a square flange and free-hanging mounting
2. Standard and reverse connections
3. UL 94-V0 rated black color thermoplastic housing
4. Available with a variety of insert arrangements

Package Includes:

1 x 206305-1- Circular Connector, CPC Series 1, Cable Mount Plug, 37 Contacts, Crimp Pin – Contacts Not Supplied

The PX0736/P from Bulgin is a standard Buccaneer, black colour circular flex cable plug connector with 2 pin contacts. This connector has compact design and easy assembly. No special tools are required for screw termination. It mates with in-line flex or panel mounting female connectors.

Note: For  more technical details go through Datasheet in the attachment section

Features:

1. Screw locking ring
2. Standard cable acceptance from 6mm to 8mm
3. IP68 and IP69K degree of protection
4. Current rating of 12A
5. Voltage rating of 277VAC / VDC
6. UL, CSA, CCC, and VDE approved
7. Contact resistance is less than 10mohm
8. Operating temperature range from -20°C to 70°C
9. UL94 HB rated glass filled polyamide body molding
10. Nickel-plated brass contacts

Specifications:

1. Current rating: 12A
2. Voltage rating: 277VAC / VDC
3. UL, CSA, CCC, and VDE approved
4. Contact resistance is less than : 10 mohm

Package Includes:

1 x PX0736/P-CIRCULAR CONNECTOR, PLUG, 2 WA

The PX0730/P is a 3-way front panel-mount Circular Connector with screw termination and pin contacts. This Buccaneer standard series plug mates with flexible cable connector and single hole fixing.

Features & Specifications:

1. Water and dustproof to IP68 when mated
2. Compact design
3. Positive locating keyways
4. Colour coded identification variants
5. Easy assembly

Package Includes:

1 x PX0730/P-Circular Connector, Buccaneer Standard Series, Panel Mount Plug, 3 Contacts, Screw Pin
