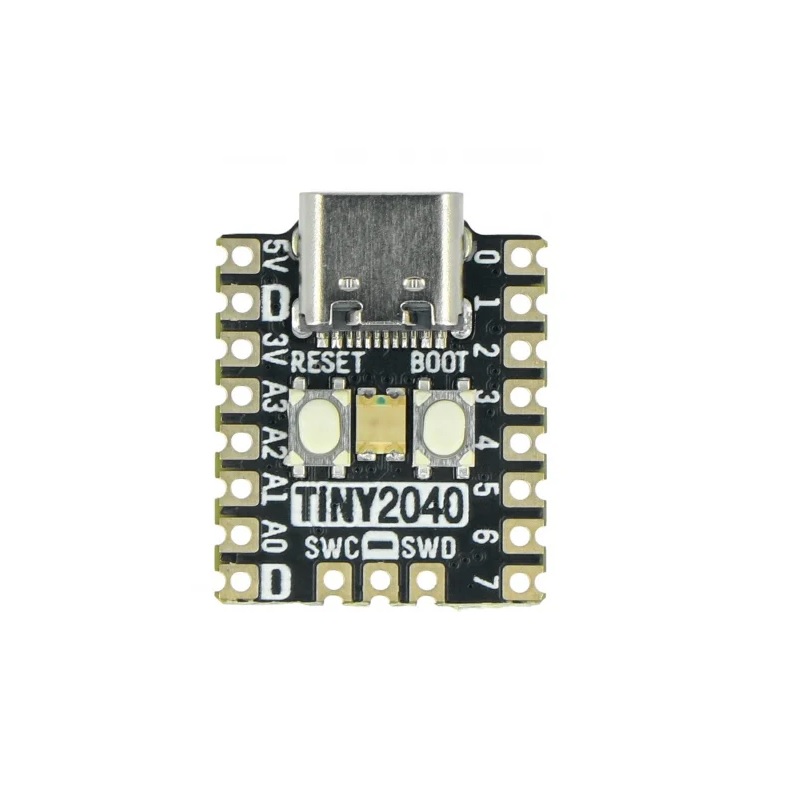

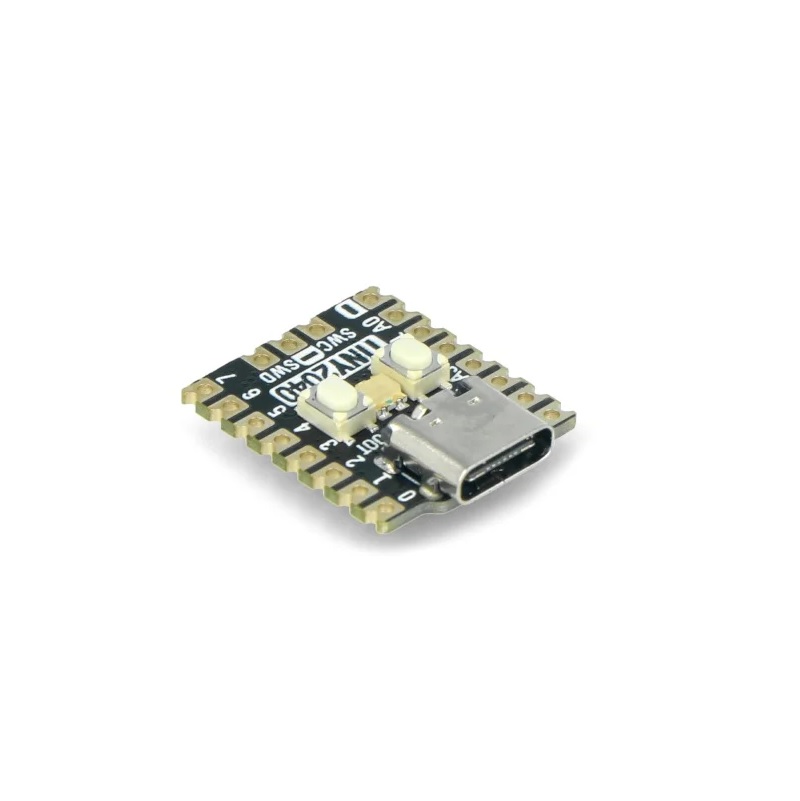

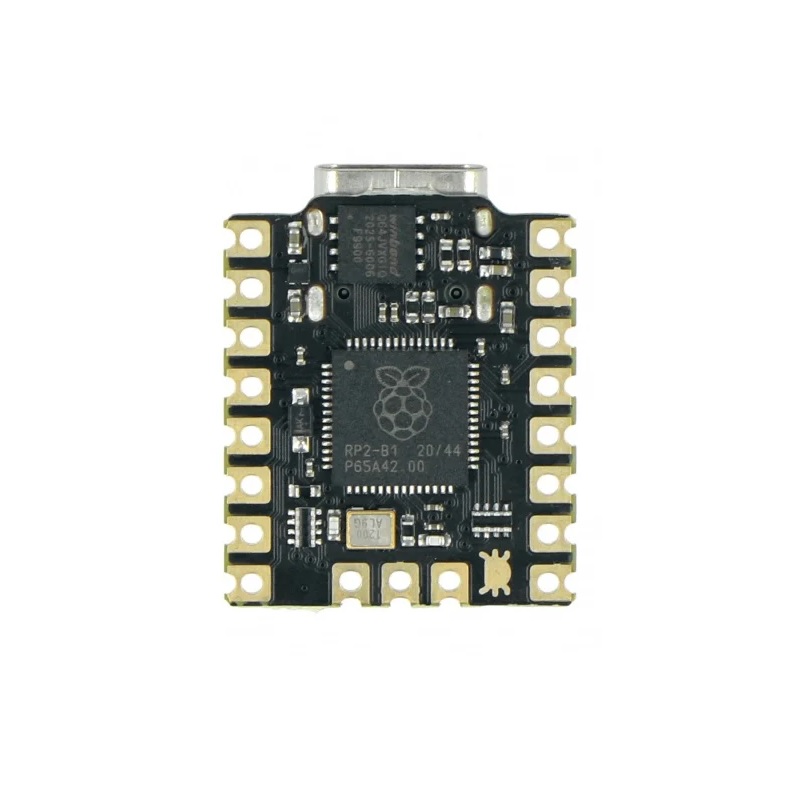

PIMORONI Tiny 2040

14 People watching this product now!

SKU: rz24323781 Category: Development Board/Kit

Description

The Tiny 2040 – a teeny tiny powerhouse with the chops to realize truly ambitious projects. Powered and programmable via USB-C, Tiny 2040 comes with 8MB of QSPI flash on board so it can handle projects small and large with ease. The board is designed with castellated pads to allow it to be directly soldered onto a PCB or alternatively, that can use pin headers to hook it up on a breadboard or directly with wires. It is even managed to fit in a programmable RGB LED, a reset button, and some clever circuitry that uses the boot button as a user-controllable switch.

It’s compatible with firmware built for the Raspberry Pi Pico but offers a reduced number of pins due to its size.

Features:

Powered by RP2040
User controllable RGB LED
USB-C connector for power, programming, and data transfer
Onboard 3V3 regulator

Package Includes:

1 x PIMORONI Tiny 2040

Additional information

Model Type	Tiny 2040
Input Voltage(Recommended)	3-5.5
Flash Memory	8 MB
SRAM	264
Voltage Regulator	300mA at @3.3V
Total I/O pins	12
