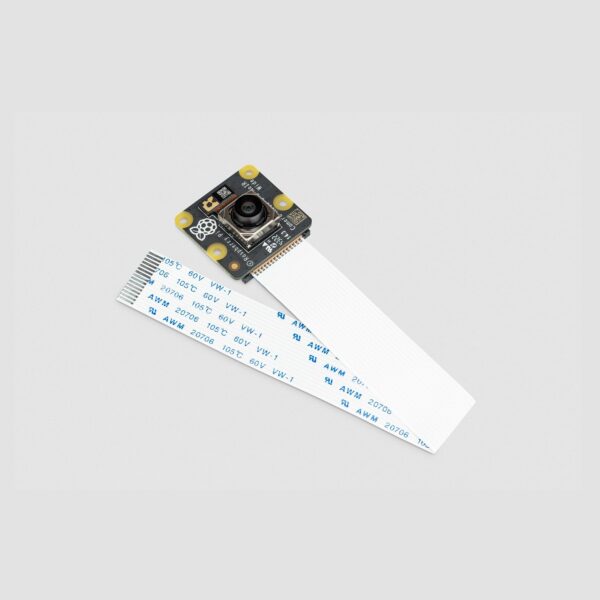

Raspberry Pi Camera Module 3 NoIR – Wide

SKU: rz2436704
In Stock


  1. Variants: NoIR-Wide
  2. Powered autofocus.
  3. Sensor: SONY IMX708
  4. Resolution: 12 Megapixel
  5. Viewing Angle: 120º
  6. Improved low-light sensitivity.


In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free


After a long wait of almost 7 years, the Raspberry Pi released the camera-3 series, the successor to the Camera module 2 series. This newest addition of Raspberry Pi Camera 3 NoIR  to the Raspberry Pi mainstream camera lineup replaces the wildly successful Camera Module 2, which was introduced in April 2016.

The all-new Raspberry Pi Camera 3 Standard/Wide is a camera for Raspberry Pi computers. Featuring autofocus and a 12-megapixel sensor and supported by Raspberry Pi’s Picamera2 Python library, Camera Module 3 gives you excellent image quality with precise control.
Raspberry Pi Camera 3 NoIR came up with significant improvements over Camera Module 2, which is built around a 12-megapixel Sony IMX708 image sensor. Additionally, Camera Module 3 is offered with a normal (76°) or wide-angle (120°) lens, as well as in regular and infrared-sensitive (NoIR) versions.

  • The standard variant is designed to take pictures in normal light.
  • The NoIR variant doesn’t have an infrared filter, so you can use it together with an infrared light source to take pictures in the dark.


  • Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
  • High signal-to-noise ratio (SNR)
  • Built-in 2D Dynamic Defect Pixel Correction (DPC)
  • Phase Detection Autofocus (PDAF) for rapid autofocus
  • QBC Re-mosaic function
  • HDR mode (up to 3-megapixel output)
  • CSI-2 serial data output
  • 2-wire serial communication (supports I2C fast mode and fast-mode plus)
  •  2-wire serial control of focus mechanism
  • Improved low-light sensitivity.
  • High dynamic range (HDR) support.
  • Sony IMX708 12MP sensor with 12C-controlled focus actuator
  • Large 7.4mm diagonal sensor
  • Resolution: 12 Megapixel
  • Diagonal Viewing Angle: 76º
  • Compatible with all models of Raspberry Pi*

*Note: To connect with Raspberry Pi Zero models this camera requires a special camera cable. Buy Now

Package Includes:

1 x Raspberry Pi Camera 3 NoIR – Wide

All Variants:

SKU Product Name Click to Open
1441079 Raspberry pi Camera 3 View
1445416 Raspberry pi Camera 3 Noir View
1445417 Raspberry pi Camera 3 Wide Noir View
1445388 Raspberry pi Camera 3 Wide View
1445389 Raspberry pi HQ Camera – M12 Mount View



Additional information


Camera Module 3 (NoIR-Wide)



Viewing Angle


Compatible with

All models of Raspberry Pi*


11.9 Megapixel

Sensor Size

7.4mm sensor diagonal

Pixel Size

1.4μm × 1.4μm


4608 × 2592 pixels

Common Video Modes

1080p50, 720p100, 480p120



IR Cut Filter

Integrated in standard variants; not present in NoIR variants

Autofocus System

Phase Detection Autofocus


25 × 24 × 11.5mm (12.4mm height for Wide variants)

Ribbon Cable Length


Cable Connector

15 × 1mm FPC
