Raspberry Pi HQ Camera – M12 Mount

SKU: rz2436690
In Stock

5,349.00

  1. Variant: M12 Mount
  2. Sensor: Sony IMX477R stacked, back-illuminated sensor
  3. Resolution: 12.3 megapixels
  4. Sensor size: 7.9mm sensor diagonal
  5. Pixel size: 1.55μm × 1.55μm
  6. Output: RAW12/10/8, COMP8











In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

After a long wait of almost 7 years, the Raspberry Pi released the camera-3 series, the successor to the Camera module 2 series. This newest addition to the Raspberry Pi mainstream camera lineup replaces the wildly successful Camera Module 2, which was introduced in April 2016.

Along with the Camera-3 series, Raspberry pi also upgraded their M12 Mount and CS mount HQ release in 2020 with the latest Sony IMX477 12.3 MP sensor.



Raspberry Pi HQ Camera - M12 Mount

The Raspberry Pi High-Quality Camera is an affordable high-quality camera from Raspberry Pi. It offers a 12-megapixel resolution and a 7.9mm-diagonal sensor for impressive low-light performance. The M12 Mount variant is designed to work with most interchangeable M12 lenses, and the CS Mount variant is designed to work with interchangeable lenses in both CS- and C-mount form factors (C-mount lenses require the use of the C-CS adapter included with this variant). Other lens form factors can be accommodated using third-party lens adapters.

The High-Quality Camera is well suited to industrial and consumer applications, including security cameras, which require the highest levels of visual fidelity and/ or integration with specialist optics. It is compatible with all models of Raspberry Pi
computers from Raspberry Pi 1 Model B onwards, using the latest software release from

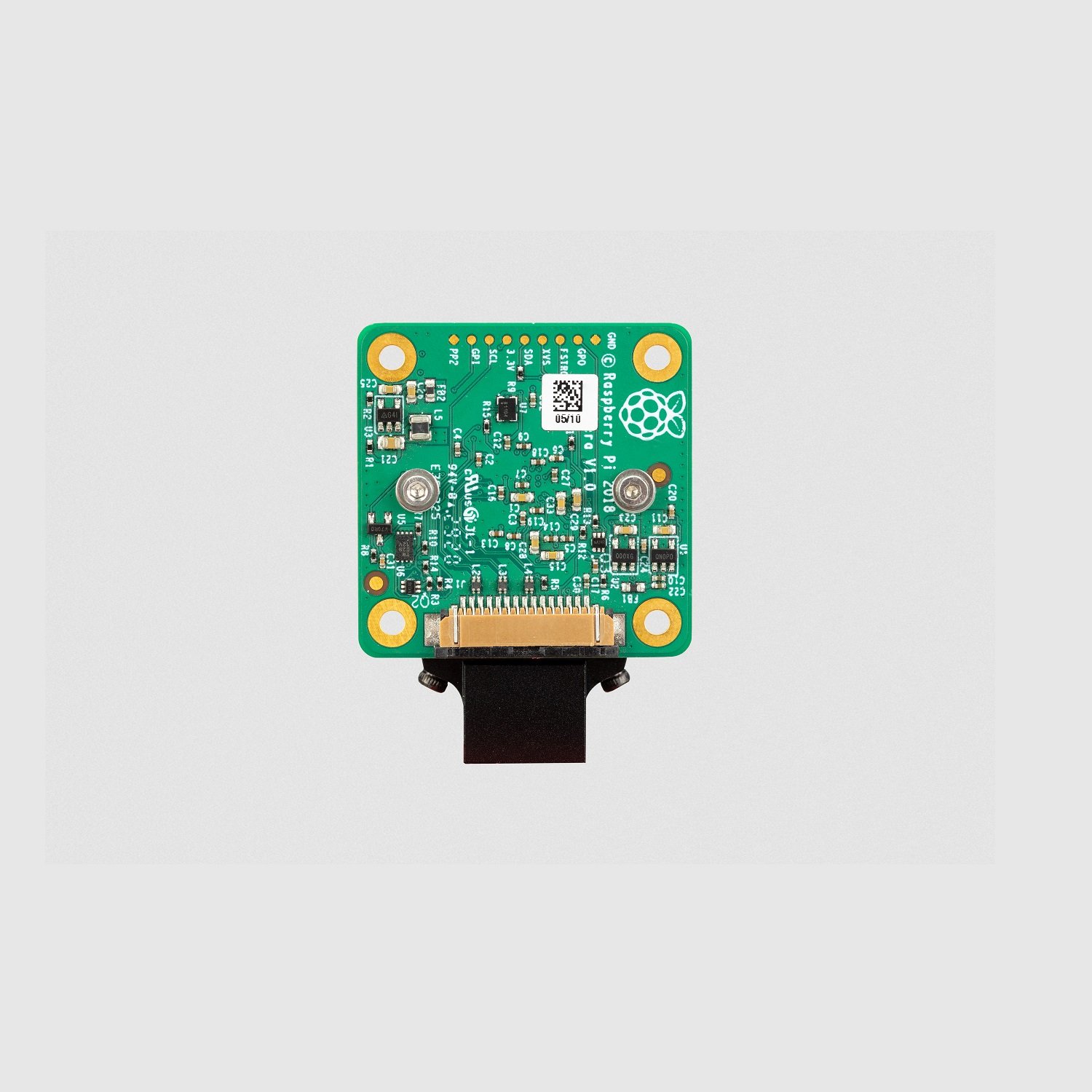

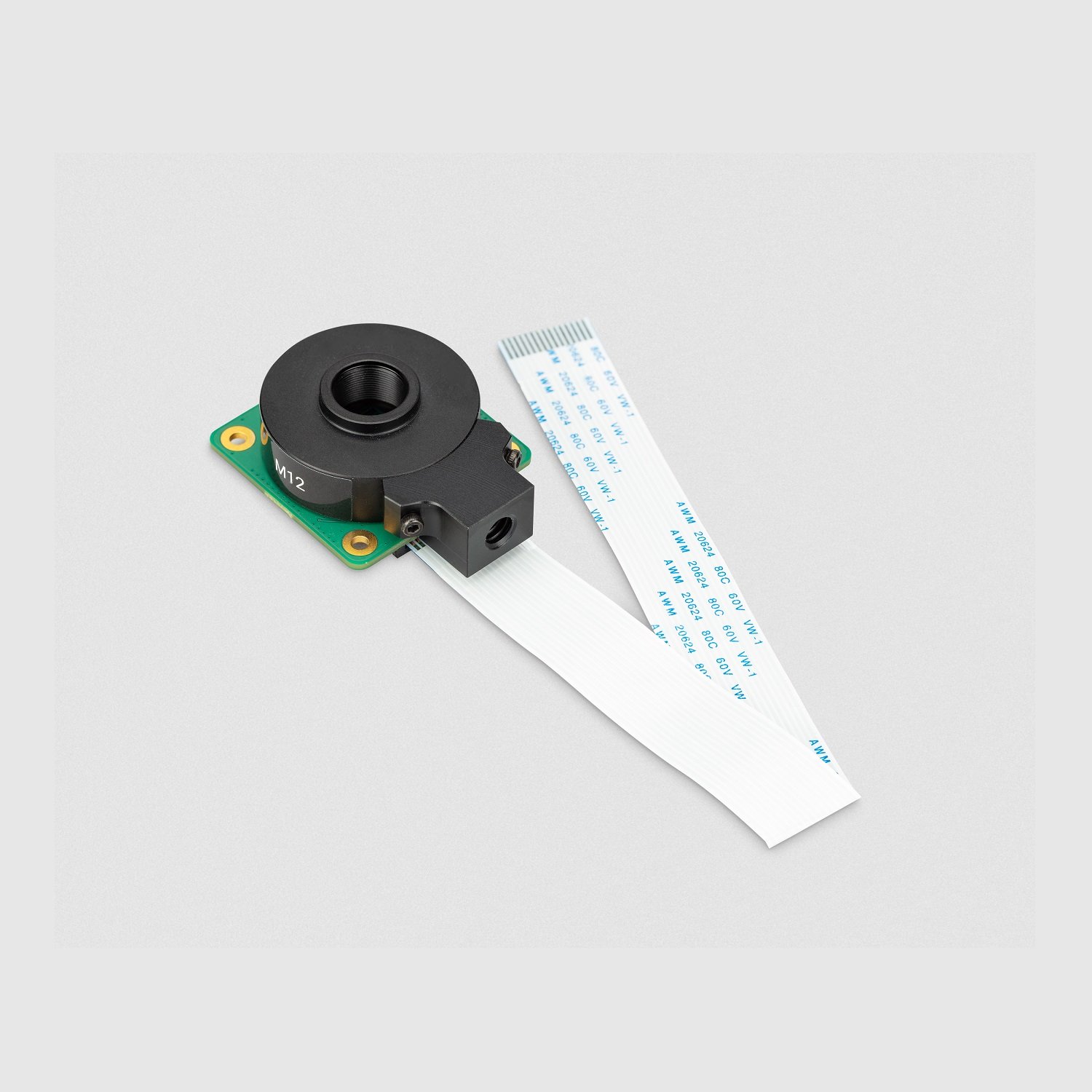

The package comprises a circuit board carrying a Sony IMX477 12.3 MP sensor, an FPC cable for connection to a Raspberry Pi computer, and a milled aluminum lens mount with an integrated tripod mount.


Features:

  1. Latest Sony IMX477R 12.3-megapixel Sensor.
  2. Stacked back-illuminated sensor.
  3. Designed to work with most interchangeable M12 lenses.
  4. Compatible with variable third-party lenses.
  5. Milled aluminum lens mount with an integrated tripod mount.

Package Includes:

1 x Raspberry Pi HQ Camera with M12 Mount


Links to all Variants:

SKU Product Name Click to Open
1441079 Raspberry pi Camera 3 View
1445416 Raspberry pi Camera 3 Noir View
1445417 Raspberry pi Camera 3 Wide Noir View
1445388 Raspberry pi Camera 3 Wide View
1445389 Raspberry pi HQ Camera – M12 Mount View









Additional information

Variant

M12 Mount

Sensor

Sony IMX477R 12.3 MP, stacked, back-illuminated sensor

Resolution

12.3 megapixels

Sensor size

7.9mm sensor diagonal

Pixel size

1.55μm × 1.55μm

Output

RAW12/10/8, COMP8

Back focus length of lens

2.6mm–11.8mm

Lens sensor format

1/2.3” (7.9mm) or larger

IR cut filter

Integrated 2

Ribbon Cable Length

200mm

Tripod mount

1/4”-20
