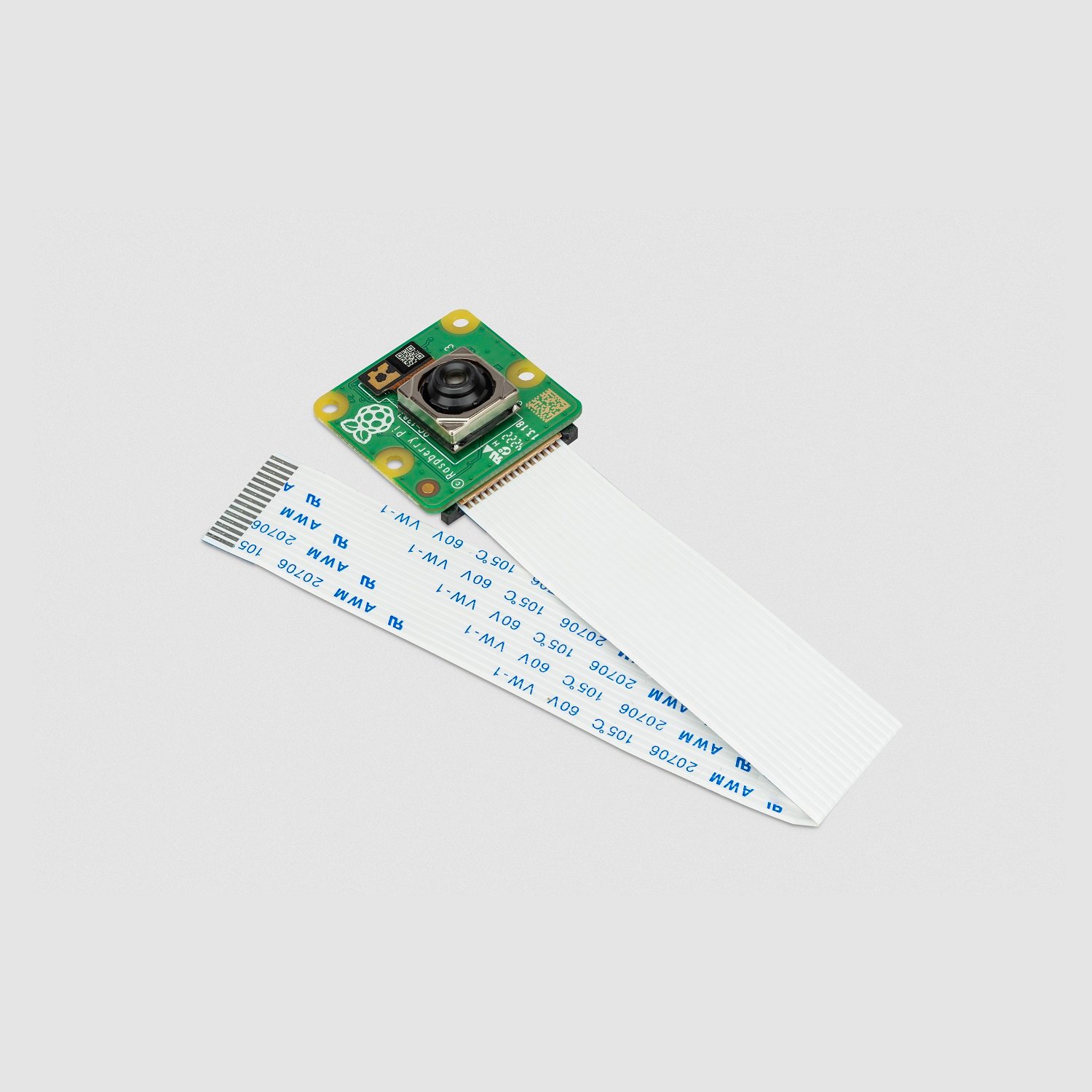

Raspberry Pi Camera Module 3

SKU: rz2436706
In Stock

2,799.00

  1. Variants: Standard
  2. Powered autofocus.
  3. Sensor: SONY IMX708
  4. Resolution: 12 Megapixel
  5. Viewing Angle: 76º
  6. Improved low-light sensitivity.
  7. Compatible with all models of Raspberry Pi*



In Stock
This item is low in stock.

Item(s) left: 3

Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+91-7231900002 Connect on Whatsapp

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

After a long wait of almost 7 years, the Raspberry Pi released the camera-3 series, the successor to the Camera module 2 series. This newest addition to the Raspberry Pi mainstream camera lineup replaces the wildly successful Camera Module 2, which was introduced in April 2016.

The all-new Raspberry Pi Camera Module 3 Standard/Wide is a camera for Raspberry Pi computers. Featuring autofocus and a 12-megapixel sensor supported by Raspberry Pi’s Picamera2 Python library, Camera Module 3 gives you excellent image quality with precise control.
Camera Module 3 came up with significant improvements over Camera Module 2, which is built around a 12-megapixel Sony IMX708 image sensor. Additionally, Camera Module 3 is offered with a normal (76°) or wide-angle (120°) lens, as well as in regular and infrared-sensitive (NoIR) versions.

  • The standard variant is designed to take pictures in normal light.
  • The NoIR variant doesn’t have an infrared filter, so you can use it together with an infrared light source to take pictures in the dark.

Below is the short spec comparison of all variants:

Raspberry Pi Camera Module 3


Features:

  • Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
  • High signal-to-noise ratio (SNR)
  • Built-in 2D Dynamic Defect Pixel Correction (DPC)
  • Phase Detection Autofocus (PDAF) for rapid autofocus
  • QBC Re-mosaic function
  • HDR mode (up to 3-megapixel output)
  • CSI-2 serial data output
  • 2-wire serial communication (supports I2C fast mode and fast-mode plus)
  •  2-wire serial control of focus mechanism
  • Improved low-light sensitivity.
  • High dynamic range (HDR) support.
  • Sony IMX708 12MP sensor with 12C-controlled focus actuator
  • Large 7.4mm diagonal sensor
  • Resolution: 12 Megapixel
  • Diagonal Viewing Angle: 76º
  • Compatible with all models of Raspberry Pi*



*Note: To connect with Raspberry Pi Zero models this camera requires a special camera cable. Buy Now


Package Includes:

1 x Raspberry Pi Camera Module 3


Links to all Variants:

SKU Product Name Click to Open
1441079 Raspberry pi Camera 3 View
1445416 Raspberry pi Camera 3 Noir View
1445417 Raspberry pi Camera 3 Wide Noir View
1445388 Raspberry pi Camera 3 Wide View
1445389 Raspberry pi HQ Camera – M12 Mount View



Additional information

Model

Camera Module 3 (Standard)

Sensor

SONY IMX708

Viewing Angle

76º

Compatible with

All models of Raspberry Pi*

Resolution

11.9 Megapixel

Sensor Size

7.4mm sensor diagonal

Pixel Size

1.4μm × 1.4μm

Horizontal/Vertical

4608 × 2592 pixels

Common Video Modes

1080p50, 720p100, 480p120

Output

RAW10

IR Cut Filter

Integrated in standard variants; not present in NoIR variants

Autofocus System

Phase Detection Autofocus

Dimensions

25 × 24 × 11.5mm (12.4mm height for Wide variants)

Ribbon Cable Length

200mm

Cable Connector

15 × 1mm FPC
