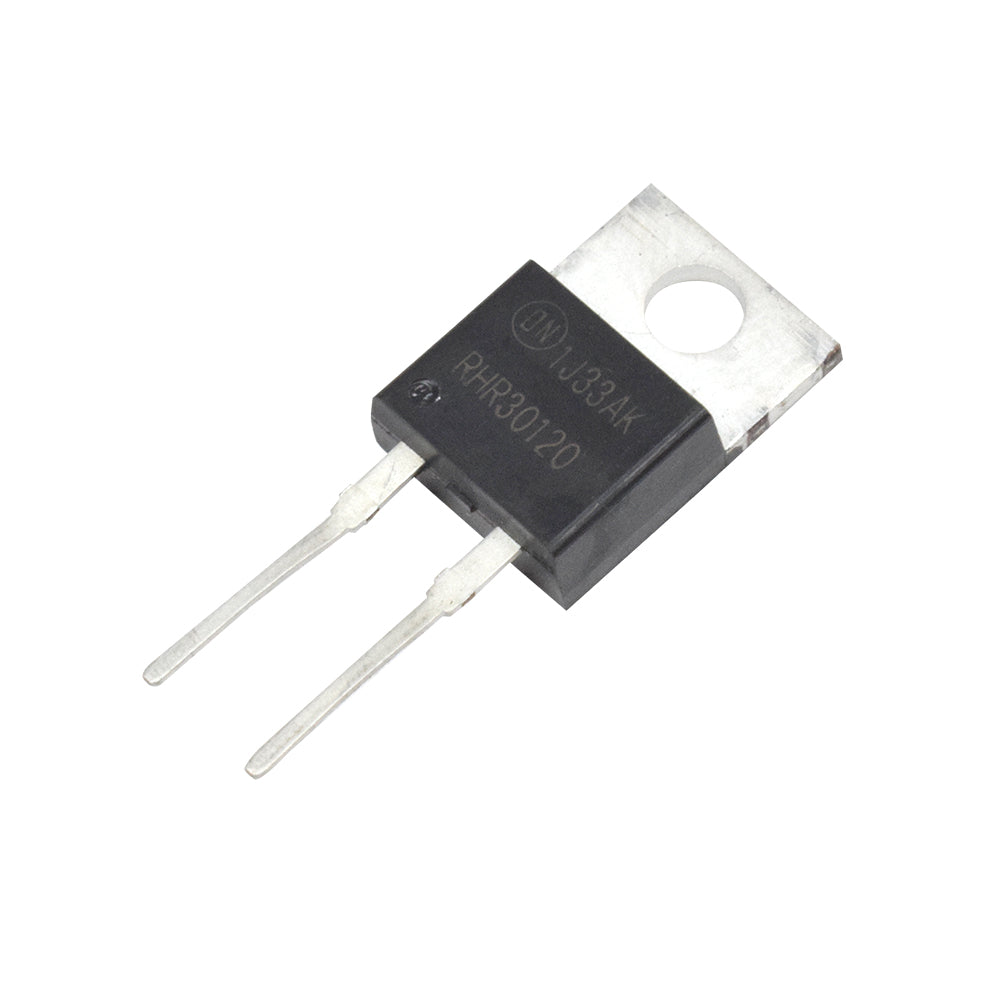

RHR30120 1200V, 30A Hyper Fast Soft Recovery Diode

Original price was: ₹95.00.Current price is: ₹80.07. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%76.06 (Including tax)
11 - 208%73.66 (Including tax)
21 - 4010%72.07 (Including tax)
41 - 10012%70.45 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

16 People watching this product now!
Description

A hyper-fast diode with gentle recovery properties is the RHRP30120. It is an epitaxial planar silicon nitride passivated device with a half recovery time of ultrafast diodes. These components are designed to be used in various switching power supplies and other power-switching applications, such as freewheeling/clamping diodes and diodes. Low stored charge and hyper-fast soft recovery limit ringing and electrical noise in many power switching circuits, lowering power loss in the switching transistors.

Its maximum operating voltage is 1200V, and the forward current is 30A. It has two terminal anode and a cathode. It has a cathode flange for heat dissipation. It is working here as a heat sink.

Features

  • 1200 V Reverse Voltage and High Reliability

  • It’s maximum forward current is 30A

  • Avalanche energy rated

  • Its mostly used in switching power supplies and other general switching operation

  • Its DC blocking voltage is 1200V

Specification
ModelRHR30120
TypeHyper fast diode
Working Peak Reverse Voltage1200V
PackageTO-220AC
Average Rectified Forward Current30A
Peak Repetitive Reverse Voltage1200V
Total power dissipation125W
Operating and Storage Temperature Range-65°C TO 175°C
Country of OriginChina
