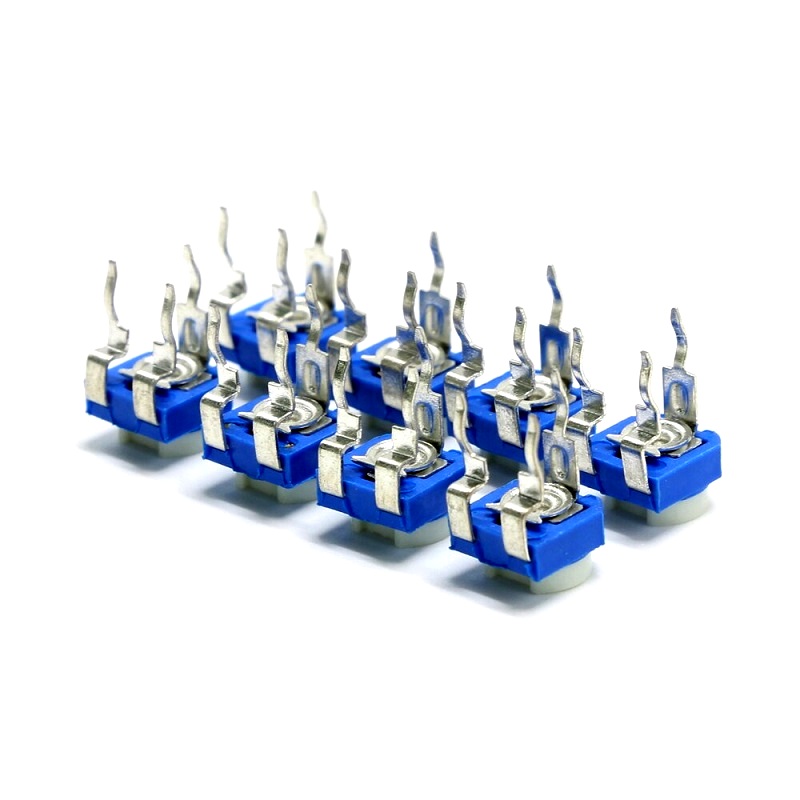

RM-065 Trimming Potentiometer Assorted Kit consists of 65pcs pots with 10 (5-qty. for each value) different and uniques ohm values. It is a three-terminal variable resistor that is used to vary or change the resistance. It is normally used to control any device’s resistance input value.

The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.

Package Includes:

1 x RM-065 Trimming Potentiometer Assorted Kit – 10 Type

Kit Includes:

1KΩ——(102)—–5Pcs

2KΩ—–(202)—–5Pcs

5KΩ—–(502)—–5Pcs

10KΩ—-(103)—–5Pcs

50KΩ—-(503)—–5Pcs

20kΩ—-(203)—–5Pcs

100KΩ—(104)—–5Pcs

200KΩ—(204)—-5Pcs

500KΩ—(504)—-5Pcs

1MΩ—–(105)—–5Pcs

T93YB203KT20
Trimpot, Multi Turn, Cermet, Top Adjust, 20 kohm, Through Hole, 23 Turns

Specifications:

1. Track Resistance: 20kohm
2. Trimpot Type: Multi Turn
3. No. of Turns: 23Turns
4. Element Material: Cermet
5. Adjustment Type: Top Adjust
6. Power Rating: 500mW
7. Potentiometer Mounting: Through Hole
8. Product Range: T93
9. Resistance Tolerance: ± 10%
10. Temperature Coefficient: ± 100ppm/°C
11. Trimpot Shape / Size: 3/8 Inch Square

Package Includes:

1 x T93YB203KT20-Trimpot Potentiometer

T93YA501KT20

Trimpot, Multi-Turn, Cermet, Top Adjust, 500 ohms, Through Hole, 23 Turns

Specifications:

1. Track Resistance: 500ohm
2. Trimpot Type: Multi-Turn
3. No. of Turns: 23Turns
4. Element Material: Cermet
5. Adjustment Type: Top Adjust
6. Power Rating: 500mW
7. Potentiometer Mounting: Through Hole
8. Product Range: T93
9. Resistance Tolerance: ± 10%
10. Temperature Coefficient: ± 100ppm/°C
11. Trimpot Shape / Size: 3/8 Inch Square

Package Includes:

1 x T93YA501KT20-Trimpot Potentiometer

T93YA102KT20

Trimpot, Multi Turn, Cermet, Top Adjust, 1 kohm, Through Hole, 23 Turns

Specifications:

1. Track Resistance: 1kohm
2. Trimpot Type: Multi Turn
3. No. of Turns: 23Turns
4. Element Material: Cermet
5. Adjustment Type: Top Adjust
6. Power Rating: 500mW
7. Potentiometer Mounting: Through Hole
8. Product Range: T93
9. Resistance Tolerance: ± 10%
10. Temperature Coefficient: ± 100ppm/°C
11. Trimpot Shape / Size: 3/8 Inch Square

Package Includes:

1 x T93YA102KT20-Trimpot Potentiometer

TC33X-2-501E
TRIMMER POTENTIOMETER 500 OHM 1TURN SMD

Specifications:

1. Track Resistance: 500ohm
2. Trimpot Type: Single Turn
3. No. of Turns: 1Turns
4. Element Material: Cermet
5. Adjustment Type: Top Adjust
6. Product Range: TC33 Series
7. Power Rating: 100mW
8. Potentiometer Mounting: Surface Mount
9. Resistance Tolerance: ± 25%
10. Temperature Coefficient: ± 250ppm/°C
11. Trimpot Shape / Size: 3 mm Rectangular
12. Automotive Qualification Standard: AEC-Q200

Package Includes:

1 x TC33X-2-501E-Trimpot Potentiometer

PTV09A-4030U-B203

POT, ROTARY, 20KOHM, 9MM, 20%

Specifications:

1. Track Resistance: 1kohm
2. No. of Turns: 1Turns
3. Track Taper: Linear
4. Power Rating: 50mW
5. Resistance Tolerance: ± 20%
6. Product Range: PTV09A Series
7. Potentiometer Mounting: Through Hole
8. Shaft Diameter: 6mm
9. No. of Gangs: 1
10. Adjustment Type: Knurled
11. Shaft Length: 25mm

Package Includes:

1 x PTV09A-4030U-B203-Rotary Potentiometer
