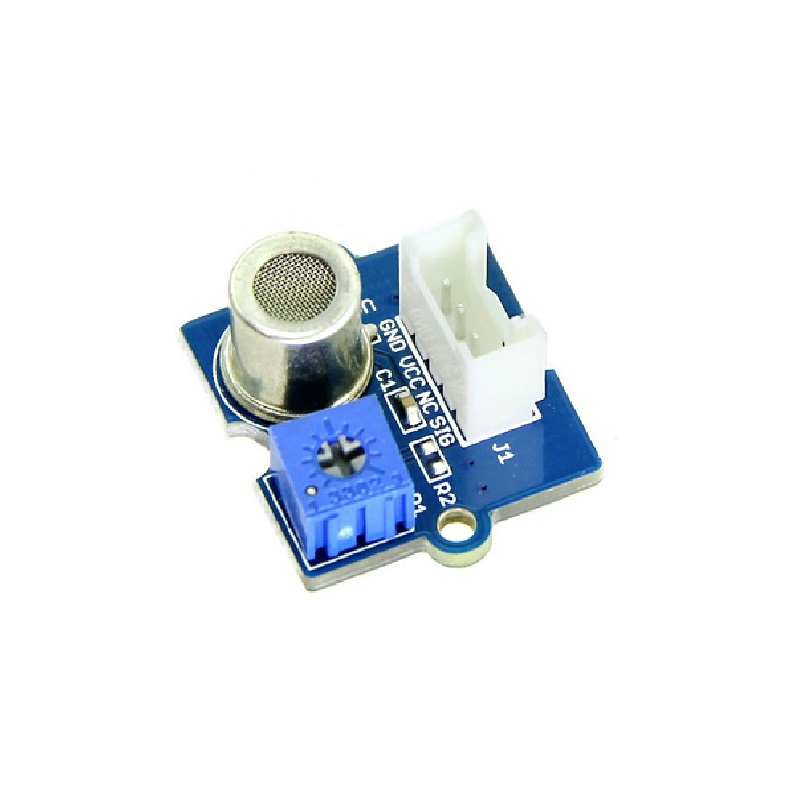

SeeedStudio Grove HCHO Sensor

12 People watching this product now!

SKU: rz24318390 Category: Gas and Dust Sensor

Description

The Grove – HCHO Sensor is a semiconductor VOC gas sensor. Its design is based on WSP2110 whose conductivity changes with the concentration of VOC gas in the air. Through the circuit, the conductivity can be converted to an output signal that corresponds to the gas concentration. This sensor can detect the gas whose concentration is up to 1ppm. It’s suitable for detecting formaldehyde, benzene, toluene and other volatile components. This product can be used to detect harmful gas in the home environment. Therefore, it’s a good assistant for you to improve the indoor environment quality of life.

Getting Started with SeeedStudio Grove HCHO Sensor

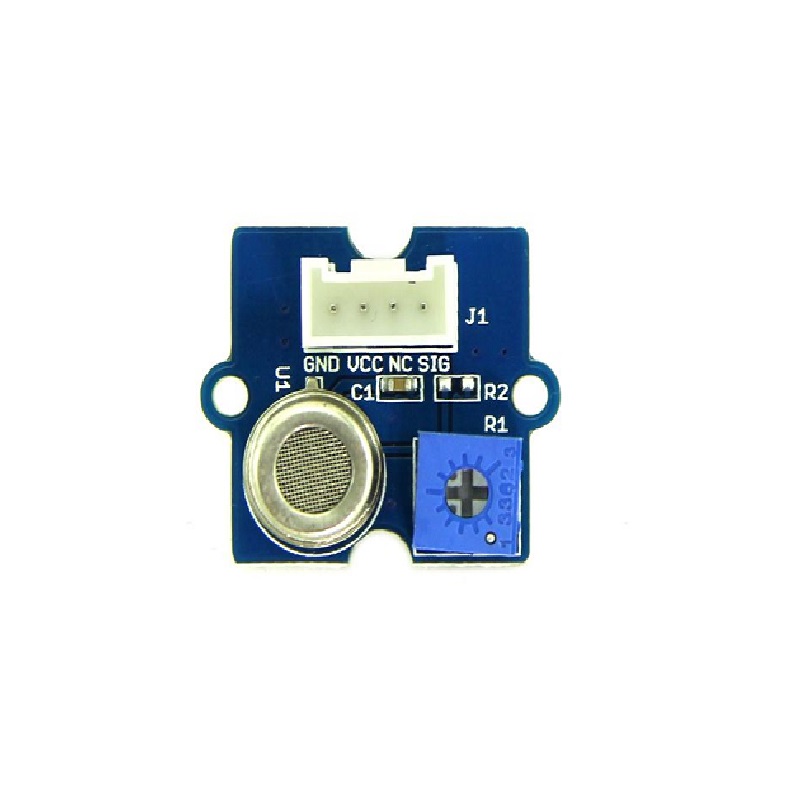

Pin Description :

GND The weight of the system.
VCC The supply voltage is 5 V.
NC Not connected.
SIG Sensor output signal.

Package Includes :

1 x SeeedStudio Grove HCHO Sensor

Additional information

Model	Grove HCHO Sensor WSP
Operating Voltage(V)	5.0V ± 0.3V
Target Gases	HCHO Benzene Toluene Alcohol
Detecting Range	1~50 ppm
Sensitivity	Rs(in air)/Rs(10ppm HCHO)≥5
Sensor Resistance	10KΩ-100KΩ(in 10ppm HCHO)
