Description

Charge even faster and more conveniently than with comparable chargers. Thanks to the AC/DC input, the SkyRC B6 Nex manages to supply a wide variety of batteries with new energy with a charging current of 10A and achieves an output of up to 200W. Convincing performance in pocket size.

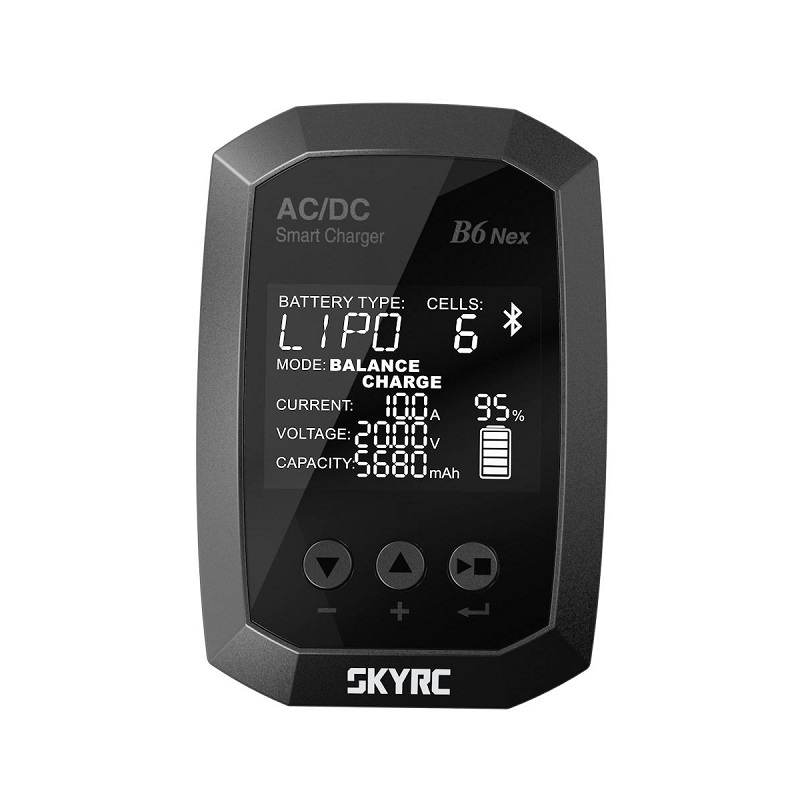

In contrast to other devices, the B6 Nex from SkyRC uses a high-quality 2.4” VA display for the perfect display of all information at a pleasant viewing angle. By using new approaches in production, the charger also generates less heat and the individual components can be installed in a more compact manner.

The use of lithium, nickel or Pb batteries is not a problem for the B6 Nex. The cut-off voltage can even be set manually and professionals benefit particularly from the intermediate storage. Because the device remembers the last set value. The “Scan to Go” feature can also be used in conjunction with the associated “SkyCharger” app. Batteries are provided with QR codes on which the core data is stored. One scan is enough and the B6 Nex automatically begins the (dis-) charging process.

Features:

1. With the dual power AC/DC input, B6 Nex can charge the 1-6 cell Li-ion or LiPo batteries at a maximum charge current of 10A.
2. The built-in Bluetooth 5.0 enables B6 Nex’s connectivity with smartphones.
3. The app can push notifications reminding users that the charge or discharge is completed or there is a firmware upgrade.
4. With B6 Nex, charging becomes a faster and more convenient experience!

Specification:

SKYRC B6 Nex 1-6S LiPo Charger with Bluetooth With dual AC/DC power input, this charger is suitable for charging and discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries.
Protection is built-in such as high/low input voltage, and input/output reverse, reverse polarity protection.

Display
Type: VA LCD

Buttons and Port:
External Port: 2-6S Balance Socket-XH, Battery Socket, DC Input, AC Input
Buttons: Increase Button, Decrease Button, Start/Stop Button

Power:
DC Input:10-30V
Charge: 200W
Discharge: 10W

AC Input:100-240V(50-60HZ)
Charge:50W
Discharge:10W

Battery
BatteryTypes/Cells:
LiPo/LiIon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 1-10S(2-20V)

Battery Capacity Range:
NiMH/NiCd: 100-50000mAh
LiPo/LiIon/LiFe/LiHV: 100-50000mAh
Pb:100-50000mAh

Charge and Discharge

Charge Voltage
NiMH/NiCd: Delta peak detection

Package Includes:

1 x SKYRC B6 Nex 1-6S LiPo Charger with Bluetooth
