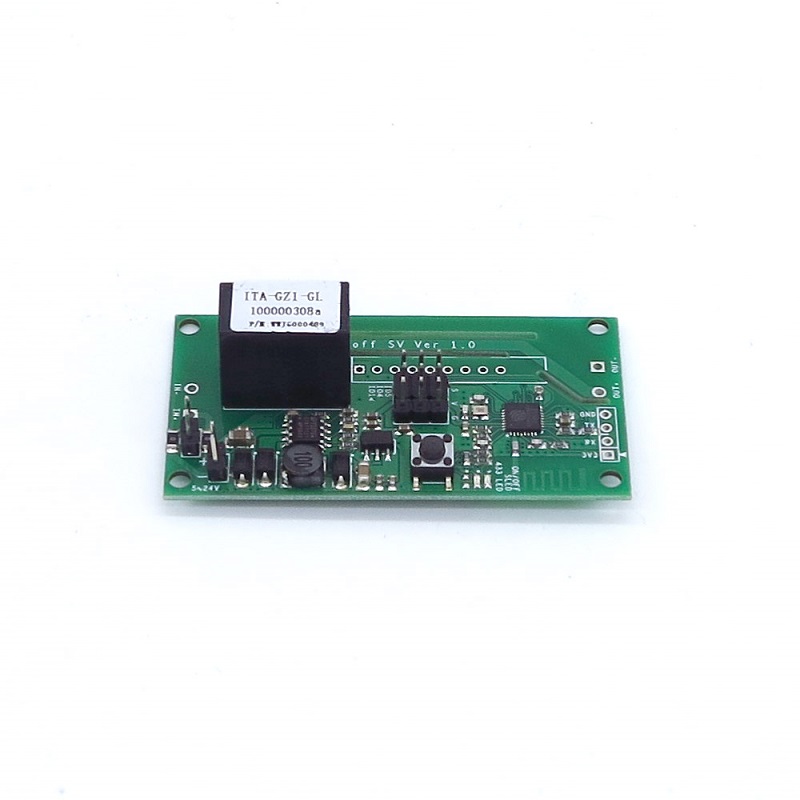

This is a Sonoff 5-24V SV Wireless Switching Module. The low voltage light switch supports a 5-24V power supply. Power supply separation enables it to control both AC and DC power, although some welding is required for this purpose. It has GIPO reserved to support secondary development.

SONOFF SV low voltage WiFi switch is an affordable device that provides customers with smart home control. The low voltage WiFi switch is a WiFi-based wireless switch that can connect to a wide range of appliances. Sonoff SV low voltage remote switch transmits data to a cloud platform through the WiFi Router, which enables customers to remotely control all the connected appliances, via the mobile application eWeLink. The cloud server of Sonoff SV is Amazon AWS global server.

Features:

1. Remote control the connected device on the app from anywhere
2. Tracking real-time device status on the app
3. Supports max 8 enabled scheduled/countdown timers
4. Reserves GIPO to support secondary development
5. Works with Amazon Echo, Echo Dot, Amazon Tap
6. Works with Google Home, Google Home Mini, Google Nest
7. Works with IFTTT

Package Includes:

1 x Sonoff SV Wireless Switching Module 5-24V

Sonoff TH10 Mobile Temperature Switch Timing Thermostat Temperature and Humidity Controller is a Sonoff version smart switch that can monitor and set temperature and humidity through the APP eWeLink. Sonoff TH10 Mobile Temperature Switch Timing Thermostat Temperature and Humidity Controller which can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink.

 Sonoff TH10 Mobile Temperature Switch Timing Thermostat Temperature and Humidity Controller support presetting the range for temperature or humidity. When the temperature or humidity of your home environment falls within the range, it will automatically turn on or off the connected devices.

Features:

1. Supports tracking device status and remote turn on/off action of connected appliances
2. Supports presetting temperature and humidity to turn on/off
3. Supports 8 enabled countdown/single/repeat  timing tasks
4. Support checking real-time temperature and humidity
5. Support setting smart scene to trigger on/off other smart devices
6. Works with Amazon Echo, Echo Dot, Amazon Tap
7. Works with Google Home, Google Home Mini, Google Nest

Package Includes:

1 x Sonoff TH10 Mobile Temperature Switch Timing Thermostat Temperature and Humidity Controller.

This is a Sonoff RFR3 Intelligent Switch with the DIY capability that makes it possible to control connected devices via the eWeLink directly from your phone or ask it to turn on/off devices with Alexa and for Google Assistant. The LAN control is designed for situations in which no available WiFi connection, or an unsteady WiFi network environment. Amazingly, the module with unique DIY function, assembly part of it with ordinary appliances to develop the module more compact and intelligent.

Features:

1. Manage devices from your phone, anywhere, and anytime.
2. Support for Alexa & Google Assistant to turn on/off devices.
3. Make one device trigger on/off another one or groups of devices.
4. Control devices with a remote controller with 433MHz

Package Includes:

1 x Sonoff RFR3 Intelligent Switch Supports Alexa Voice Control

Do you need one device to centrally control multiple electrical devices in your home, lights, heaters, coolers, curtains, doors and windows? NSPanel can control all of these devices, offering a built-in HMI panel for home automation that’s super convenient, all you need to do is tap.

The NSPanel Smart Scene wall switch is equipped with a powerful built-in thermostat and environmental sensors. You can set different indoor temperatures for different time periods, and NSPanel will automatically trigger heating or cooling equipment based on your setting conditions to keep the room at a comfortable temperature. In addition, NSPanel has a scenario-based control function, you can set different modes for wake up, work, entertainment and sleep, and can change the mode at any time.

Such a powerful panel, how to control it? There are three ways to control SONOFF NSPanel Smart Scene wall switch: use the dual channel switches or touch screen nearby, use the APP to control when you are at a long distance, voice control makes your hand free.

Sonoff NSPanel is compatible with various devices from Sonoff, such as LED bulbs, LED Filament bulbs, LED light strips, S26 / S31, TX, MINIR2, POWR3 plugs!

Features:

1. All in One Control Center: NSPanel can help you operate specific scene modes in different scenes with just one click. In addition to scenario-based control, it is compatible with almost all sonoff devices and the central control function of the control group.
2. Integrated HMI Panel: SONOFF NSPanel centrally integrates HMI control, intelligent temperature control and smart wall switch, turning your home into a convenient and smart place.
3. Home Automation Thermostat: With a powerful built-in thermostat, you can set different indoor temperatures for different time periods, and NSPanel will automatically trigger heating or cooling equipment based on your setting conditions to keep the room at a comfortable temperature.
4. Multiple ways to control: You can use dual channel switches, touch screen and eWeLink app to control SONOFF NSPanel; Besides, SONOFF NSPanel supports Alexa, Alice, Google Assistant and even Siri shortcuts, you can control your home devices with a simple voice command.
5. Know the time and weather: With built-in sensors and WiFi connection, the NSPanel smart wall switch can real-time update the weather, indoor temperature, outdoor temperature, time and date.

Specifications:

1. Input: 100-240V ~ 50 / 60Hz 4A max
2. Output: 100-240V ~ 50 / 60Hz 2A / Group 4A / Total
3. LED load: 150W / 110V / Group, 300W / 110V / Total, 300W / 220V / Group, 600W / 220V / Total
4. Wifi: IEEE 802.11 b / g / n 2.4 GHz
5. Bluetooth standard: 4.2 BLE
6. TFT screen size: 3.5 “(capacitive touch screen)
7. Screen resolution: 480 x 320px
8. APP operating systems: Android and iOS
9. Shell Materials: PC V0 + CRS + Tempered Glass
10. Dimension: 86x86x41.7 mm
11. Certifications: NSPanel-EU: CE / CQC / SRRC / RoHS

Packages Includes:

1 x SONOFF NSPanel EU Smart Scene Wall Switch Intelligent Color LCD Touch Smart work with Alexa, Google Home

SONOFF Stackable Power Meter realizes smart management with overload protection, metadata monitoring, and electricity statistics. The SPM-Main communicates with the cloud through Ethernet or WiFi and communicates with the SPM-4Relays through RS-485, which allows for multi-terminal and stable long-distance data transmission.

Want to know the power consumption changes of each stall? Want to realize the unified management of the whole shopping mall? By checking eWeLink App on your mobile phone, you can monitor electricity usage without leaving home. Through the eWeLink App, you can obtain power consumption through a touch.

Once the overload protection is enabled, you do not need to worry about electrical appliances being burned out, which helps remove potential safety hazards. In addition, you can also set the overload delay activated to avoid spurious triggering. One SPM-Main can be connected to 32SPM-4Relays. Each SPM-4Relay has 4 isolated channels to help the tenant to solve the problem in electric charge sharing. Each channel can support a maximum current of 20A, with no fear of high power load.

Get Over 180 days of Energy Usage Data Available SD card local storage. You can insert the SD card into SPM-Main to download and check over 180 days of your energy usage history at any time of the day through HTTP API. No need to worry about missing important information.

Features:

1. Connect up to 32 SPM-4Relays – One SPM-Main can be connected to 32 SPM-4Relays. Each SPM-4Relay has 4 isolated channels to help you manage devices more conveniently.
2. Power metering – You can monitor the power consumption by checking eWeLink App on your mobile phone. Obtaining current, voltage, and power easily.
3. Max. 20A/Gang – Each channel can support a maximum current of 20A, with no fear of a high power load.
4. Communication through RS-485 – The SPM-Main communicates with the SPM-4Relays through RS-485, which allows for multi-terminal and stable long-distance data transmission.
5. Overload Protection – Once the overload protection is enabled, it can protect your devices from burning out.

For more technical details, go through the datasheet in the attachments

Package Includes:

1 x Sonoff Smart stackable power meter- SPM Main Unit Only

1 x User Manual

Wireless switch for temperature and humidity monitoring which can remotely monitor and set the temperature and humidity range for switch on or off the connected appliances via the iOS or Android eWeLink APP.

Just as its name indicates, the temperature and humidity monitoring device Sonoff TH 320D supports two 20A  maximum current power supply specifications.

Create Smart Scenes

• The WiFi switch supports presetting the temperature or humidity range.
• When the temperature or humidity of the home environment is within the range,
• will automatically turn the connected devices on or off.

LCD screen

• Real-time monitoring of temperature and humidity data, the screen refreshes every 5 seconds.
• Sonoff TH Elite supports either 16 Ampere or 20 Ampere loads and presents, on the front, an unprecedented display that allows
• consult live the reading of the temperature detected (as well as of the relative humidity, if the sensor foresees it).

Reliable control of temperature and humidity

• TH supports LAN control, disconnected Wi-Fi will not affect the operation of your device.
• The sensor connector is upgraded to RJ11 , supporting hot plug making the connection more stable and reliable .
• You can set 8 automatic control programs to save electricity bills and create a comfortable environment.

Historical data of temperature and humidity up to 6 months

• Support to review historical temperature and humidity data by hour, day and month.
• History data from the last 6 months can be exported in .xlsx format and with an accuracy of one hour.

Timely notifications

• TH continues to monitor temperature and humidity in real-time once the preset threshold or is reached the power on/off status of the device, you will receive a Push notification on your phone.

Automation of scenes

• Use other smart devices to achieve the automation you want.
• In the smart scene, temperature, humidity, power on, power off support setting as a trigger,
• switching on, switching off, inversion during the execution of actions. Support adding SONOFF devices
• a Home Assistant for control and automation via the eWeLink add-on.

It supports IFTTT

• Support to be added to IFTTT to achieve automation with devices from other brands.
• Add it to the home assistant
• Add SONOFF devices to Home Assistant for control and automation via the eWeLink add-on.
• Voice control
• Working with Amazon Alexa, and Google Assistant, you can query the temperature and humidity values with your voice.

Features:

1. Support to connect 20A Max high load, dry contact output.
2. Real-time monitoring of temperature and humidity data, the screen is refreshed every 5S.
3. Support to review “Temperature/Humidity” history data by hour, day, and month. Historical data for the last 6 month’s scan be exported in .xlsx format and accurate to the hour.
4. Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create a comfortable environment.
5. SONOFF TH Elite WiFi Switch is compatible with Alexa, and Google Assistant, you can query the temperature and humidity values ​​by your voice. Note: THS01 and DS18B20 (RJ9 4P4C) are the sensors of the RJ9 4P4C socket, just plug them into TH Elite to use them. MS01 comes with a free RJ9 4P4C adapter to fit TH Elite.

Specifications:

1. Model: Sonoff THR320D
2. Input Output: THR320D 100-240V ~ 50 / 60Hz 20A max
3. MCU: ESP32
4. Wifi IEEE: 802.11 b / g / n 2.4 GHz
5. Clean Contact: 5-30V, 1A max
6. Working humidity: 5% -95% RH, non-condensing
7. Working temperature -10 ° C ~ 40 ° C (14 ℉ ~ 104 ℉)
8. Supported sensors: THS01, DS18B20, MS01
9. Work with: Amazon Alexa, Google Assistant
10. Material: PC V0
11. Dimensions: 98x54x31 mm

Package Included:

1 x Sonoff THR320D Elite Smart Temperature and Humidity Monitoring Switch
