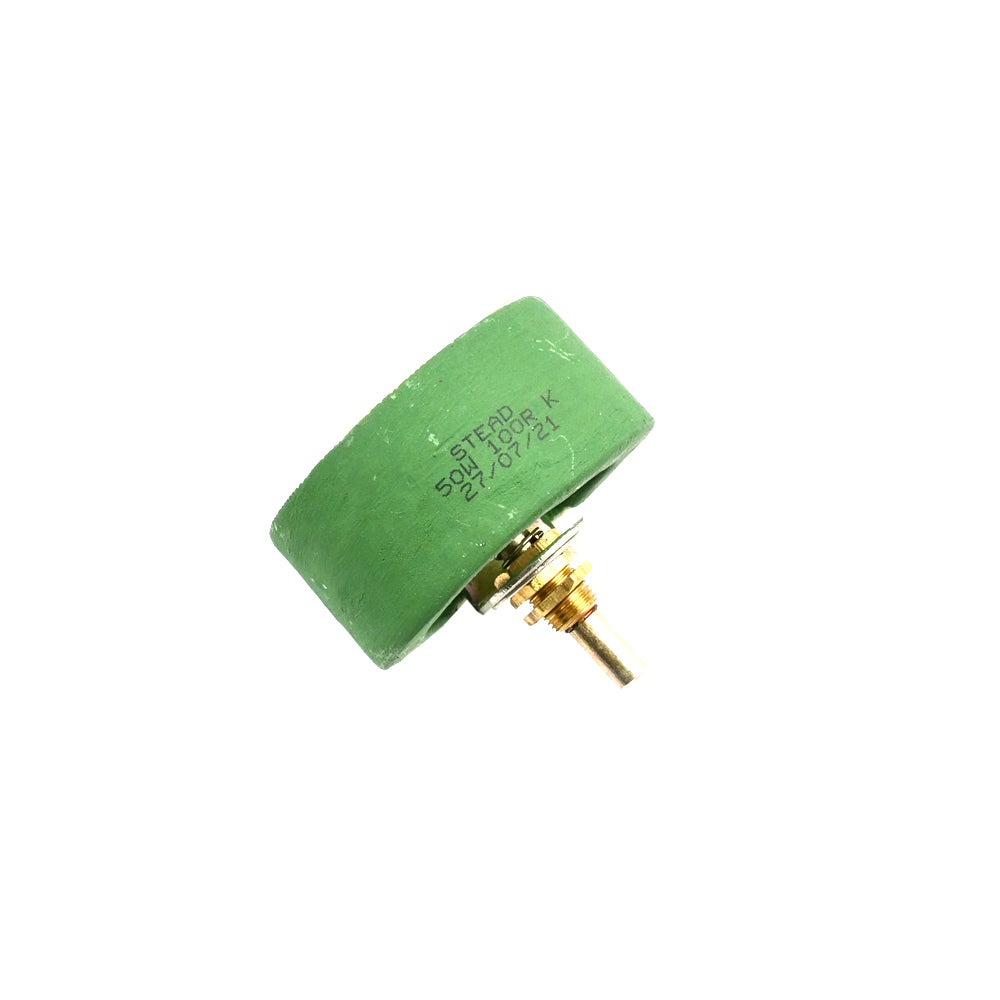

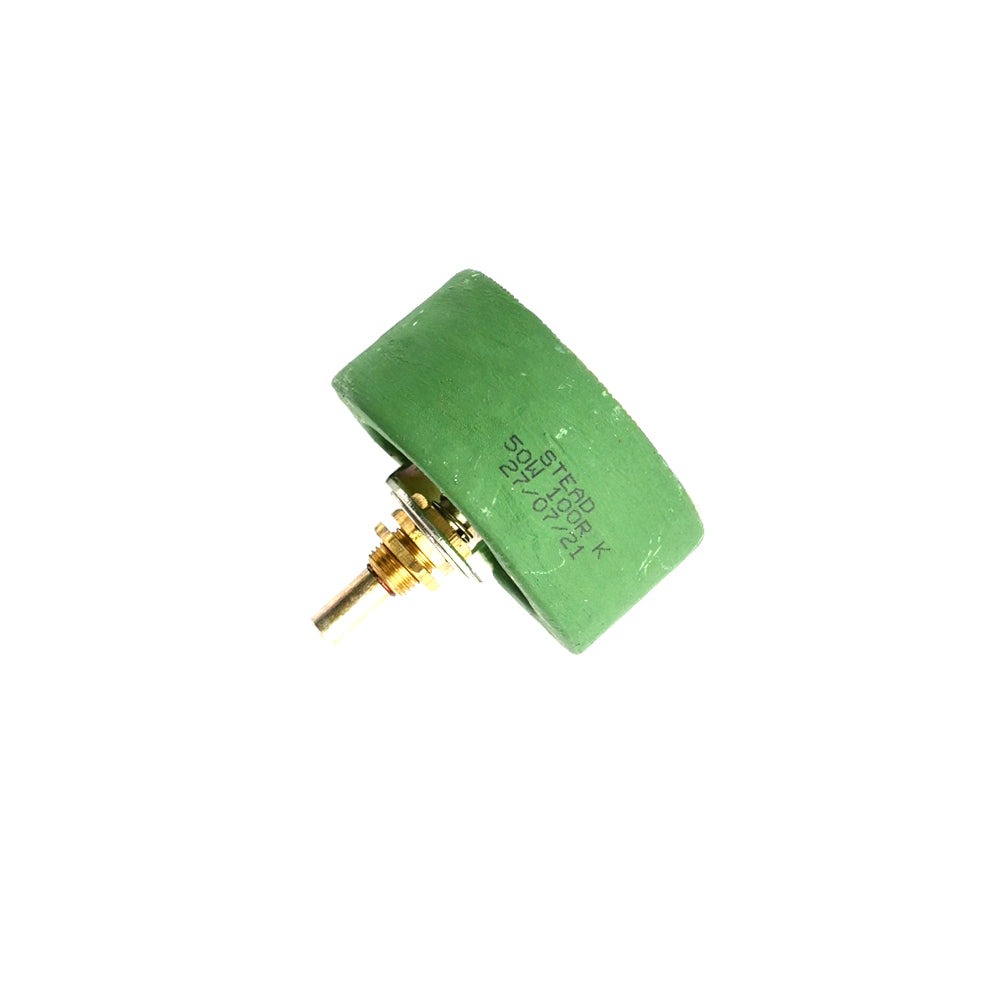

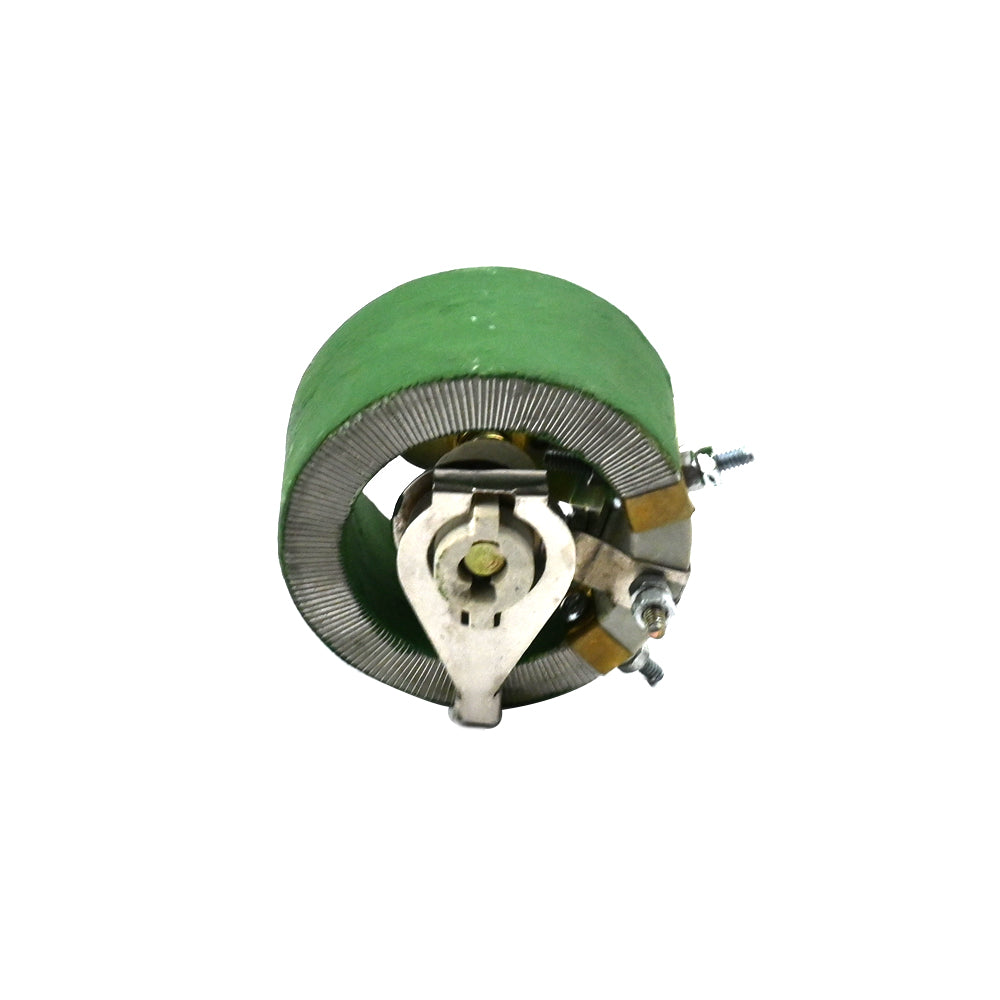

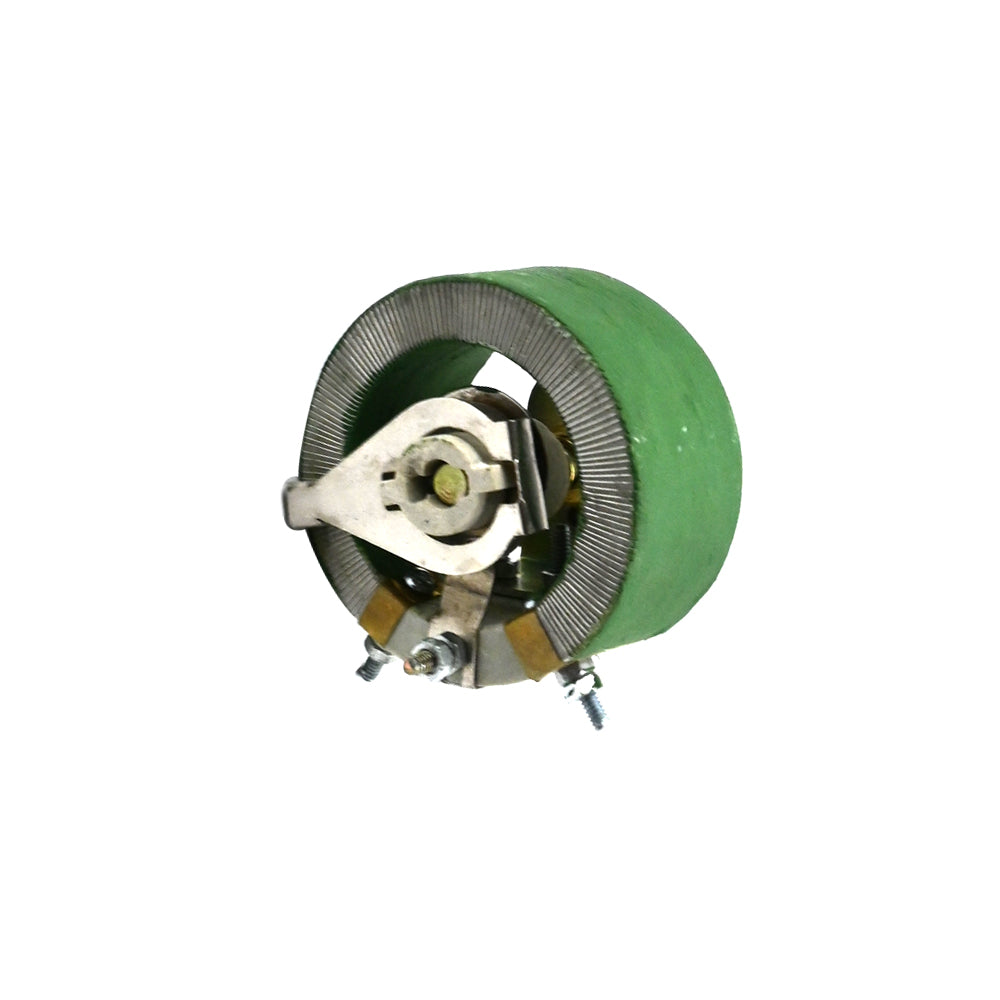

Stead 100 Ohm 50W Wire Wound Potentiometer Resistor

Click to enlarge

Stead 100 Ohm 50W Wire Wound Potentiometer Resistor

Original price was: ₹750.43.Current price is: ₹605.22. (Including tax)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹574.96 (Including tax)
11 - 20	8%	₹556.81 (Including tax)
21 - 40	10%	₹544.69 (Including tax)
41 - 100	12%	₹532.59 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

15 People watching this product now!

SKU: rz24335814 Category: All Categories Tags: 100 Ohm 50W Wire Wound Potentiometer Resistor, 100 Ohm Wire Wound Variable Rotary Rheostat, 50W Wire Wound Variable Rotary Rheostat, Stead 100 Ohm 50W Wire Wound Potentiometer, Stead 100 Ohm 50W Wire Wound Potentiometer Resistor, Stead 50W 100 Ohm Wire Wound Variable Rotary Rheostat, Wire Wound Variable Rotary Rheostat

Description

It is a 50W 100 Ohm wire wound variable rotary Potentiometer resistor. Its resistive part is rotary. The wiper in this type is mounted on a shaft and the movement of this shaft will change the length and resistance. Basically it is a variable or adjustable rotary Potentiometer work as when rotate the wiper then resistance will be vary. A Potentiometer is a variable or adjustable resistor that can control the electrical resistance of a circuit without interrupting the current flow. It is a hollow circular having three screw connections a terminal. The ceramic and the wire wound assembly over it are covered by silicone. A resistive wire is wrapped to form a toroid coil with a wiper that slides along the coil’s surface. There are three screw terminal when rotate the wiper in clock-wise resistance is increase and rotate in anti-clock wise resistance is decrease . It is constructed with a ceramic core. High voltage and current are frequently required in applications.

Features:

Its resistive part is rotary.
It is high power Potentiometer.
It is a hollow circular having three screw connections terminal.
The ceramic and the wire wound assembly over it are covered by silicone.
A variable or adjustable wiper is mount.
It work as non- linearly.
High voltage and current are frequently required in applications.
Widely used in those areas where circuits are often required to work at high temperatures.

Specification

Model	50W 100R
Material Type	Silicone coated
Type	Variable Rotary Potentiometer
Tolerance	10%
Power	50W
Resistance	100 Ohm
Dimensions	67.9*67.9mm
No. of Screw terminal	3
Wiper diameter	6.2mm
Screw diameter	6.3mm
Country of Origin	China
