₹5,223.09 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹4,961.93 (Including tax) |
| 11 - 20 | 8% | ₹4,805.24 (Including tax) |
| 21 - 40 | 10% | ₹4,700.78 (Including tax) |
| 41 - 100 | 12% | ₹4,596.33 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

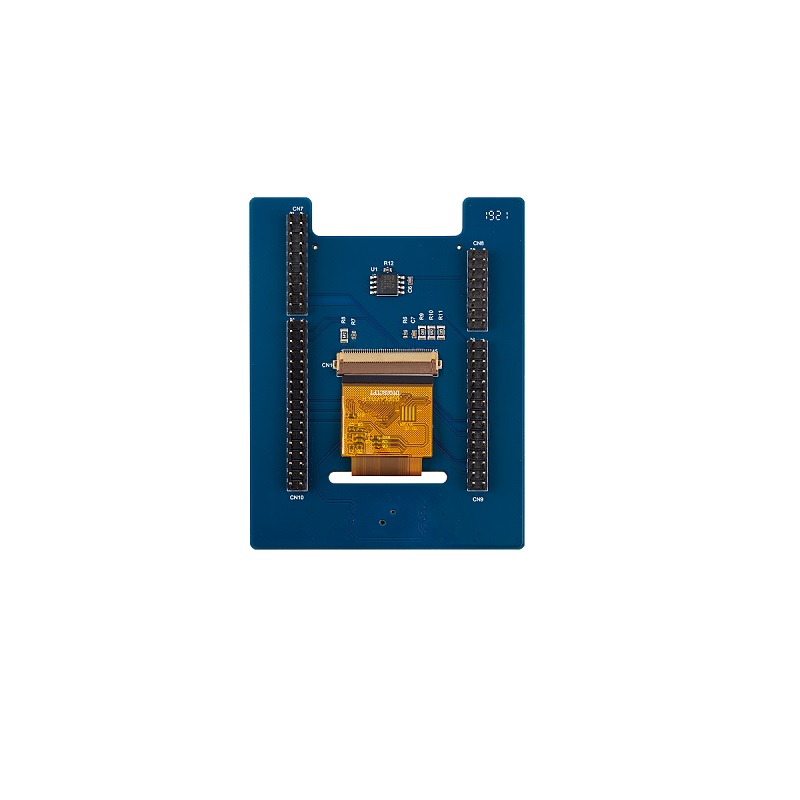

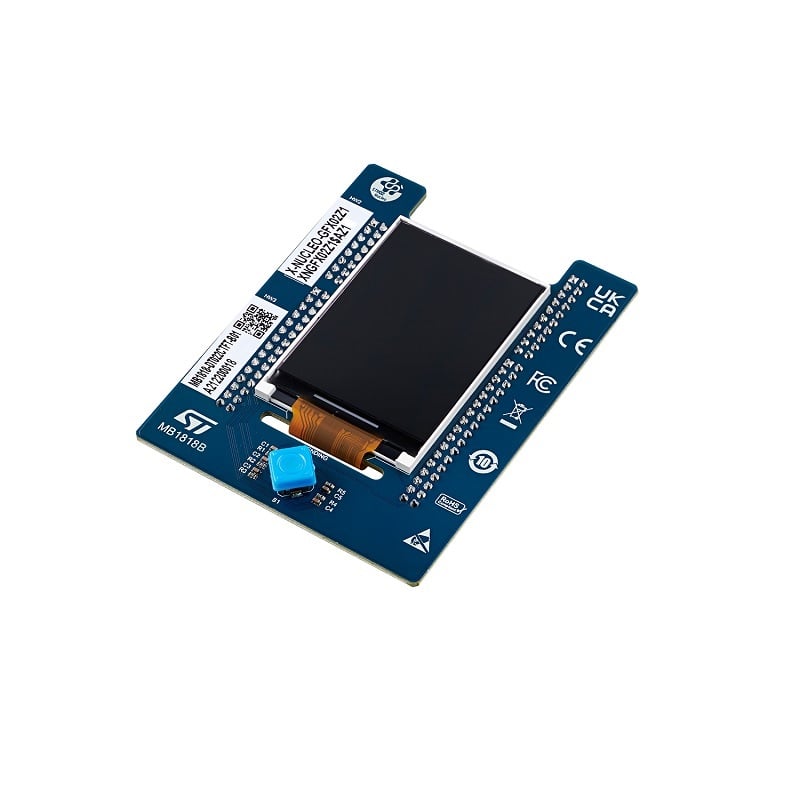

Display expansion board for STM32 Nucleo with Zio connector. Expansion board adds graphic user interface (GUI) capability to STM32 Nucleo-144 boards. It features a 2.2″ 8bit parallel interface TFT display as well as a 64Mbit Q-SPI NOR flash memory for storing graphic images, texts and texture. The expansion board also offers a joystick for GUI navigation. It is compatible with the NUCLEO-F412ZG, NUCLEO-F413ZH, NUCLEO-F446ZE, NUCLEO-F722ZE, NUCLEO-F746ZG, NUCLEO-F756ZG, NUCLEO-F767ZI, NUCLEO-H743ZI, NUCLEO-H723ZG, NUCLEO-H753ZI, NUCLEO-H745ZI-Q, NUCLEO-H755ZI-Q, NUCLEO-H7A3ZI-Q, NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4A6ZG, NUCLEO-L4P5ZG, NUCLEO-L4R5ZI, NUCLEO-L4R5ZI-P, NUCLEO-L552ZE-Q and NUCLEO-U575ZI-Q Nucleo-144 boards.
Attention: For additional technical specifications, please refer to the accompanying datasheet in the attachment section.
1 x STMICROELECTRONICS Expansion Board, Display, STM32 Nucleo-144 Boards
