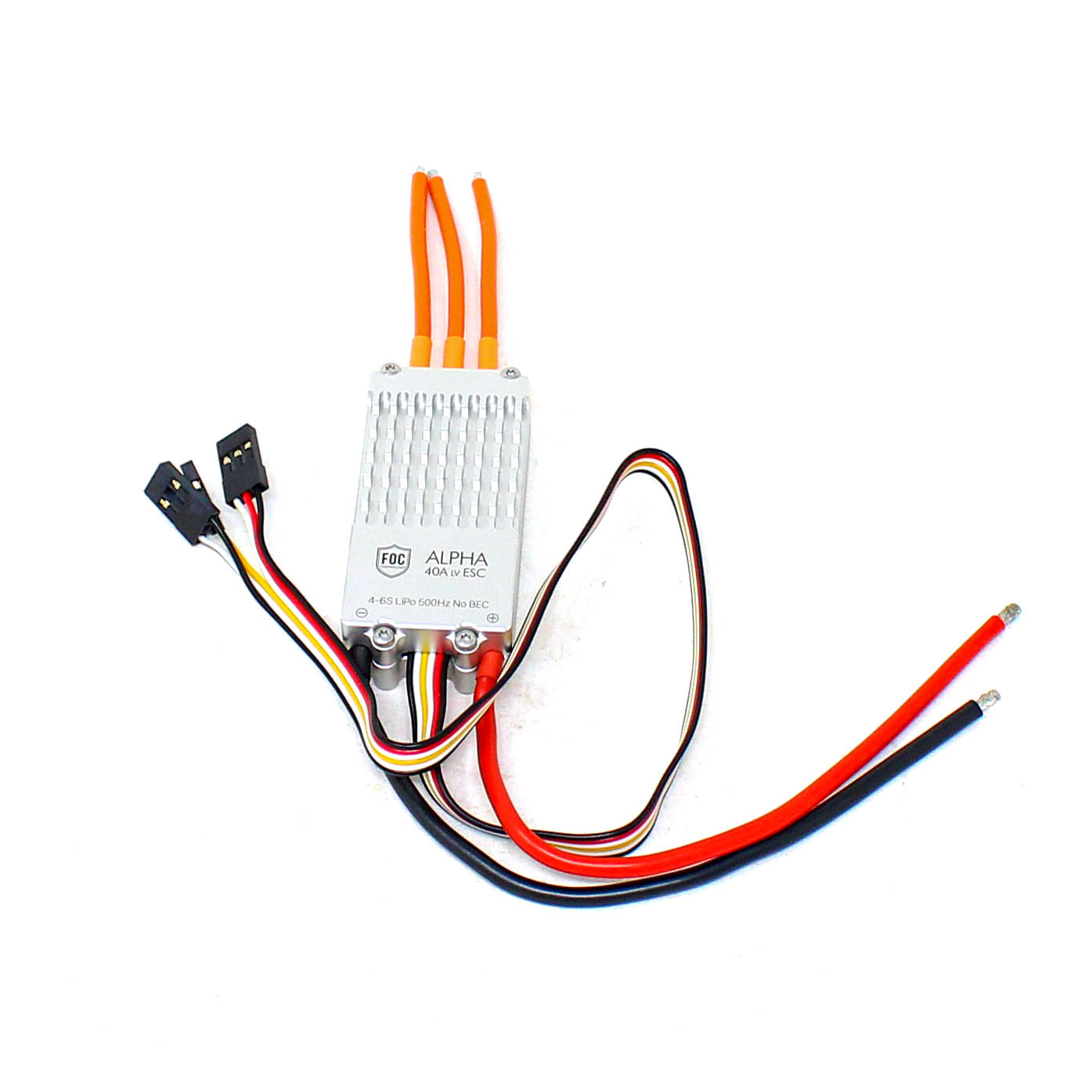

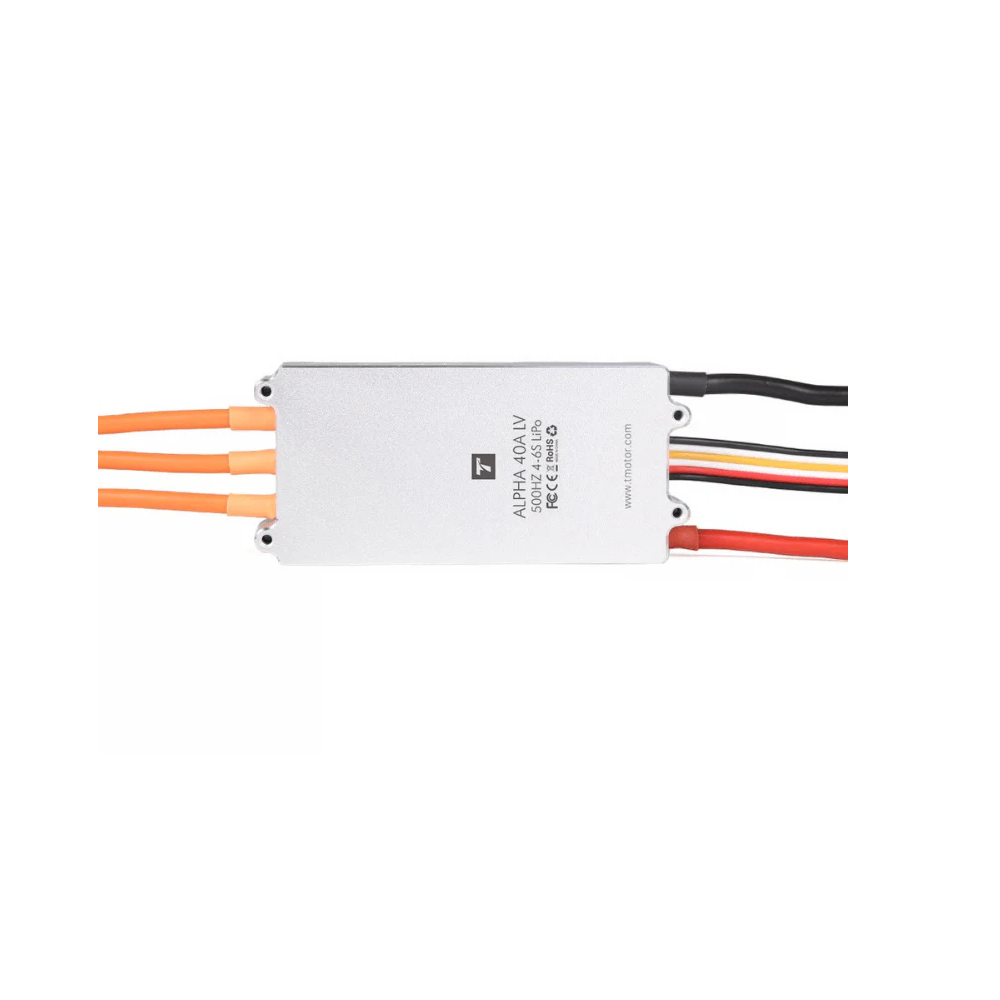

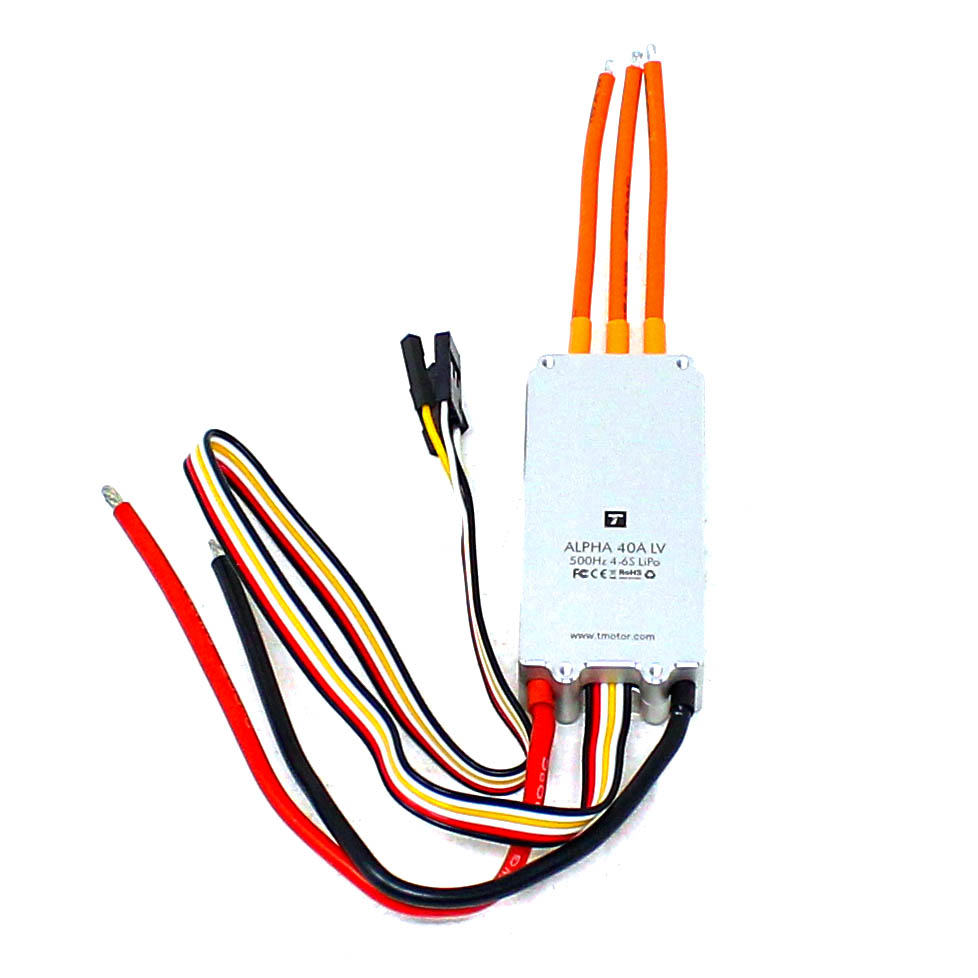

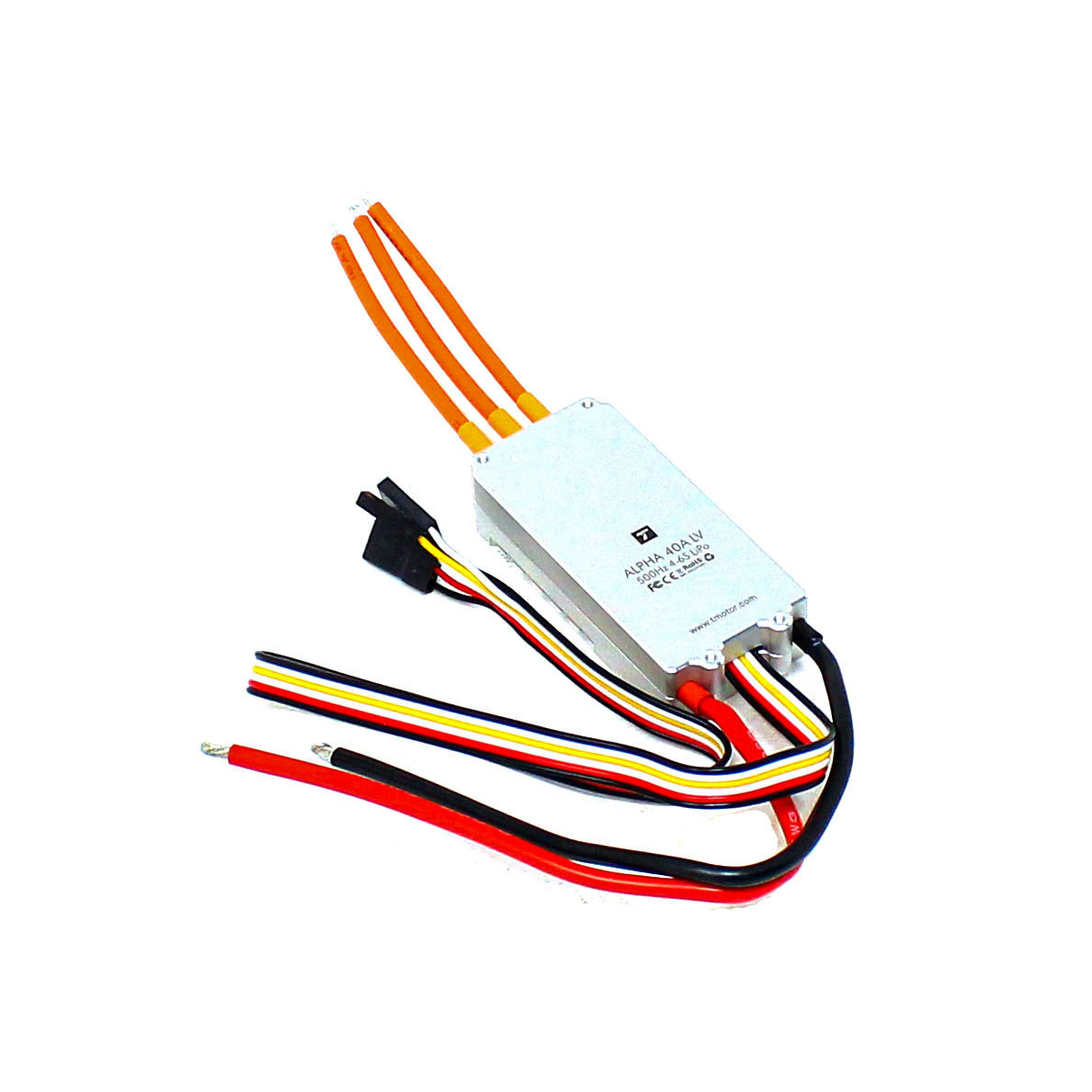

T Motor ALPHA 40A 6S ESC

₹7,246.38 (Including tax)

Model: ALPHA 40A
Brand: T-motor
Voltage: 4-6S ( 18-25.2V)
Current: 40A
Throttle range: 1100-1940μs
Special core program for multi-rotor controller greatly improve throttle response
Power by independence stabilivolt IC supply microprocessor is with better antijamming performance for stability

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹6,884.07 (Including tax)
11 - 20	8%	₹6,666.66 (Including tax)
21 - 40	10%	₹6,521.74 (Including tax)
41 - 100	12%	₹6,376.82 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

20 People watching this product now!

SKU: rz24314319 Categories: Drone Parts, (ESC) Drone Speed Controller

Description

Low noise ALPHA 40A 6S T-motor ESC Featured with low voltage, fast response and linear throttle, Low interference and high efficiency. ALPHA ESC has faster responses with less pulse current and steady startup as compared with traditional square wave driving. This Tiger motor ESC contains over current/Motor Lock-up/short circuit/Low voltage protection. Its Intelligent design enables ALPHA ESC to timely detect parameters as to voltage, current and temperature.

Incorporates IP55 grade to keep water and dust away protect ESC from damage of liquid corrosion as to pesticide for safe operation and 15-20% light-weight design.

Click Here to explore more.

Features:

Special core program for multi-rotor controller greatly improve throttle response
Power by independence stabilivolt IC supply microprocessor is with better antijamming performance for stability
FOC sine driving is adopted for less noise and torque ripple , and better motor and ESC protection
FOC ESCs are with output interface of RPM signal and error status signal
Parameter as to real-time output throttle, RPM, current, capacity temperature and MOSFET temperature are available
30KHz PWM driving frequency
Online upgrading of ESC firmware is available (Data LINK is needed)

Packages Includes:

1 x T Motor ALPHA 40A 6S ESC

1 x User Manual

Additional information

Brand	T-motor
Model	ALPHA 40A
Item Name	40A 500HZ 4-6S FOC ESC
Voltage	4-6S ( 18-25.2V)
Current	40A
Instantaneous current	（10s):60A
Programming Line	PVC wiring-30 CORE-3-300MM (Black Red White/JR 3P head)
BEC	NO
Standby power consumption	≤50mA
Throttle range	1100-1940μs
Throttle refresh frequency	500Hz
Throttle response speed	120ms
Recommend Motor	U3 700KV , U5 400KV , MN5212 340KV , MN4006 380KV , MN501S 360KV , MN501S 300KV , MN7005 230KV
Signal Line	PVC wiring-30 CORE-2-300MM (blank BLACK/JR 3P head)
Color	Silver
Length(mm)	6
Width(mm)	3
Height(mm)	1.5
Weight(g)	56
