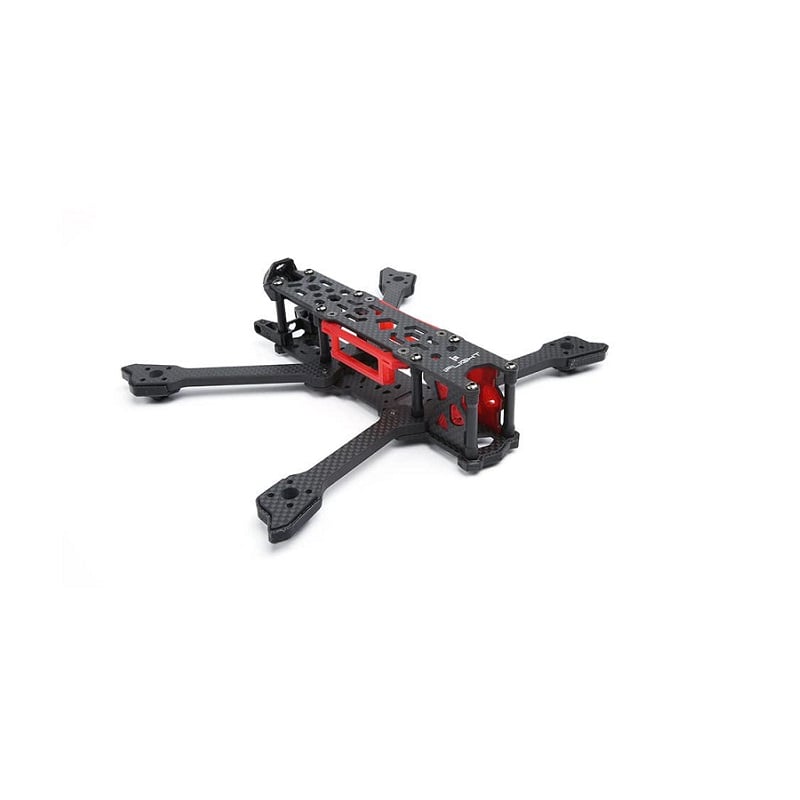

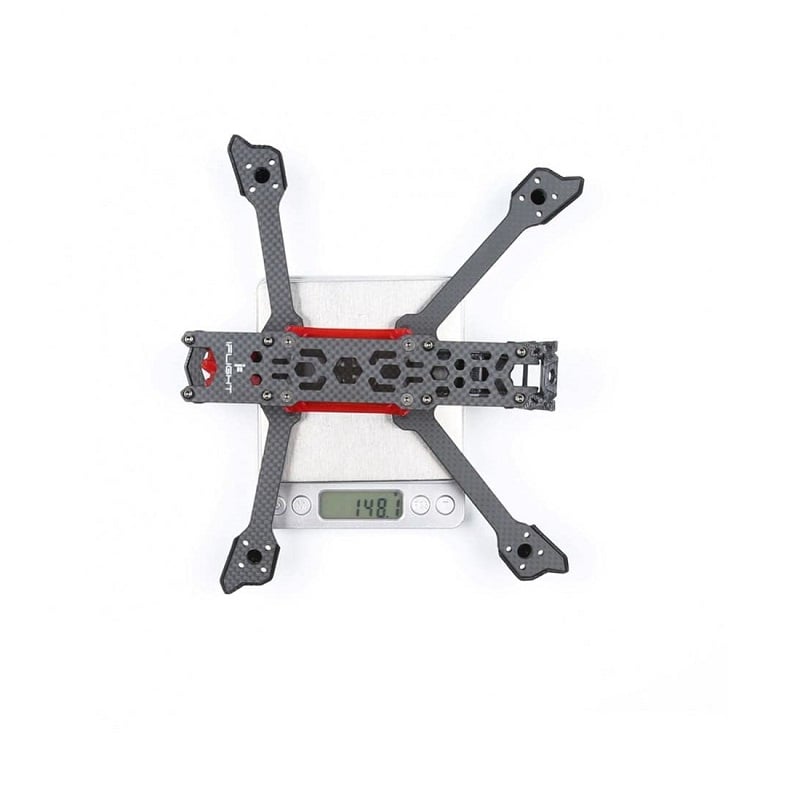

TITAN DC5 HD 222mm FPV Carbon Fiber Frame

The new version has an improved arm design. Increased strength and width at the screwed anchor points, increased carbon thickness from 5mm to 6mm. All earlier versions of the DC5 V1.4 are compatible. The TITAN DC5 V1.4 HD Frame perfectly fit the amazing new DJI FPV system, this quad makes flying FPV truly breathtaking.

Features:

1.  Popular Deadcat style configuration
2. Optimized weight distribution: DJI unit and Stack centered
3. Fits both 30.5x and 20x stacks
4. Full 3K Carbon Fiber airframe with chamfered arm
5. 222mm wheelbase

Specifications:

1. Wheelbase (mm): 222
2.  Main body dimension (mm): 185*133
3.  Bottom to top distance (mm):  6mm
4.  Arm thickness (mm): 6
5. Bottom plate thickness (mm): 3
6. Top plate thickness (mm): 2.5
7. Camera plate thickness (mm): 1.5( 2.5mm included TPU inserts)
8. Mounting Holes (mm): 30.5*30.5

Package Includes:

1 x TITAN DC5 HD 222mm FPV Carbon Fiber Frame
