Description

The TITAN DC7 HD Frame perfectly fits the amazing new DJI FPV system with boomerang arms, this quad makes flying FPV truly breathtaking.

Features:

1. Popular Deadcat style configuration, No prop in View
2. Optimized weight distribution: DJI unit and Stack centered
3. Fits both 30.5x and 20x stacks
4. Full 3K Carbon Fiber airframe with chamfered boomerang arm
5. 333mm wheelbase, weight: 208.8g dry with TPU parts

Specifications:

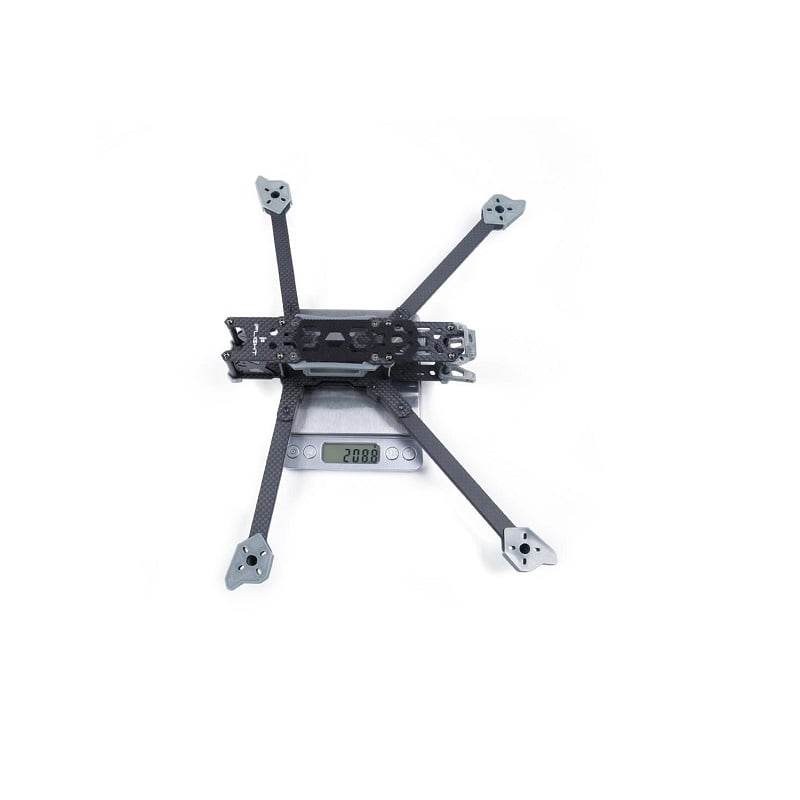

1. Weight: 208.8 (with TPU parts, and battery anti-slip pads)
2. Wheelbase (mm): 333
3. Main body dimension (mm): 183*287
4. Bottom-to-top distance (mm): 35
5. Arm thickness (mm): 6
6. Bottom plate thickness (mm): 3
7. Top plate thickness (mm): 2.5
8. Camera plate thickness (mm): 1.5mm( 2.5mm included TPU inserts)
9. Mounting Holes : 30.5*30.5mm / 20*20mm
10. Support camera size: 19*19mm 22*22mm
11. Recommended motors: 22xx, 23xx

Package Includes:

1 x TITAN DC7 HD Frame

1 x Screw Bag

1 x TPU Camera mount adapters

4 x Arm guard/Motor mount

1 x TPU Bracket Mount for DJI Air Unit

1 x TPU Antenna Mount for DJI Air Unit Antenna

1 x TPU bottom plate front protective mount

1 x TPU bottom plate rear protective mount

1 x Battery Anti-slip Mat

2 x Battery Straps
