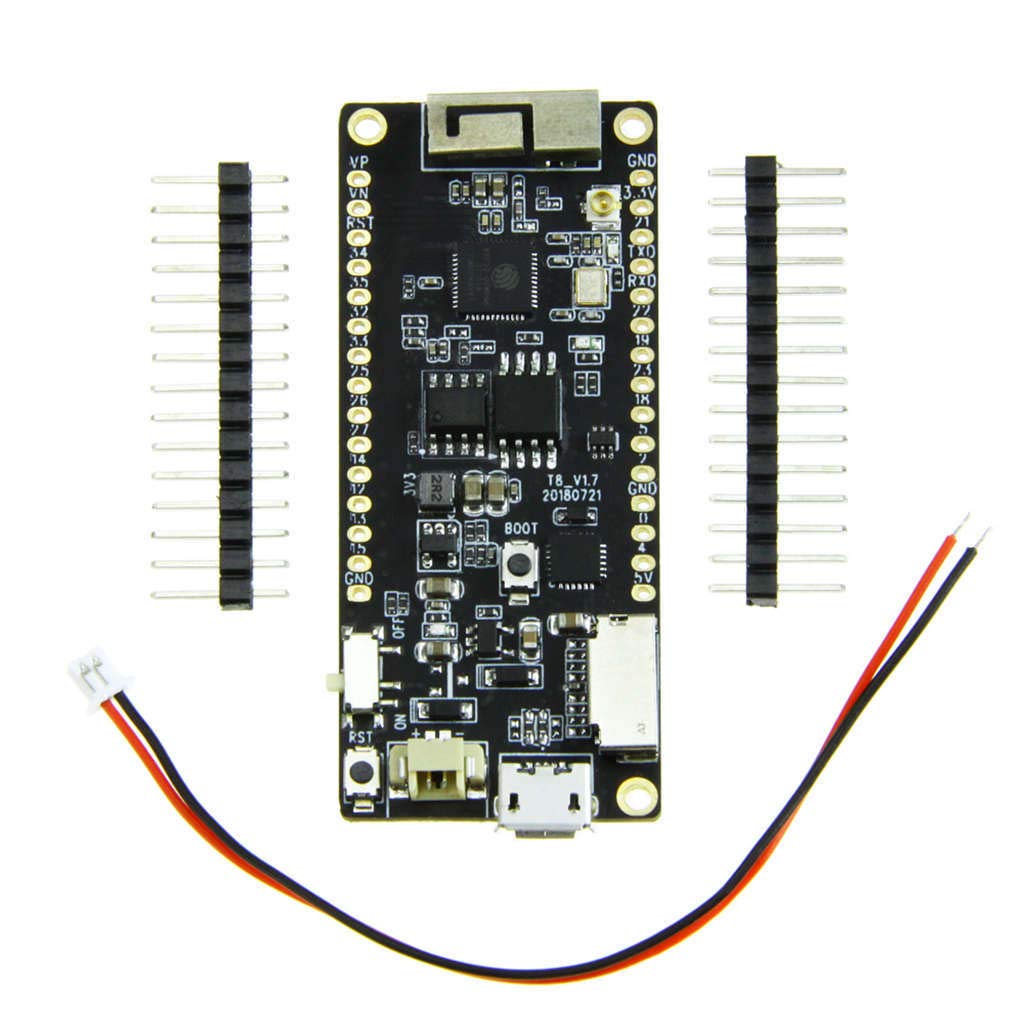

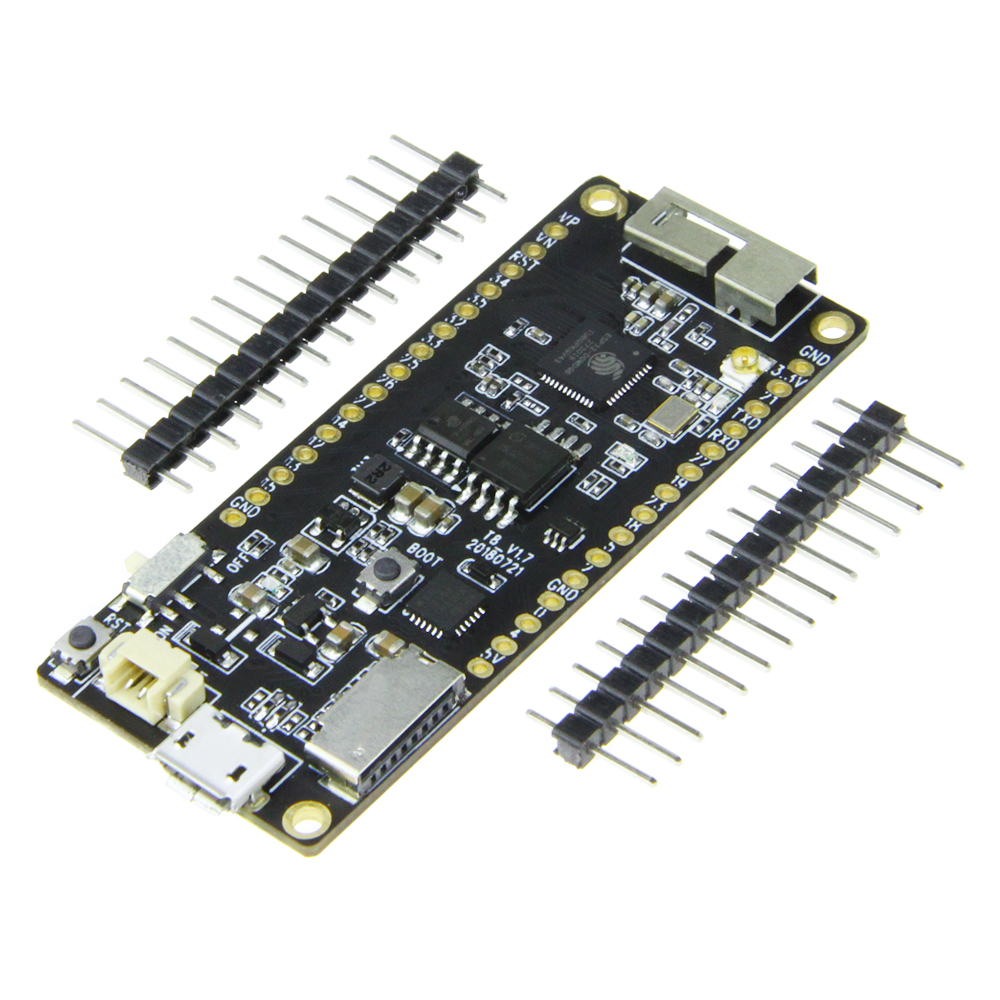

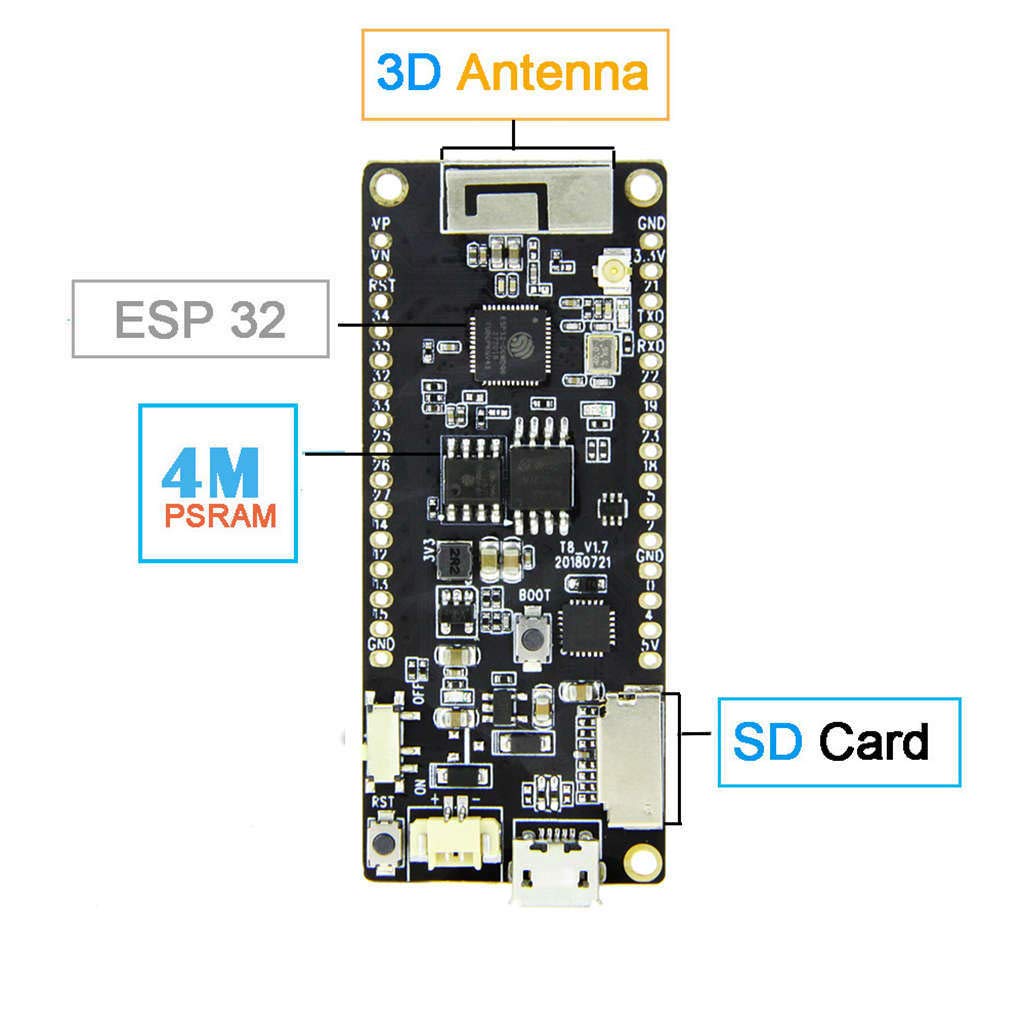

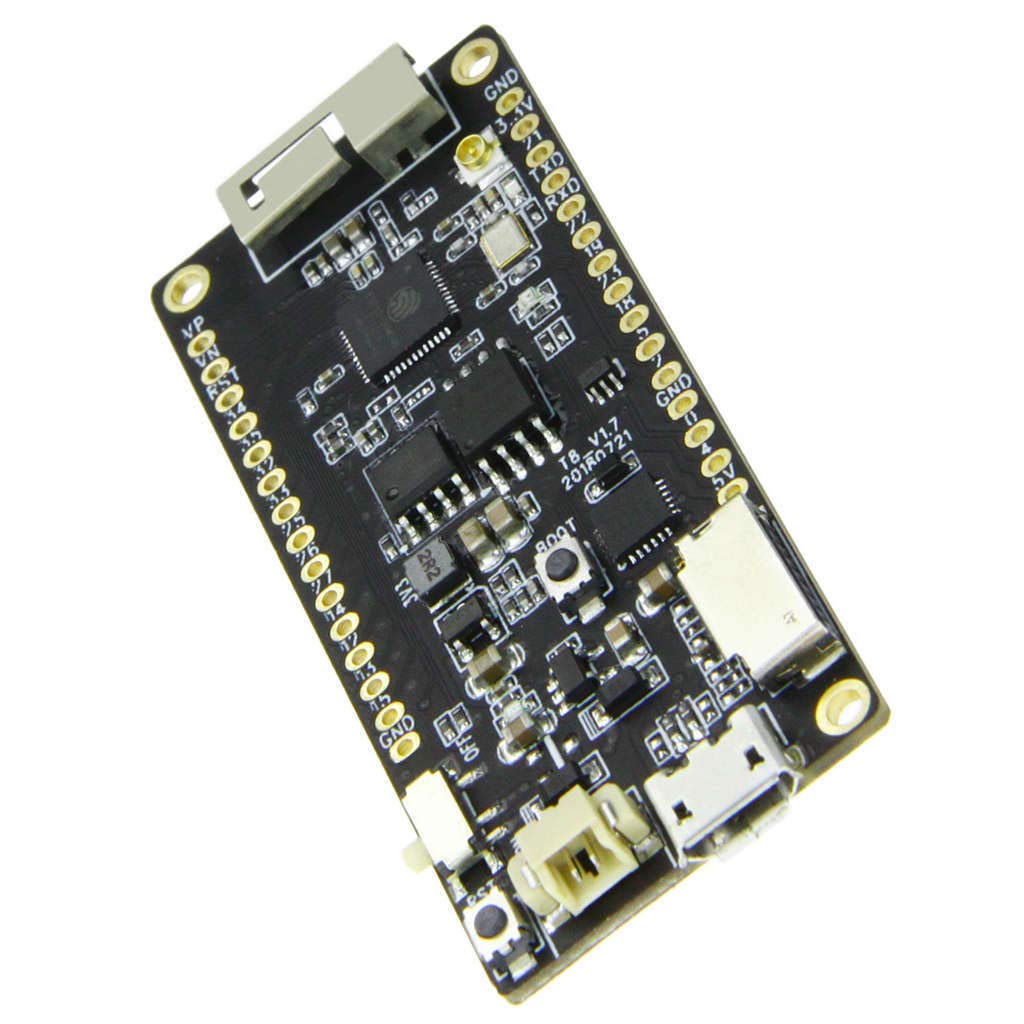

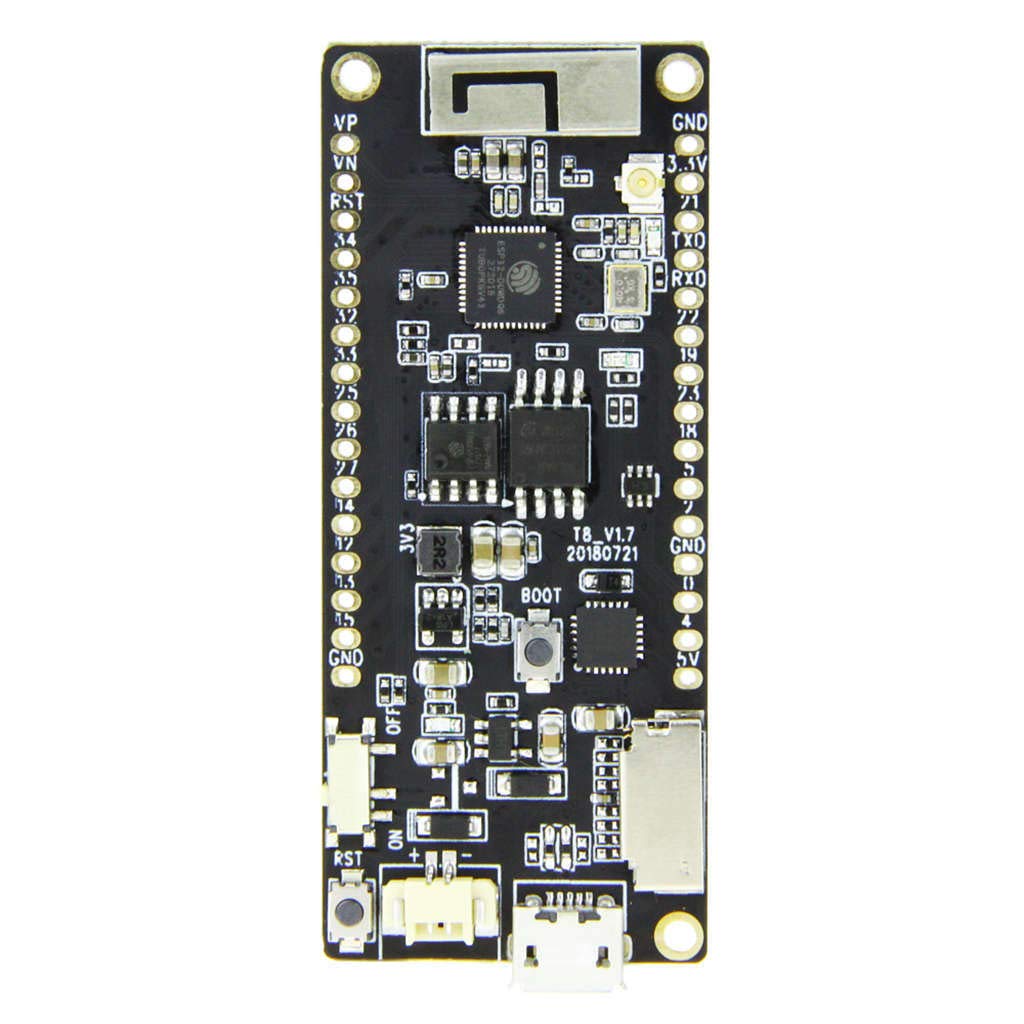

This is a TTGO T8 V1.7 ESP32-WROVER 8MB PSRAM TF CARD 3D ANTENNA WiFi & Bluetooth Module Micro-Python. The module is used in the radio frequency range. This module has a powerful enough onboard processing and storage capability that allows it to be integrated with other application-specific devices through minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, which is designed to occupy a minimal PCB area. It is also used in Bluetooth.

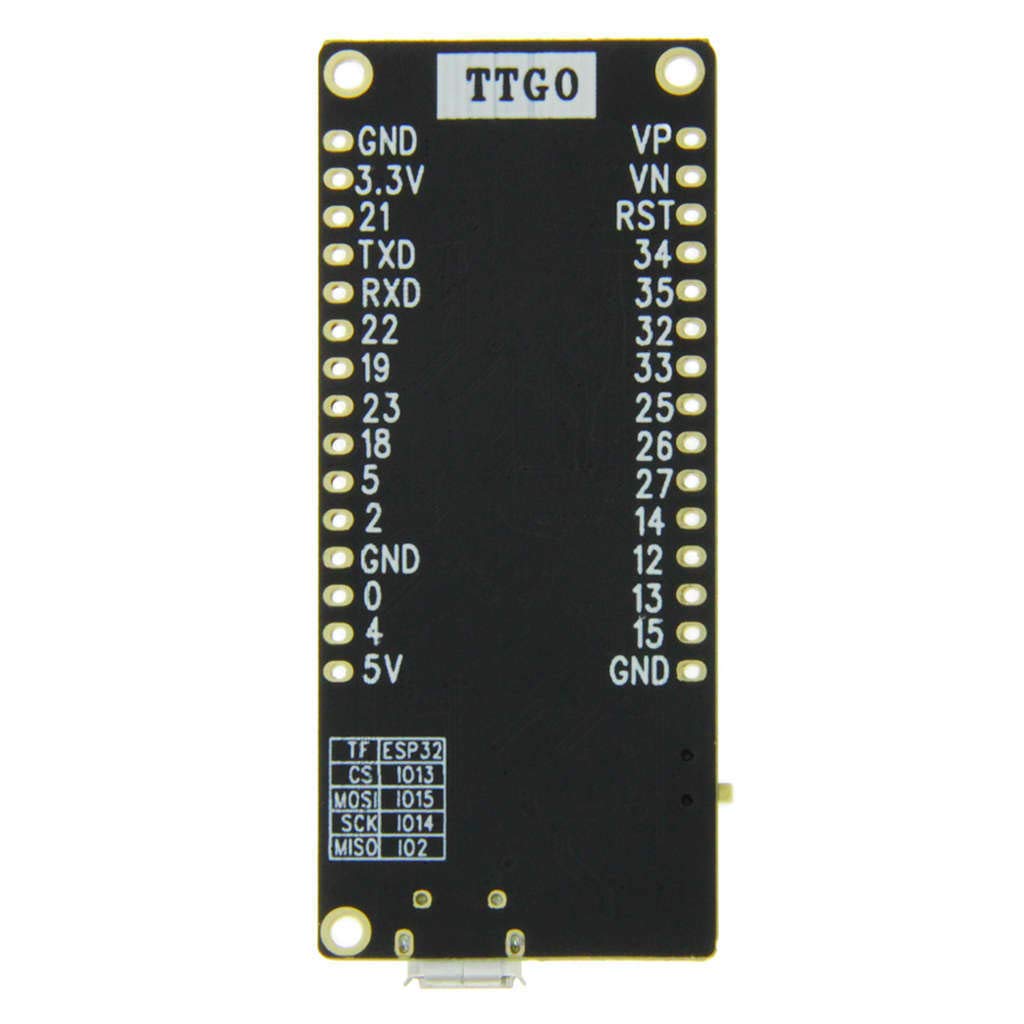

Pin Description:

Data Download Link
https://github.com/LilyGO/TTGO-T8-ESP32

Features:

1. WIFI & Bluetooth
2. 4MB Flash & 8MB PSRAM

Package Includes:

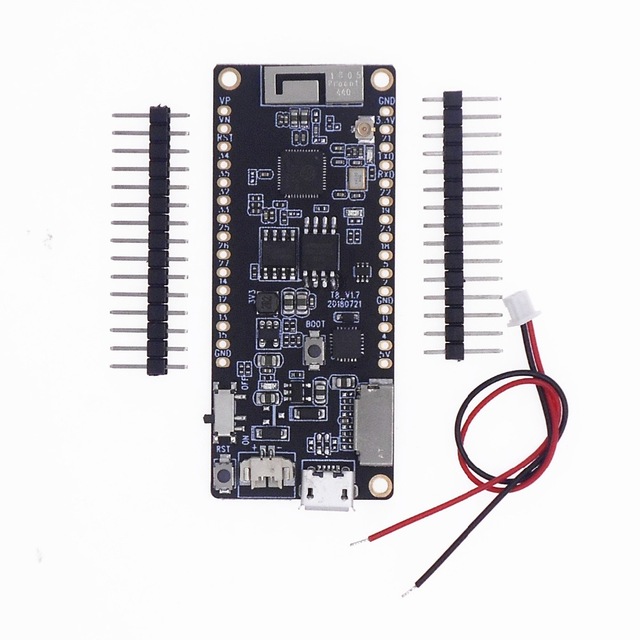

1 x TTGO T8 V1.7 ESP32-WROVER 8MB PSRAM TF CARD 3D ANTENNA WiFi & Bluetooth Micro-Python

This SX1278 LoRa Series Ra-02 Spread Spectrum Wireless Module is a wireless transmission module based on SEMTECH’s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.

The LoRa series module Ra-01 is designed and developed by Flawless Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH’s patented LoRa modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability.

At the same time, compared with the traditional modulation technology, LoRa modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme cannot consider the distance, interference and power consumption at the same time.

Features :

1. LoRa  Spread Spectrum modulation technology
2. Constant RF power output at + 20dBm-100mW voltage change
3. High sensitivity: down to -148dBm
4. Half-duplex SPI communication
5. Programmable bit rates up to 300kbps
6. Supports FSK, GFSK, MSK, GMSK, LoRa  and OOK modulation modes
7. 127dB RSSI dynamic range
8. Automatic RF signal detection, CAD model, and very high-speed AFC
9. Packet engine with CRC up to 256 bytes
10. Small footprint dual-row stamp-hole patch package
11. Shielded housing

Package Includes :

1 x SX1278 LoRa Series Ra-02 Module

The RFM95W/96W/98W transceivers feature the LoRa TM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. Using LoRa TM modulation technique RFM95W/96W/98W can achieve a sensitivity of over -140dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

LoRa TM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption. These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The
RFM95W/96W/98W deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

Application:

1. Automated Meter Reading.
2. Home and Building Automation.
3. Wireless Alarm and Security Systems.
4.  Industrial Monitoring and Control.
5. Long range Irrigation Systems.

Features:

1. +14 dBm high efficiency PA.
2. LoRa TM Modem.
3. Programmable bit rate: 300 kbps.
4. Excellent blocking immunity.
5. Fully integrated synthesizer with a resolution of 61 Hz.
6. FSK, GFSK, MSK, GMSK, LoRa TM and OOK modulation.
7. Built-in bit synchronizer for clock recovery.
8. Preamble detection.
9. Automatic RF Sense and CAD with ultra-fast AFC.
10. Built-in temperature sensor and low battery indicator.

Specification:

1. Dynamic Range RSSI: 127 dB
2. Packet engine: 256 bytes with CRC.
3. Module Size: 16x16mm.
4. Low RX current: 10.3 mA.
5. register retention: 200 nA.
6. maximum link budget: 164 dB.
7. RF output: 3.3V:
8. High sensitivity: down to -144 dBm.
9. Bullet-proof front end: IIP3 = -12.5 dBm.

Package Includes:

1 x LoRa module RFM98W-433S2R.

The RFM95W/96W/98W transceivers feature the Lo-Ra TM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. Using Lo-Ra TM modulation technique RFM95W/96W/98Wcan achieve a sensitivity of over -140dBm using a low cost crystal and bill of materials.

The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. Lo-Ra TM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption. These devices also support high performance (G) FSK modes for systems including WM Bus, IEEE802.15.4g. The RFM95W/96W/98W deliver exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing device.

Application:

1. Automated Meter Reading.
2. Home and Building Automation.
3. Wireless Alarm and Security Systems.
4. Industrial Monitoring and Control.
5. Long range Irrigation System.

Features:

1. Lo-Ra TM Modem.
2. 164 dB maximum link budget.
3. +14 dBm high efficiency PA.
4. Excellent blocking immunity.
5. FSK, GFSK, MSK, GMSK, Lo-Ra TM and OOK modulation.
6. Built-in bit synchronizer for clock recovery.
7. Preamble detection.
8. Automatic RF Sense and CAD with ultra-fast AFC.
9. Packet engine up to 256 bytes with CRC.
10. Built-in temperature sensor and low battery indicator.
11. Module Size：1

Specifications:

1. High sensitivity: down to -144 dBm.
2. Bullet-proof front end: IIP3 = -12.5 dBm.
3. +20 dBm – 100 mW constant
4. RF output: 3.3Vsupply .
5. Low RX current: 10.3 mA
6. Programmable bit rate: 300 kbps.
7. register retention: 200 nA
8. resolution: 61 Hz.
9. Dynamic Range RSSI: 127 dB

Package Includes:

1 x Lo-Ra module RFM95W-915S2R.

This is a TTGO Micro-32 V2.0 Wifi Wireless Bluetooth Module ESP32 PICO-D4 IPEX ESP-32. For the embedded development board to be able to do smaller, we designed the Micro-32, use the same function as the normal ESP32 module, but the area is reduced by 45%, which makes the product can be designed smaller, there is more space to add up some Module.

Data Download Link:

https://github.com/LilyGO/TTGO-micro32-V2.0

Features:

1. WiFi And Bluetooth Module
2.  there is more space to add up some Module

Package Includes:

1 x TTGO Micro-32 V2.0 Wifi Wireless Bluetooth Module ESP32 PICO-D4 IPEX ESP-32

EDATec 868M Lora Module for EU base on SX1303 CE  is a new generation of LoRaWAN gateway module in mini-PCIe form-factor with SPI interfaces based on Semtech® SX1303 and SX1250. It features extremely low power consumption, and outstanding performance with CE, FCC certified.

Block Diagram:

ED-GW1303S LoRaWAN gateway module support both US915 and EU868 frequency bands, enabling you to have a wide range of LoRaWAN frequency plan options to choose including EU868, US915, AS923, AS920, AU915, KR920,
and IN865. ED-GW1303S is designed for M2M and IoT applications and can be widely applied in LPWAN gateway-supported scenarios. It would be a perfect choice for you to significantly reduce the technical difficulties and time consumption when developing the LoRa gateway devices, including LoRaWAN gateway, miner hotspots, etc

Features:

1. Mini PCIe form factor with SPI interfaces
2. Powered by Semtech® SX1303 baseband processor
3. Ultra-low operating temperature without additional heat dissipation needed
4. High sensitivity with Semtech® SX1250 TX/RX front-end; TX power up to 25 dBm @3.3V
5. Supports global license-free frequency band including EU868, US915, AS923, AU915, KR920 and IN865
6. Certified with CE, FCC

Package Includes:

1 x EDATec 868M Lora Module for EU base on SX1303 CE
