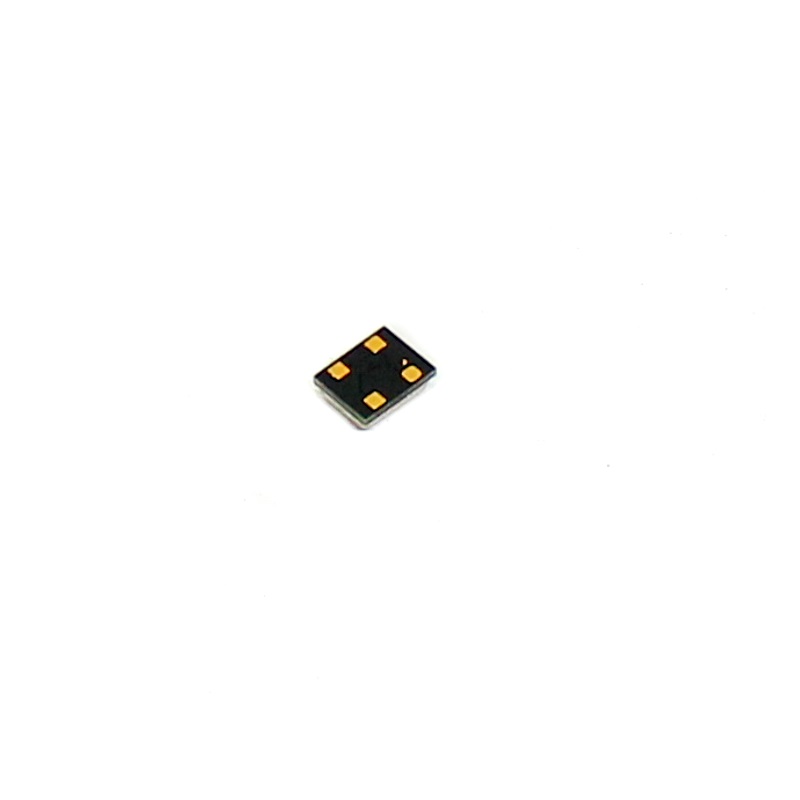

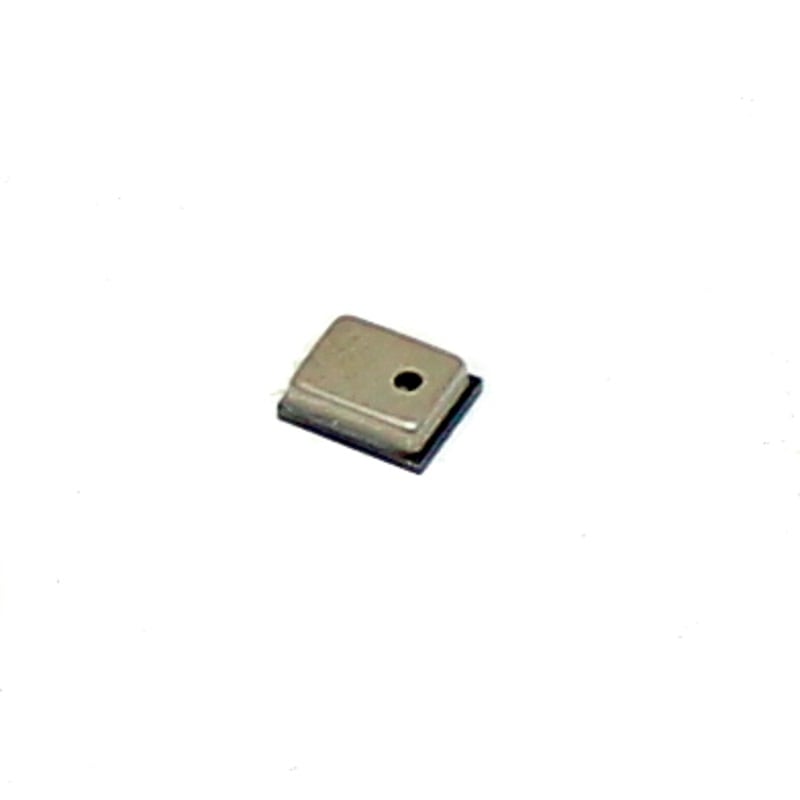

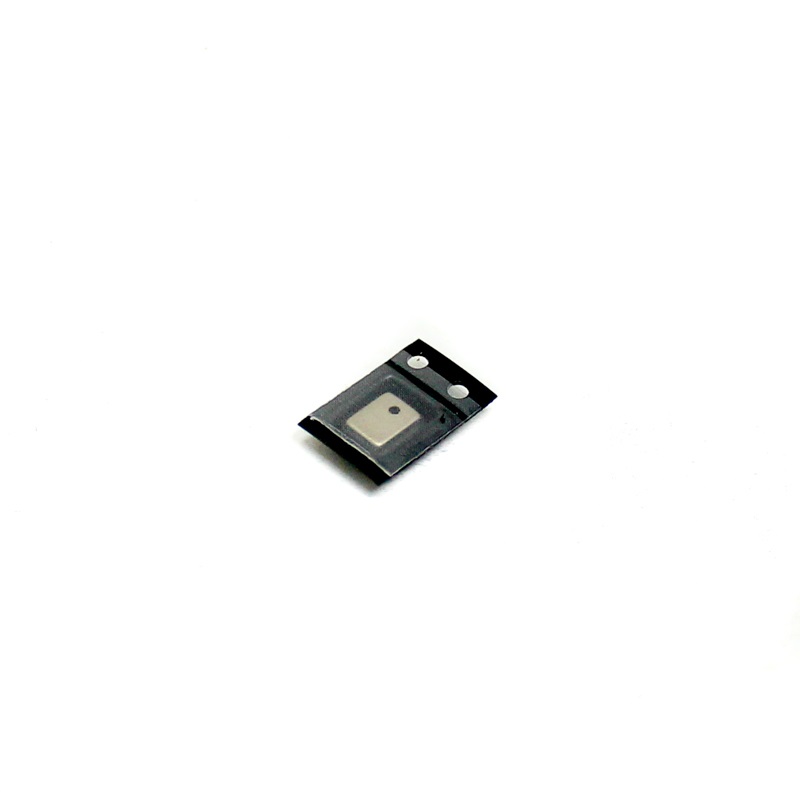

TVOC Sensor Model AGS10

SKU: 1152004
In Stock

125.00

  1. Product model AGS10 sensor
  2. Power supply voltage 3.0±0.1V DC
  3. Minimum supply current 23mA
  4. Output mode I2
  5. C slave mode (less than 15KHz)
  6. Standard test gas ethanol
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

AGS10 sensor is a MEMS type ethanol gas sensor with calibrated digital signal output. It uses dedicated digital module acquisition technology and gas sensing technology to ensure that the product has extremely high reliability and excellent long-term stability.

This MEMS gas sensor has the characteristics of low power consumption, high sensitivity, fast response, high reliability and stability, low cost, and a simple driving circuit.


Features:

  1. Lifespan >6 years (@25 degrees in clean air)
  2. Sensor category MEMS semiconductor metal oxide sensor
  3. Output unit ppb or grade
  4. Measuring range 0-9999
  5. Typical accuracy (25℃ 50%RH) 25% F.S
  6. Standard test gas ethanol

Package Includes:

1 x TVOC Sensor Model AGS10

Additional information

Model

AGS10 sensor

Power supply voltage

3.0±0.1V DC

Minimum supply current

23mA

Typical supply current

27mA

Maximum supply current

33mA

Typical power

75mW

Sampling period

>=2S/time

Warm-up time

>=120 seconds

Working temperature

0℃~50℃

Working humidity

0~95%RH
