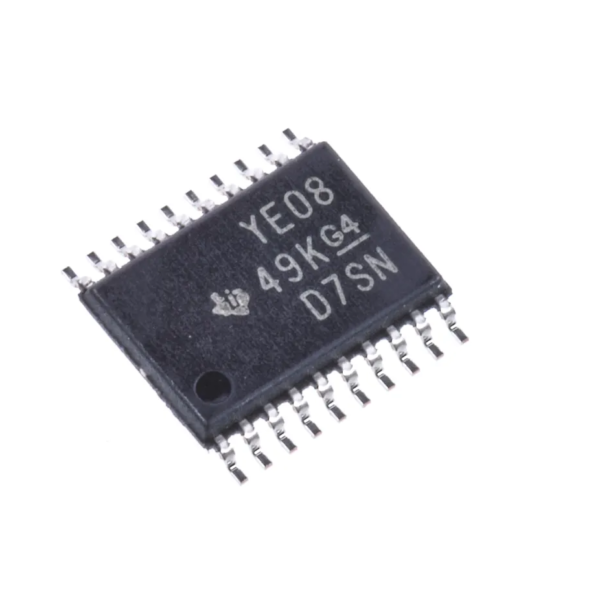

TXS0108EPWR TSSOP-20 TXB0108 8-Bit Bidirectional Voltage-Level Translator IC

SKU: 655517
In Stock

135.00

  1. Case/Package: VSSOP
  2. Contact Plating: GoldMount: SMD-8
  3. Weight: 0.000339 oz
  4. Data Rate: 100 Mbps
  5. High-Level Output Current: -20 uA
  6. Logic Function: Translator
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

TXB0108 8-Bit Bidirectional Voltage-Level Translator with Auto-Direction Sensing and ±15-kV ESD Protection

This 8-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply
voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5- V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. VCCA should not exceed VCCB.

Applications

  1.  Handset
  2. Smartphone
  3. Tablet
  4. Desktop PC

Note : YF08E printed on IC does not affect the product functionality.


Specifications and Features:

  1. 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)
  2. VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State
  3. OE Input Circuit Referenced to VCC
  4. Low Power Consumption, 4-μA Max ICC
  5. Ioff Supports Partial-Power-Down Mode Operation
  6. Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  7. ESD Protection Exceeds JESD 22 – A Port
  8. 2000-V Human-Body Model (A114-B)
  9. 1000-V Charged-Device Model (C101) – B Port
  10. ±15-kV Human-Body Model (A114-B)
  11. ±8-kV Human-Body Model (A114-B) (YZP Package Only)
  12. 1000-V Charged-Device Model (C101)

Package Includes:

1 x TXS0108EPWR TSSOP-20
