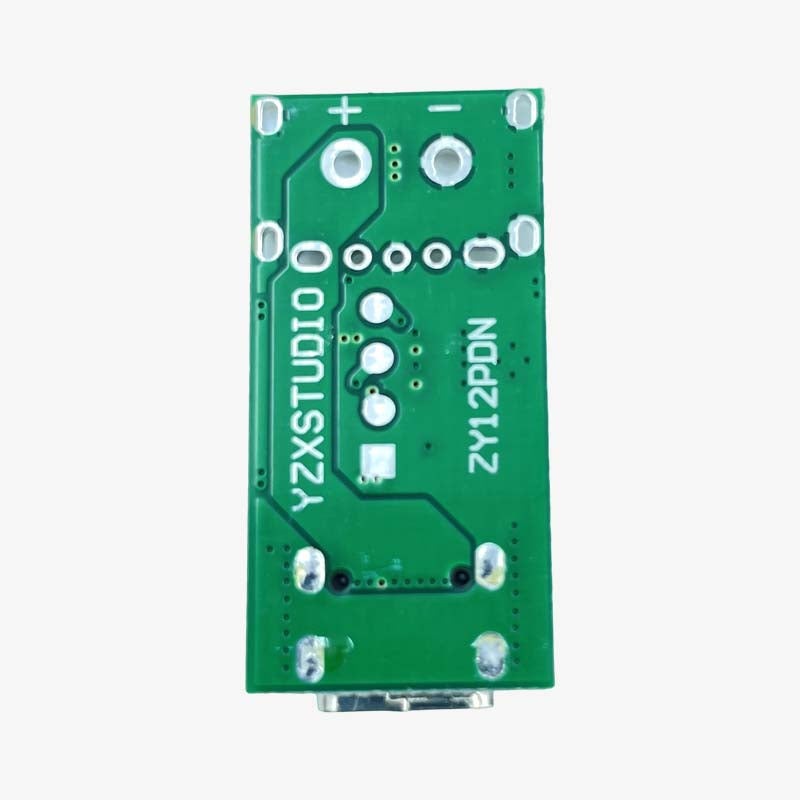

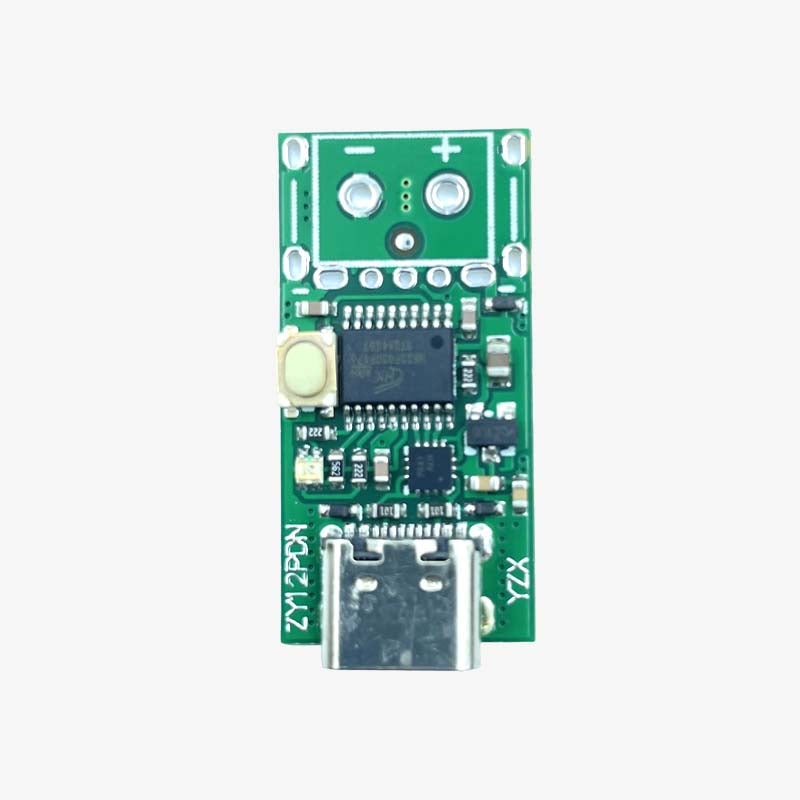

Type-C USB-C PD2.0 3.0 to DC USB Decoy Fast Charge Trigger Poll Detector Charging Module ZY12PDN Bare Board

This is a versatile electronic module designed to enable hardware-triggered Power Delivery (PD) features. This module ensures stable, reliable, and program-free PD functionality, making it suitable for various DIY projects and applications.

Features:

• Supports traditional female port or PD adapter(with cable). Innovative hardware trigger PD features stable, reliable and program-free.
• Supports maximum power up 100W, low self-consuming, and fast decoy.
• Welding the DC cable and using heat shrink tube to charge your laptop with PD mobile power.
• Up to 15V or 20V can be triggered.
• Can trigger any voltage in accordance with PD2.0 specification
• Trigger Principal: The voltage that is less than or equal to the value PD adapter supports can be triggered. For example, set up 15V while the adapter supports 5/9/20V, then 9V will be triggered.

Specifications:

• Voltage Range: 3V to 20V
• Current Handling: 0A to 5A
• Maximum Power: 100W
• USB Type: C-Type
• Dimensions: 30 x 15 mm

Package Includes:

1 x Type-C USB-C PD2.0 3.0 to DC USB Decoy Fast Charge Trigger Poll Detector Charging Module ZY12PDN Bare Board
