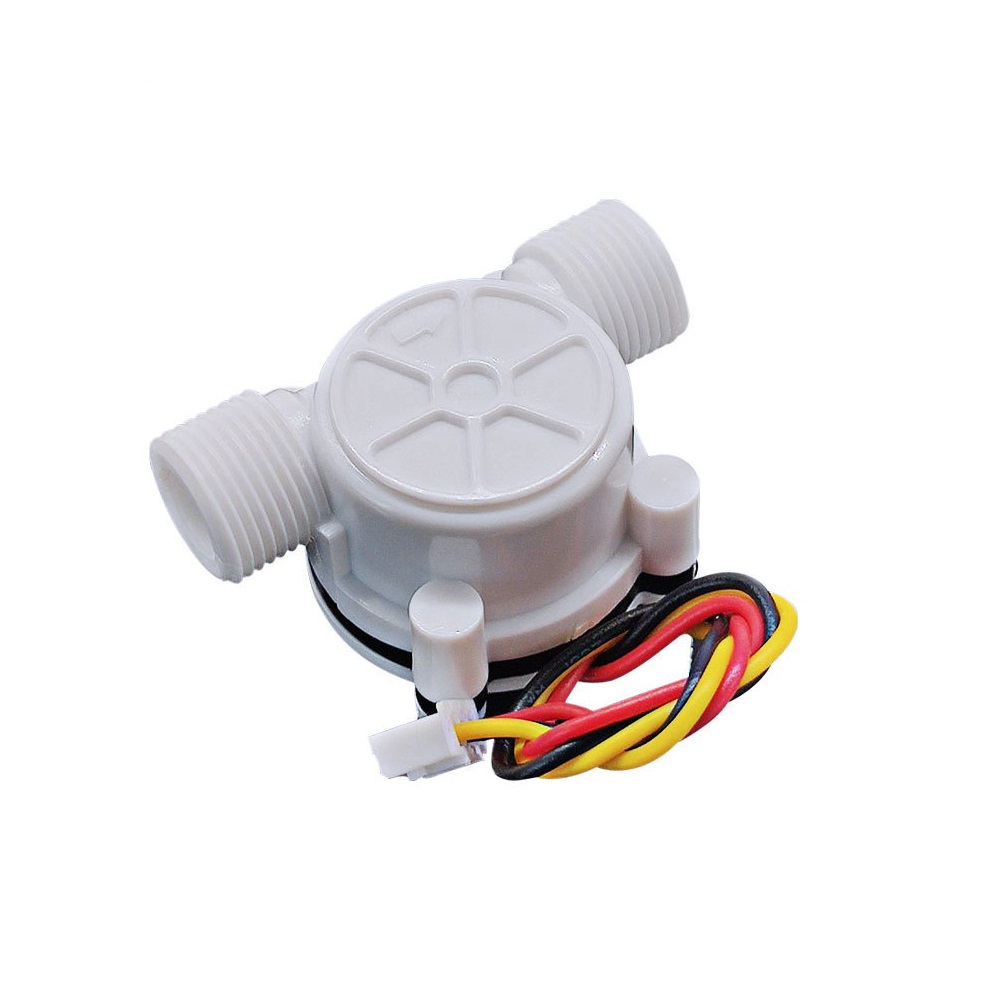

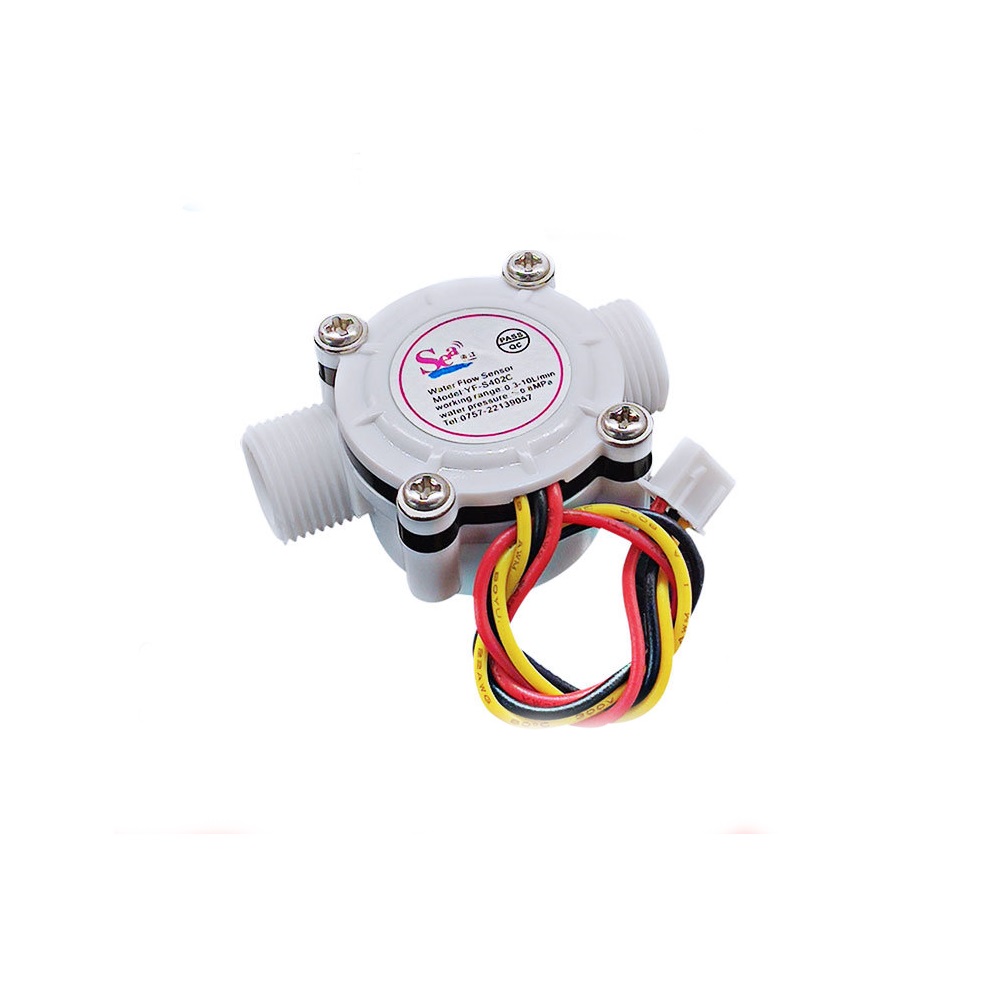

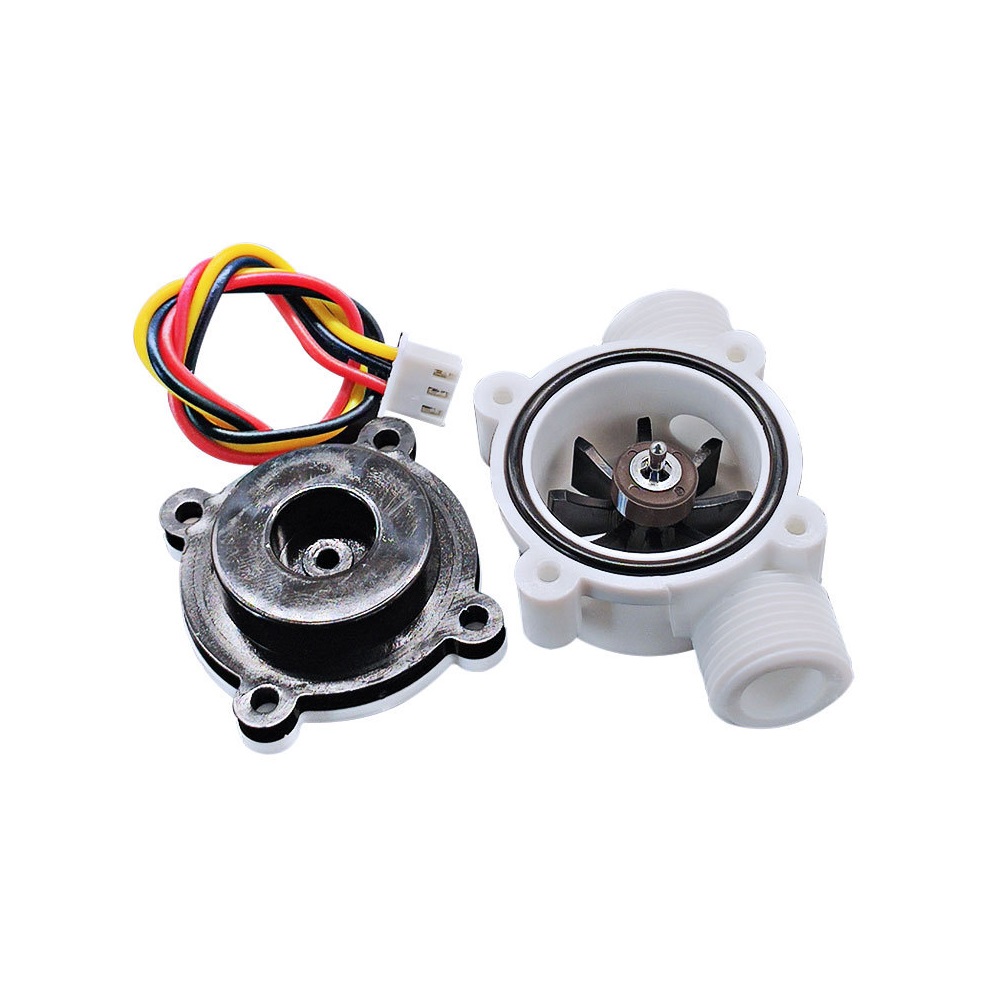

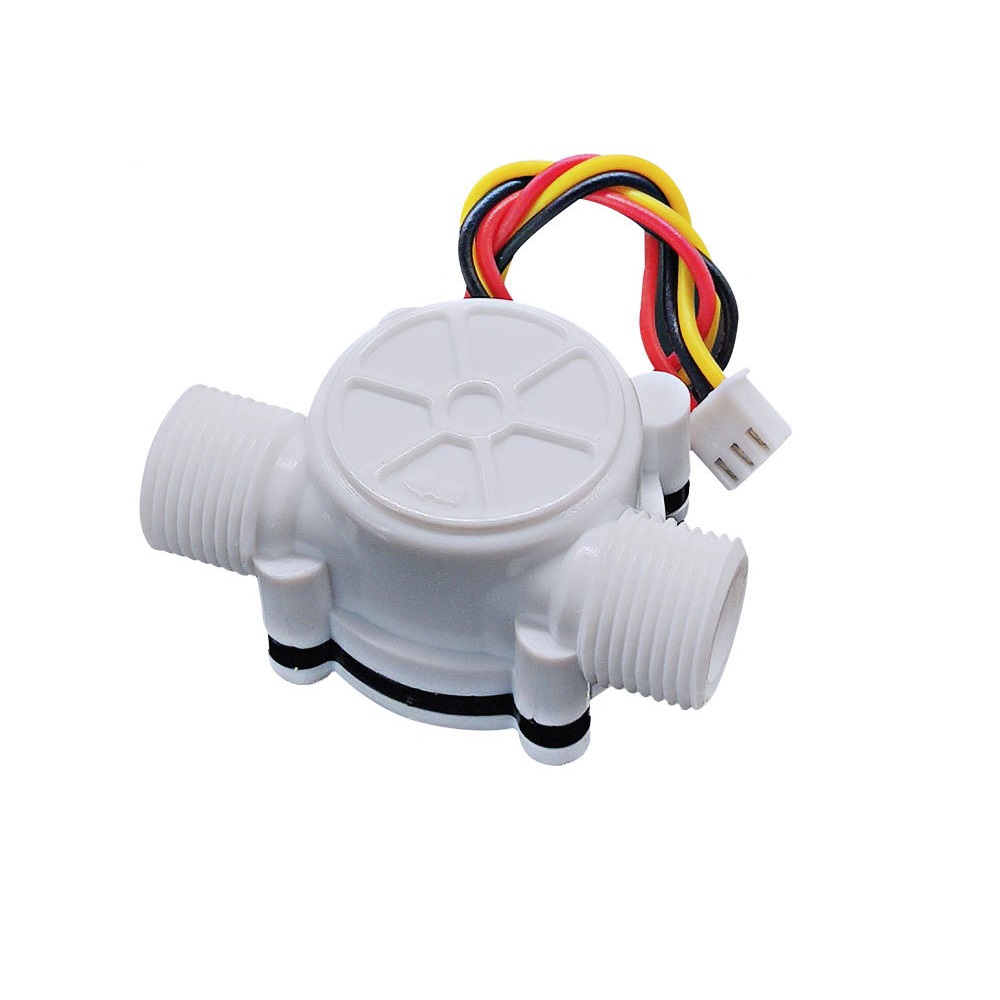

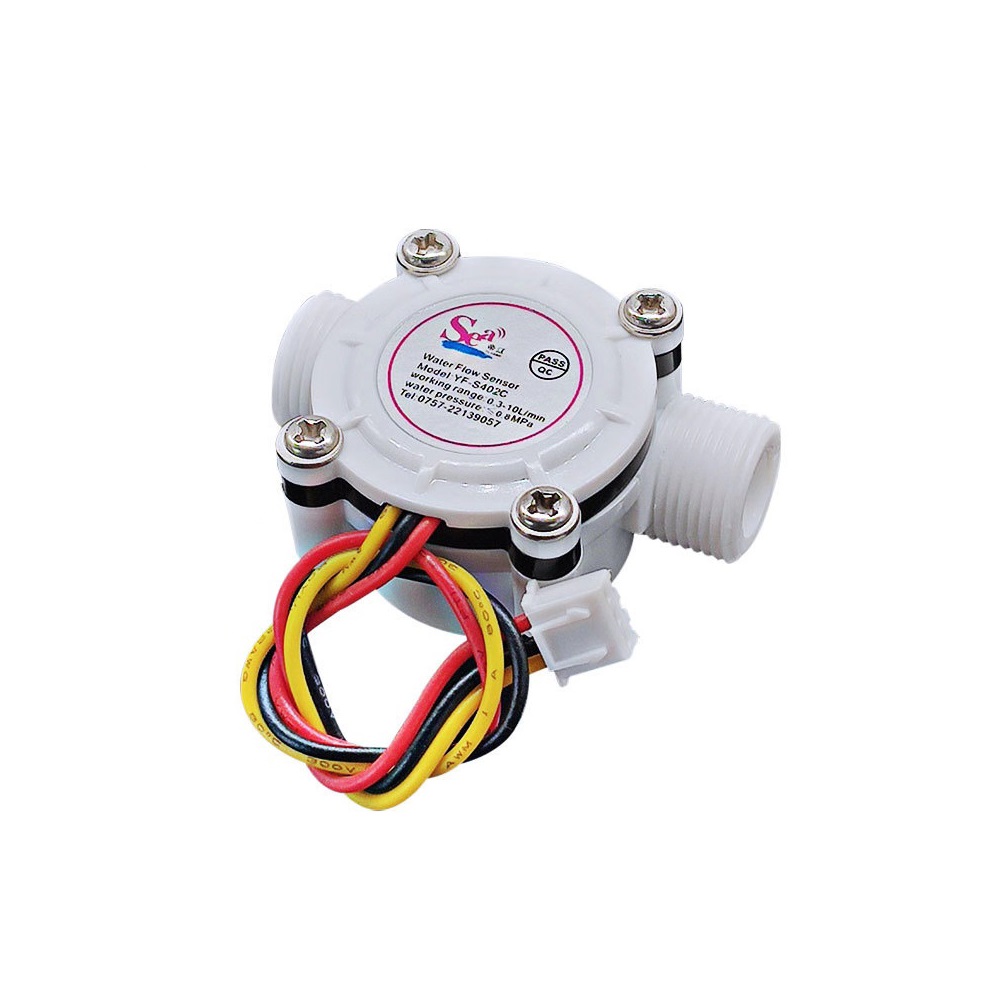

The water flow sensor measures the rate of a liquid flowing through it. The YF-S402C water flow sensor consists of a plastic valve body, flow rotor, and hall effect sensor. It is usually used at the inlet end to detect the amount of flow. When liquid flows through the sensor, a magnetic rotor will rotate and the rate of rotation will vary with the rate of flow. The hall effect sensor will then output a pulse width signal. Connect it to a microcontroller and you can monitor multiple devices such as your coffee maker, sprinkler, or anything else, and control the water flow rate to suit your needs!

Features:

1. Analog Sensor
2. Accuracy Up to 5%
3. Water Proof Sensor
4. Standard 1/8″ Nozzle Size
5. Max. Supported Water Flow: 10L/Min

Package Includes:

1 x Water Flow Sensor (Sea) YFS402C Flowmeter G3/8 0.3- 10L/min 5-18V

Gravity: Analog TDS Sensor/Meter for Arduino is an Arduino-compatible TDS Meter Kit for measuring TDS value of the water, to reflect the cleanliness of the water. TDS meter can be applied to domestic water, hydroponic and other fields of water quality testing. You may also check Liquid Senser Selection Guide to get better familiar with our liquid sensor series.

TDS (Total Dissolved Solids) indicates that how many milligrams of soluble solids dissolved in one liter of water. In general, the higher the TDS value, the more soluble solids dissolved in water, and the less clean the water is. Therefore, the TDS value can be used as one of the references for reflecting the cleanliness of water.

TDS pen is widely used equipment to measure TDS value. The price is affordable, and it is easy to use, but it is not able to transmit data to the control system for online monitoring to do some water quality analysis. The professional instrument has high accuracy and can send data to the control system, but the price is expensive for ordinary people. To this end, we have launched an analog TDS sensor kit that is compatible with Arduino, plug, and play, easy to use. Matching with Arduino controller, you can build a TDS detector easily to measure the TDS value of liquid.
This tds sensor supports 3.3 ~ 5.5V wide voltage input, and 0 ~ 2.3V analog voltage output, which makes it compatible with a 5V or 3.3V control system or board. The excitation source is an AC signal, which can effectively prevent the probe from polarization and prolong the life of the probe, meanwhile, increase the stability of the output signal. The TDS probe is waterproof, it can be immersed in water for a long time measurement.

Features:

Specifications:

Cable Float Switch is a control device for automatic On/Off pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing, the float Switch has a buoyancy that guarantees smooth, trouble-free operation under all conditions. The switch has a double chamber and a final remolding finish to make it absolutely hermetic.

Features:

1. It can test the pressure of the liquid.
2. The float switch is a switch that regulates fluid level in the tank or well etc
3. The float switch is resistant to water(sewage water) it is relatively capable of being used for oil, most acids and alkalis
4. The float switch is not explosion-proof.

Package Includes:

1 x Square 15M Float Switch For Industry Pump Tank Sensor

Cable Float Switch is a control device for automatic On/Off pumps, motors, and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing, the float Switch has a buoyancy that guarantees smooth, trouble-free operation under all conditions. The switch has a double chamber and a final remolding finish to make it absolutely hermetic.

 Note: images shown may vary from the actual product in terms of color according to availability from the supplier

Features:

1. It can test the pressure of the liquid.
2. The float switch is a switch that regulates fluid level in the tank or well etc
3. The float switch is resistant to water(sewage water) it is relatively capable of being used for oil, most acids, and alkalis
4. The float switch is not explosion-proof.

Specifications:

1. Input Voltage (V): 10(8A) 250V ~ 10(4A) 380V
2. Wire Length(mm): 10m
3. working Pressure: 0.1MPa
4. Operating Temperature (°C): 0~75℃
5. Electrical life: 1 x 100 000 times
6. Mechanical life: 5 x 100 000 times
7. Material: Plastic
8. Rectangle Box: 103x78x45 mm
9. Cylinder: 61x55mm

Package Includes:

1 x Square 5M Float Switch For Industry Pump Tank Sensor

Features:

1. Power supply: +5V
2. Working current: 25μA
3. Working temperature: -25~125℃
4. Detectable wall thickness: 1~3mm
5. Dimension(mm ± 1): 16.5 x 8.5 x 5.5 (Not include the cushion on the sensor)
6. Cable length: 30cm ± 1cm

Packages Includes:

1 x DFRobot Gravity: Capacitive Non-contact Liquid Level Sensor (3mm TR)

A cable Float Switch is a control device for automatic On/Off pumps, motors,s and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing, the float Switch has a buoyancy that guarantees smooth, trouble-free operation under all conditions. The switch has a double chamber and a final remolding finish to make it absolutely hermetic.

Features:

1. It can test the pressure of the liquid
2. The float switch is a switch that regulates fluid level in the tank or well etc
3. The float switch is resistant to water(sewage water) it is relatively capable of being used for oil, most acids and alkalis
4. The float switch is not explosion-proof

Package Includes:

1 x Square 6M Float Switch For Industry Pump Tank Sensor
