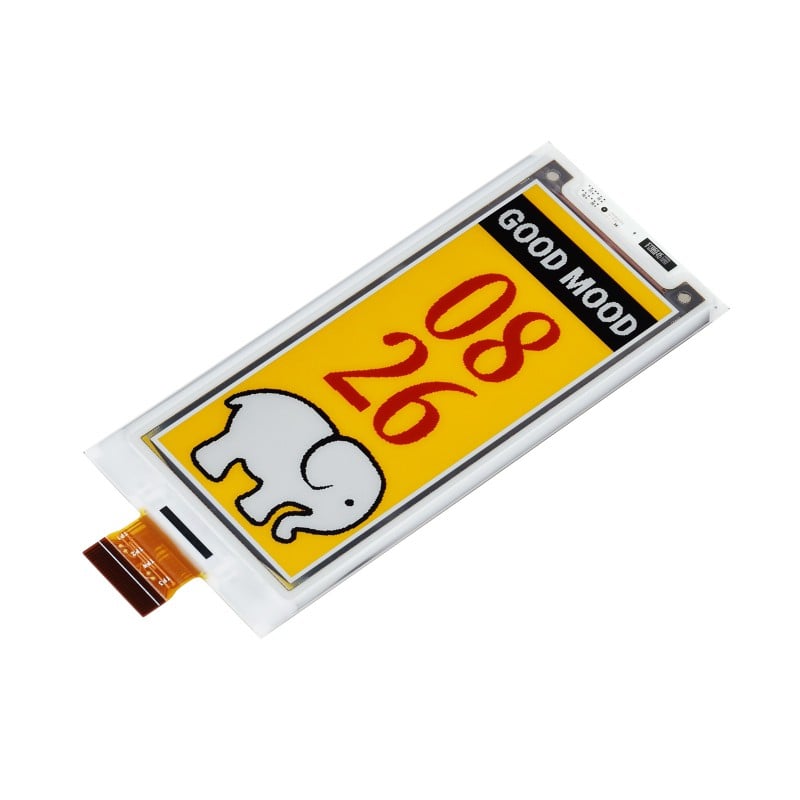

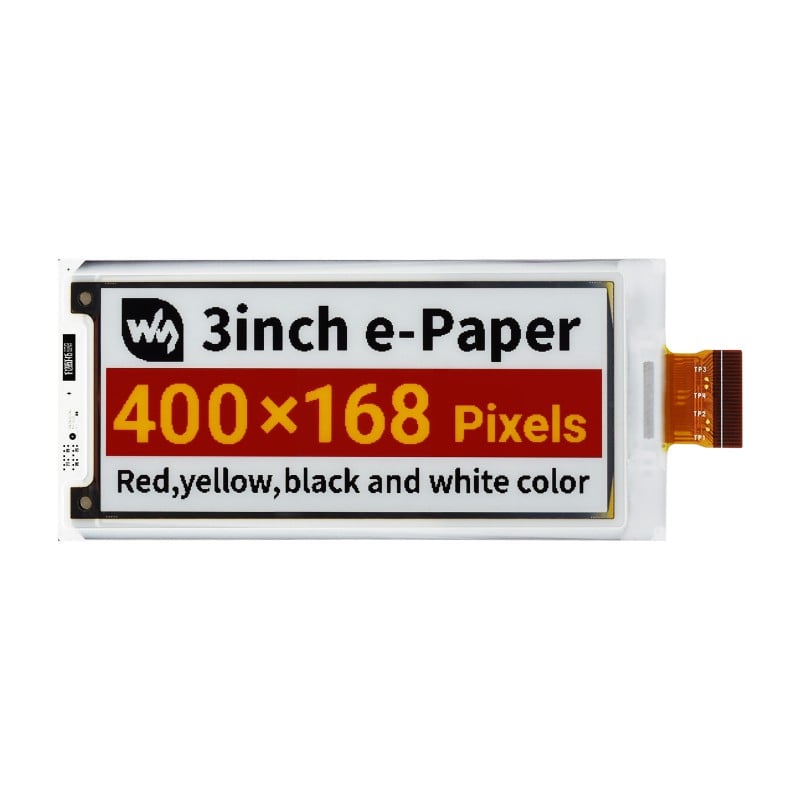

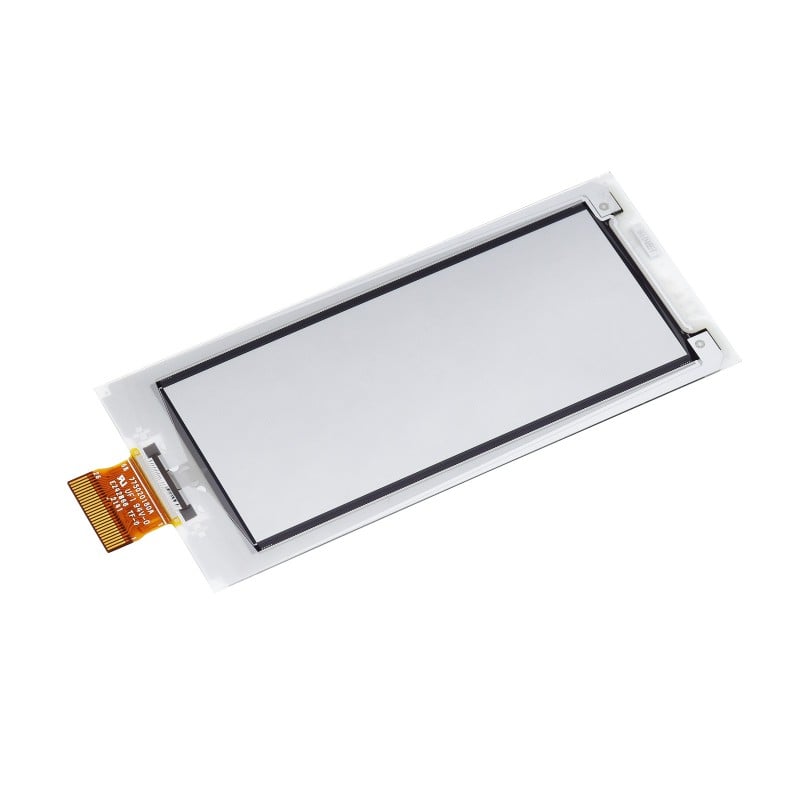

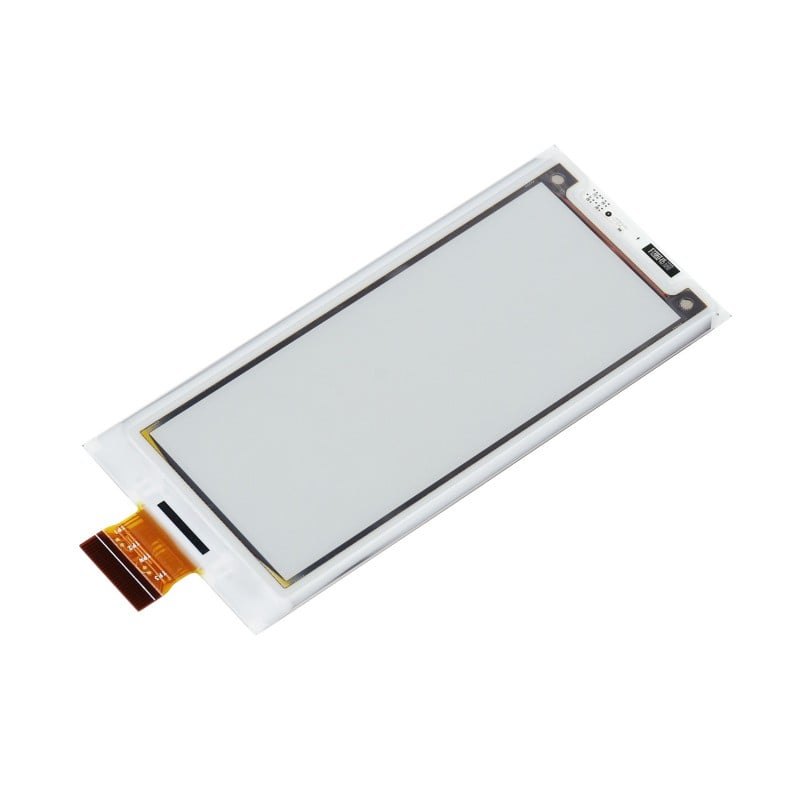

Waveshare 3inch e-Paper (G) raw display, 400 × 168, SPI Interface

Documentation and Interfacing of 3inch e-Paper Module with controller

14 People watching this product now!

SKU: rz24310466 Category: e-Ink Display

Description

3inch E-Paper (G) Raw Display, 400 × 168, SPI Interface. E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in the clear fluid will move to the sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light requires no backlight and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags…

Useful link:

Features:

No backlight keeps displaying last content for a long time even when power down
Ultra-low power consumption, basically power is only required for refreshing
Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications:

Operating Voltage: 3.3V
Display Color: Red/Yellow/Black/White
Interface: 3-wire SPI, 4-wire SPI
Grey Scale: 2
Outline Dimensions: 86.4 × 39.2 × 0.85mm
Full Refresh Time: 12s
Display Size: 70.4 × 29.568mm
Refresh Power: <60mW (typ.)
Dot Pitch: 0.176 × 0.176mm
Standby Current: <0.01uA (almost none)
Resolution: 400×168 pixels
Viewing Angle: >170°

Package Includes:

1 x 3inch e-Paper (G) x1
