₹11,031.05 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹10,479.49 (Including tax) |
11 - 20 | 8% | ₹10,148.56 (Including tax) |
21 - 40 | 10% | ₹9,927.96 (Including tax) |
41 - 100 | 12% | ₹9,707.33 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

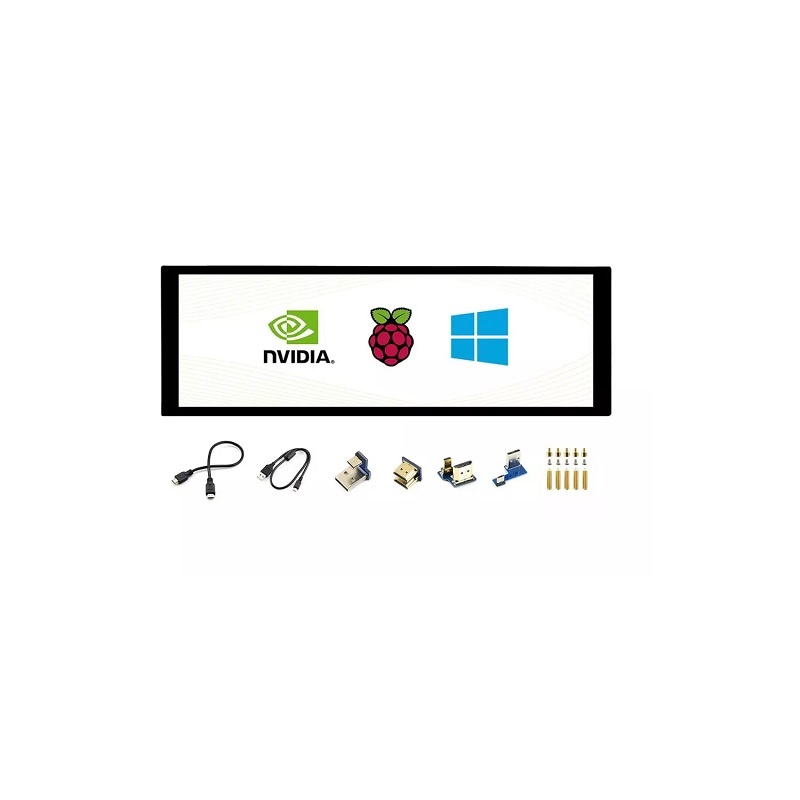

This is a Waveshare 7.9inch 400×1280 HDMI, IPS Capacitive Touch Screen LCD With Toughened Glass Cover. The 7.9inch Capacitive Touch Screen LCD, IPS screen, Toughened Glass Cover, which supports Raspberry Pi and can also be used as a computer monitor.
1 x Waveshare 7.9inch 400×1280 HDMI, IPS Capacitive Touch Screen LCD With Toughened Glass Cover
Display Type |
LCD |
---|---|
Touch Type |
Capacitive |
Touch Point |
5 |
Display Resolution |
400×1280 |
Viewing Angle |
170° |
Display Layout Size (L x W x H) mm |
210 x 70 x 17 |
Net weight (gm) |
204 |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
Out of stock
Out of stock
Product Type |
IPS ,HMI display |
---|---|
Brand |
Dwin |
T5L1 ASIC |
Developed by DWIN. Mass production in 2019 ,1MBytes Nor Flash on the chip ,512KBytes used to store the user database. Rewrite cycle: over 100 ,000 times |
Color |
18-bit 6R6G6B |
LCD Type |
TN ,TFT LCD |
Viewing Angle |
Normal viewing angle ,70°/70°/50°/70° (L/R/U/D) |
Display Area |
36.7mm (W)×49.0mm (H) |
Resolution |
320×240 pixels (0°/90°/180°/270°) |
Backlight |
LED |
Brightness |
DMG32240C024_03WN: 300nit DMG32240C024_03WTR: 240nit DMG32240C024_03WTC: 270nit |
Touch Type |
RTP (Resistive touch panel) |
Structure |
ITO film + ITO glass |
Touch Mode |
Support point touch and drag |
Surface Hardness |
3H |
Light Transmittance |
Over 80% |
Life |
Over 1 ,000 ,000 times touch |
Power Voltage |
4.5~5.5V ,typical value of 5V |
Operating Current |
VCC=5V ,max backlight ,240mA VCC=5V ,backlight off ,110mA |
Working temperature |
-20~70℃ |
Flash |
16MBytes NOR Flash ,for fonts ,pictures and audio files. Rewrite cycle: over 100 ,000 times |
User Interface |
10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s UART2: TTL/CMOS; UART4: TTL/CMOS;(Only available after OS configuration) |
baud rate |
3150~3225600bps ,typical value of 115200bps |
Out of stock
Out of stock
Model |
NX4827P043-011C-Y |
---|---|
Operating Voltage |
5 V |
Operating Current |
220 mA |
FLASH Memory |
120 MB |
RAM Memory |
512 KB |
Serial Port Mode |
3.3V/5.0V TTL |
Touch type |
Capacitive |
Touches |
> 1 million |
Backlight lifetime |
>30 ,000 Hours |
Brightness |
300nit |
Operating Temperature Range (°C) |
-20 to 70 |
Length (mm) |
140 |
Width (mm) |
100 |
Height (mm) |
20 |
Weight (gm) |
185 |
Out of stock
Out of stock
Model |
NX8048P050_011R |
---|---|
Operating Voltage |
5 V |
Operating Current |
220 mA |
Touch type |
Resistive |
Touches |
> 1 million |
Backlight |
LED |
Brightness |
300nit |
Serial Port Mode |
3.3V/5.0V TTL |
FLASH Memory |
120 MB |
RAM Memory |
512 KB |
Working Temperature Range (°C) |
-20 to 70 |
Length (mm) |
138 |
Width (mm) |
85 |
Height (mm) |
12 |
Weight (gm) |
122 |
